Model # NUOD105FH01 Official ICP oil-fired upflow furnace

Here are the diagrams and repair parts for Official ICP NUOD105FH01 oil-fired upflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

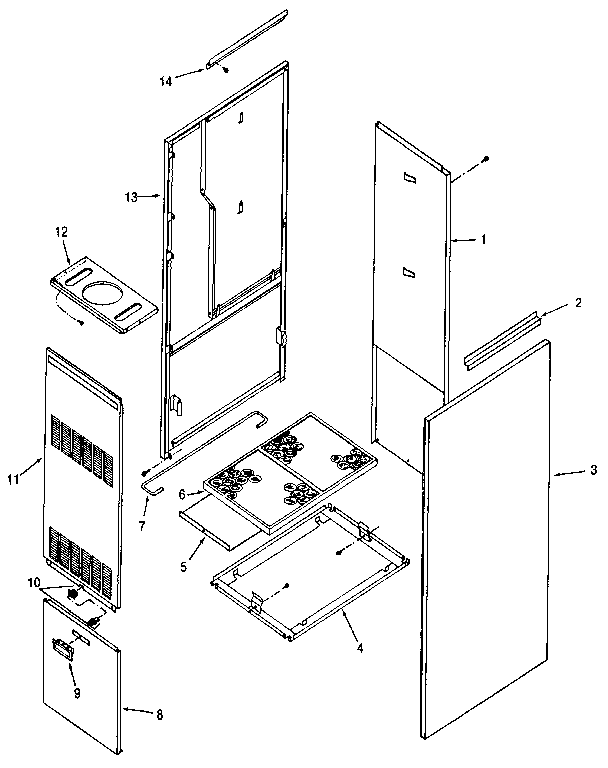

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Capacitor 87964
#7

Blower assembly diagram

Capacitor

Part #87964

Replaced by #12910

?
Manufacturer substitution
This part replaces 87964. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Gasket 1007882
#4

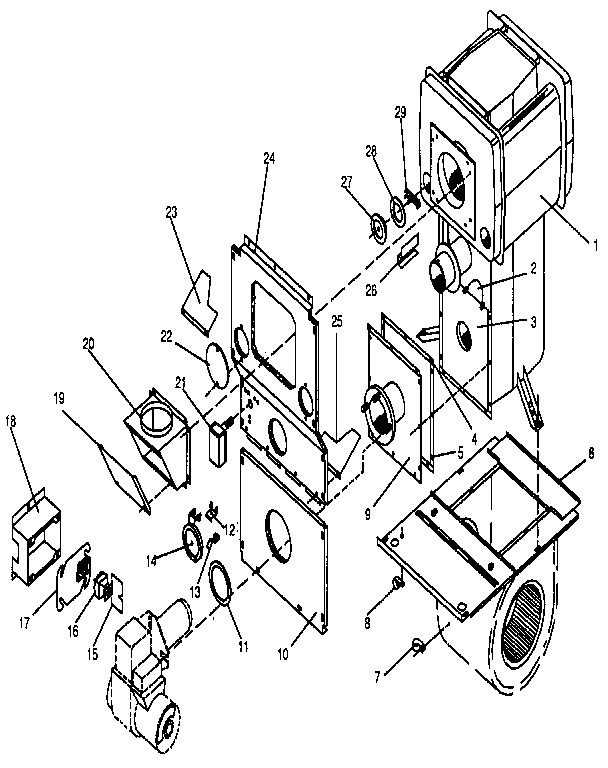

Heat exchange diagram

Gasket

Part #1007882

$93.62
In Stock
Blower Wheel 1150448
#6

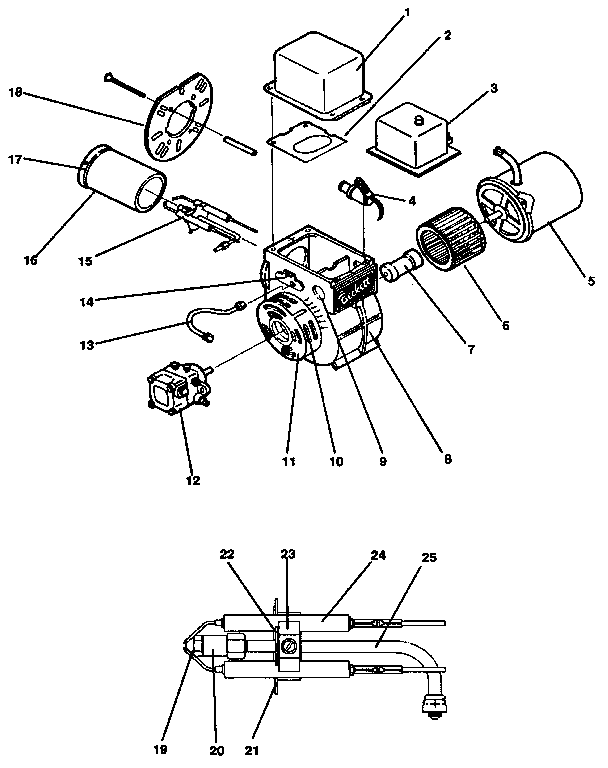

Burner assembly diagram

Blower wheel

Part #1150448

$74.96
In Stock
Furnace Blower Fan Wheel 601211
#1

Blower assembly diagram

Furnace blower fan wheel

Part #601211

$267.89
In Stock
Nozzle Oil 1008077
#19

Burner assembly diagram

Nozzle oil

Part #1008077

The manufacturer no longer makes this part, and there's no substitute part

Grommet 609194
#3

Blower assembly diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
Primary Rela 612454
#3

Burner assembly diagram

Primary rela

Part #612454

Replaced by #R8184M1051

?
Manufacturer substitution
This part replaces 612454. Substitute parts can look different from the original.
$393.58
In Stock
Comb Chamber 606639
#3

Heat exchange diagram

Comb chamber

Part #606639

Replaced by #1007852

?
Manufacturer substitution
This part replaces 606639. Substitute parts can look different from the original.
$426.37
In Stock
Dpdt Relay 96467
#16

Heat exchange diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Cover 68765
#27

Heat exchange diagram

Cover

Part #68765

The manufacturer no longer makes this part, and there's no substitute part
