Model # DSC-T90L Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-T90L digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Sy-226 Pcb A1704426A
#51

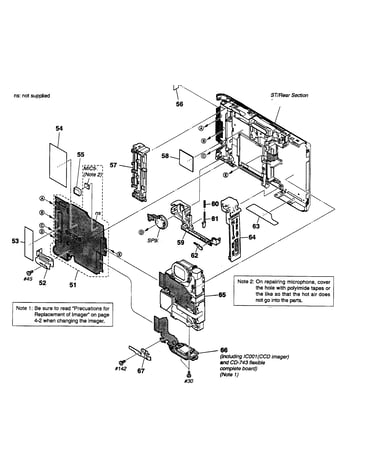

Maine assy diagram

Sy-226 pcb

Part #A1704426A

$154.00
In Stock
Light Guide 411138201
#62

Maine assy diagram

Light guide

Part #411138201

This item is not returnable
$6.36
In Stock
Spring 411136301
#107

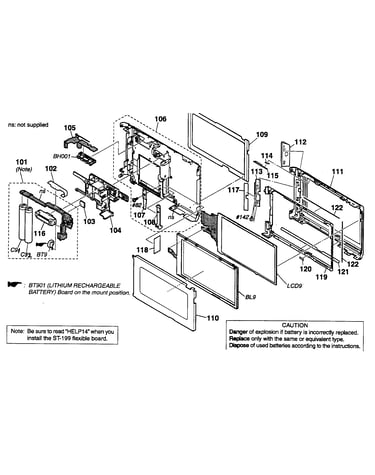

Lcd assy diagram

Spring

Part #411136301

$22.31
In Stock
Terminal 178065111
#BH1

Lcd assy diagram

Terminal

Part #178065111

$10.31
In Stock
Screw 327225101
#S82

Lcd assy diagram

Screw

Part #327225101

This item is not returnable
$2.65
In Stock
Holder 413842901
#104

Lcd assy diagram

Holder

Part #413842901

This item is not returnable
$6.36
In Stock
Screw 411139221
#S144

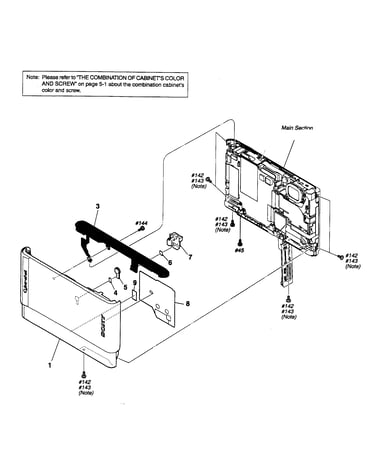

Overall assy diagram

Screw

Part #411139221

This item is not returnable
$2.30
In Stock
Flex Sheet 412540601
#9

Overall assy diagram

Flex sheet

Part #412540601

This item is not returnable
$2.30
In Stock
Transistor 655192201
#NI

Overall assy diagram

Transistor

Part #655192201

$17.26
In Stock
Claw 411136202
#108

Lcd assy diagram

Claw

Part #411136202

$22.31
In Stock
