Lawn & Garden Engine

Model # 143629022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143629022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Gasket 27110
#20

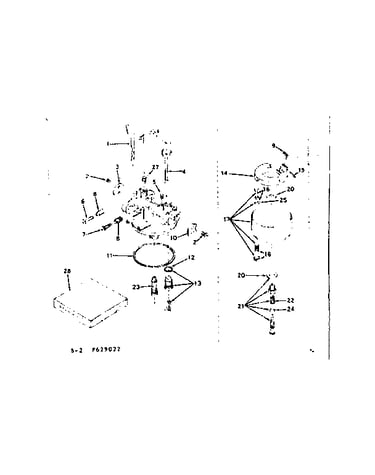

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#74

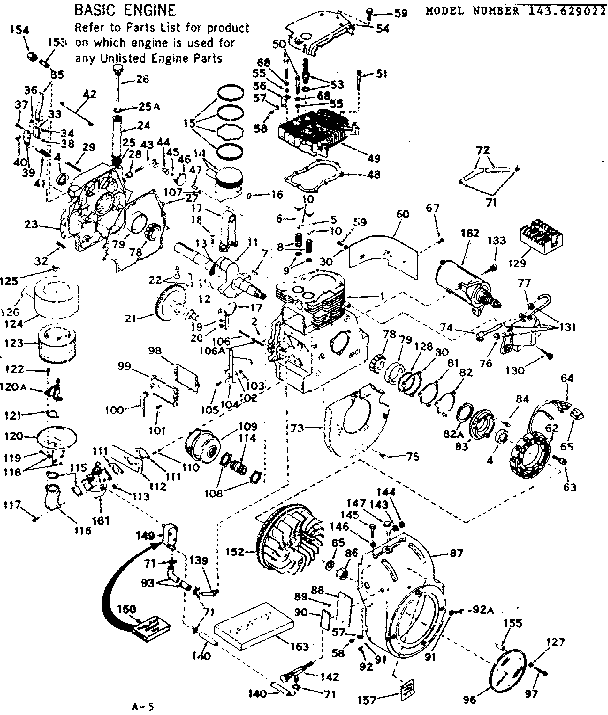

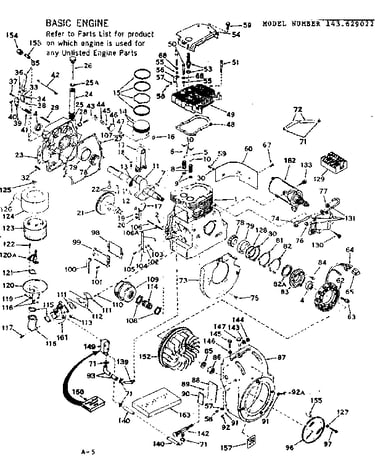

Basic engine diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#100

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Motor Strtr 32817
#162

Basic engine diagram

Motor strtr

Part #32817

The manufacturer no longer makes this part, and there's no substitute part

Armature 32833
#16

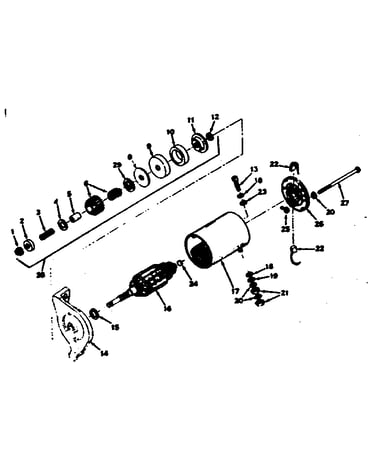

Unit parts diagram

Armature

Part #32833

The manufacturer no longer makes this part, and there's no substitute part

Screw 650597
#105

Basic engine diagram

Screw

Part #650597

The manufacturer no longer makes this part, and there's no substitute part

Spring 31503
#9

Carburetor diagram

Spring

Part #31503

The manufacturer no longer makes this part, and there's no substitute part

Pump Kit 33010
#150

Basic engine diagram

Pump kit

Part #33010

The manufacturer no longer makes this part, and there's no substitute part

Hsg. Assem 32834
#17

Unit parts diagram

Hsg. assem

Part #32834

The manufacturer no longer makes this part, and there's no substitute part
