MTD
Gas Walk-Behind Mower

Model # 12A948J099 Official MTD lawn mower

Here are the diagrams and repair parts for Official MTD 12A948J099 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

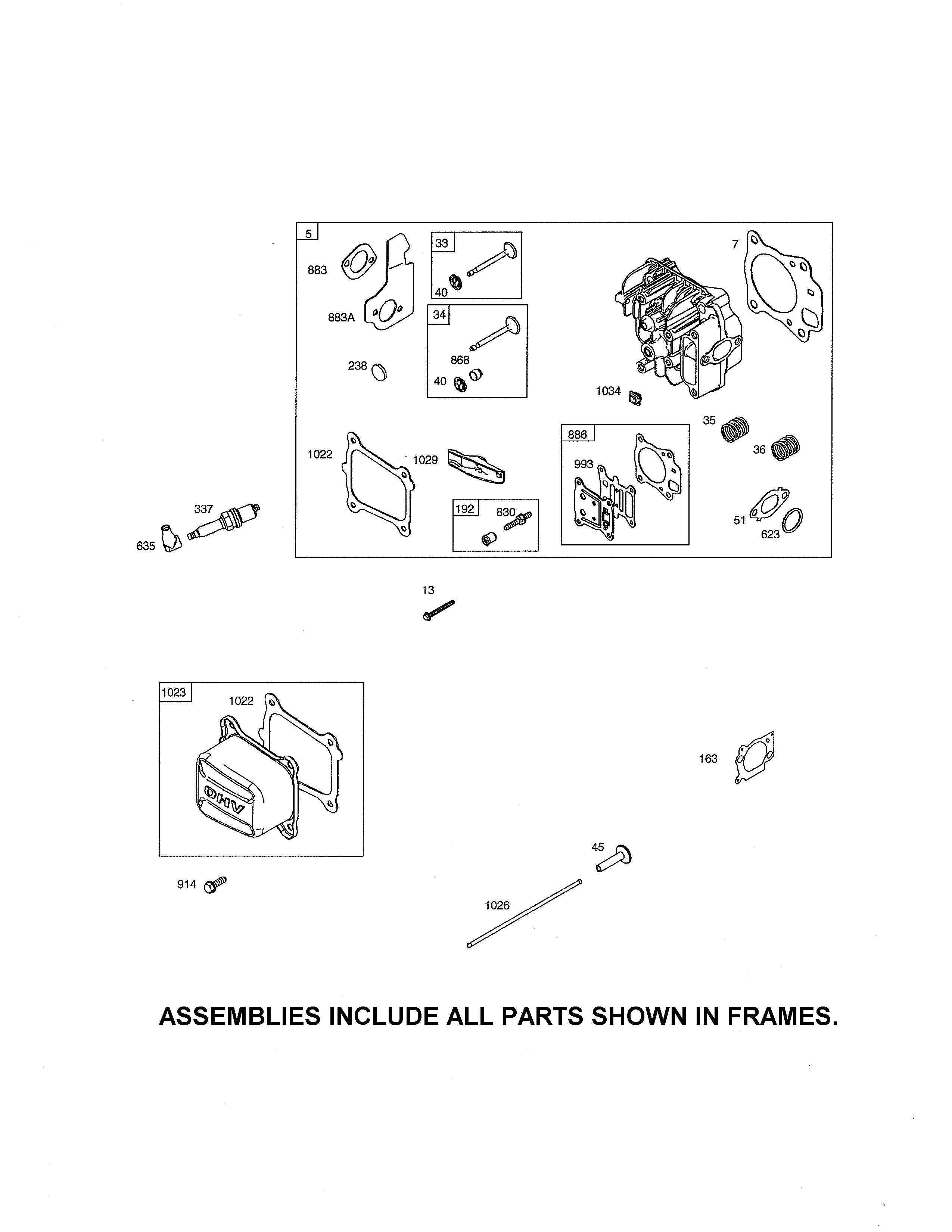

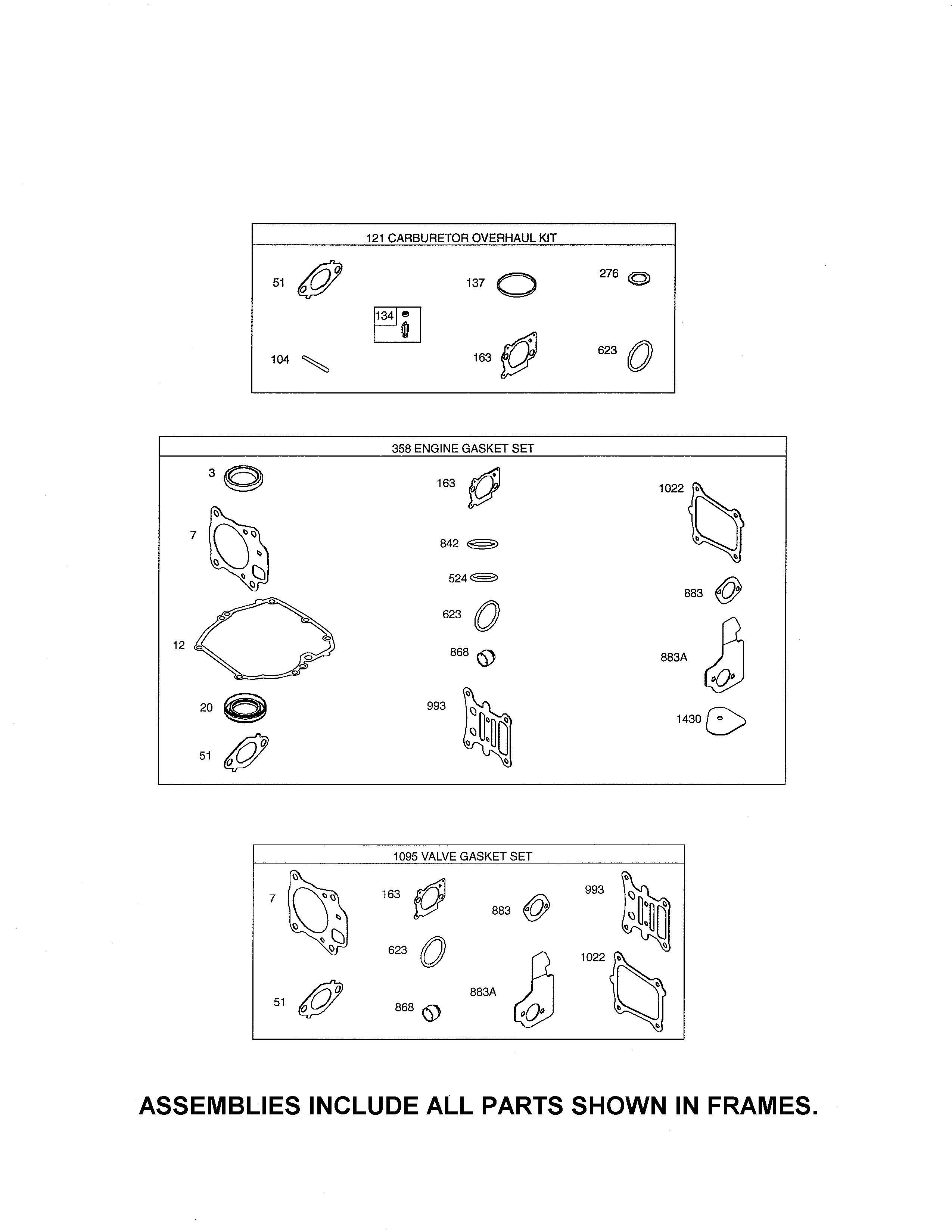

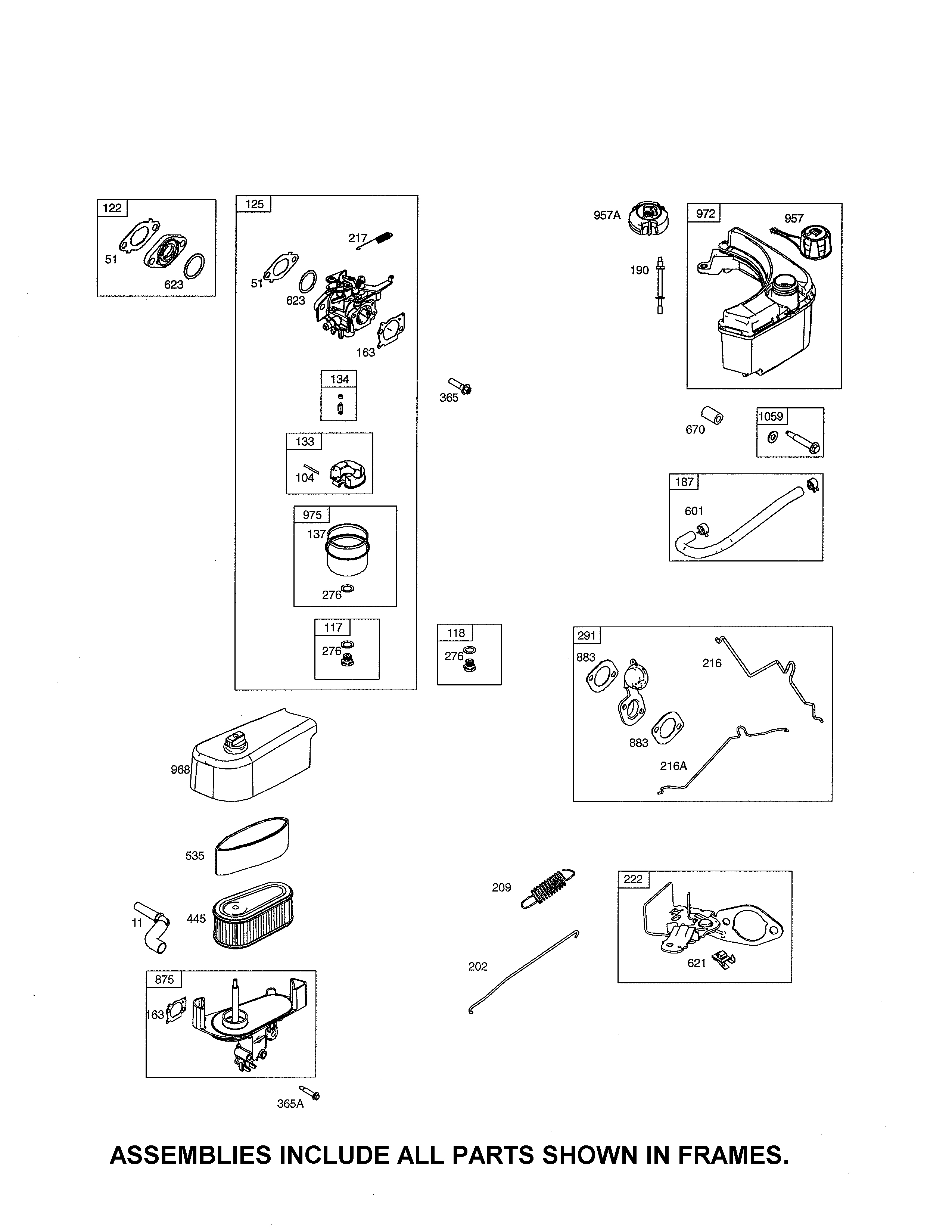

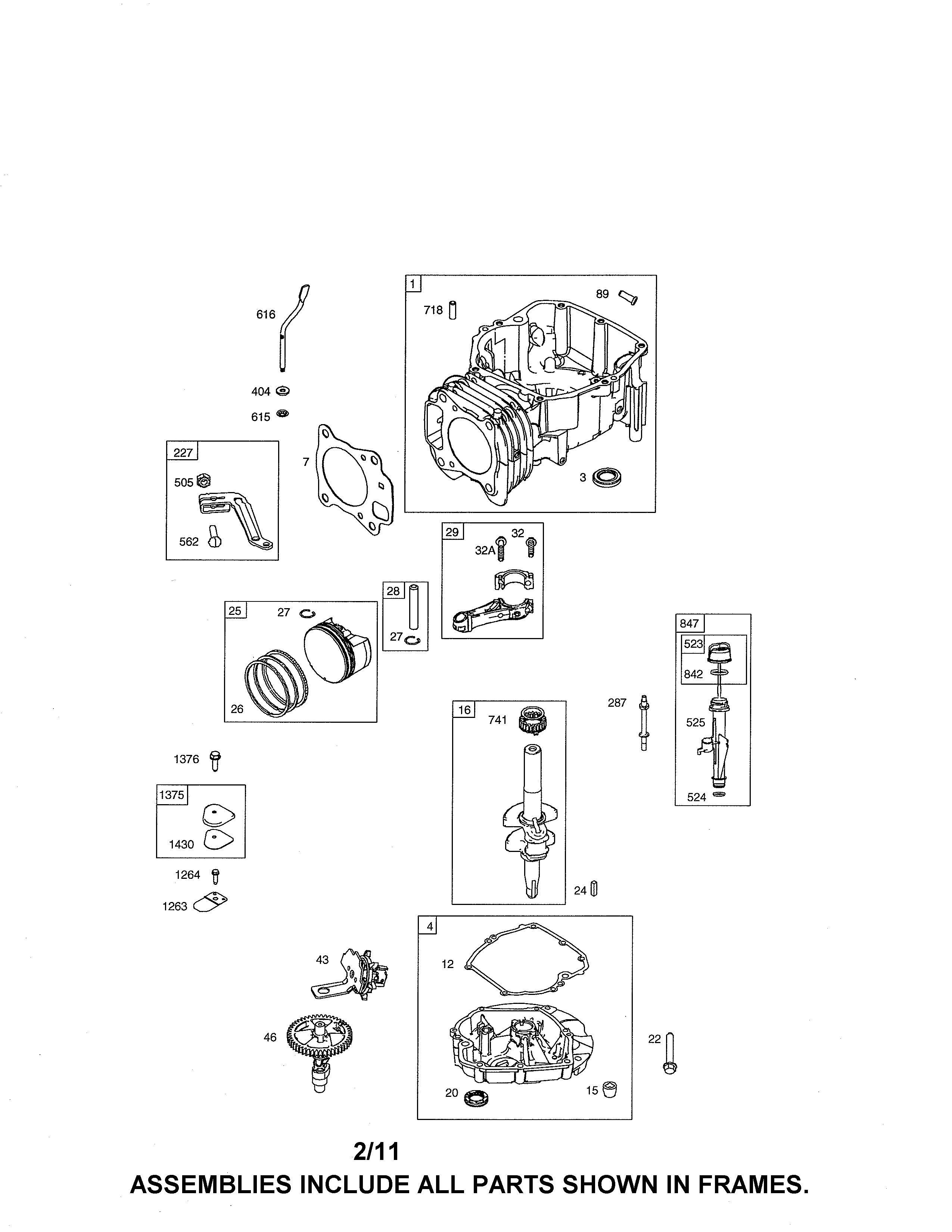

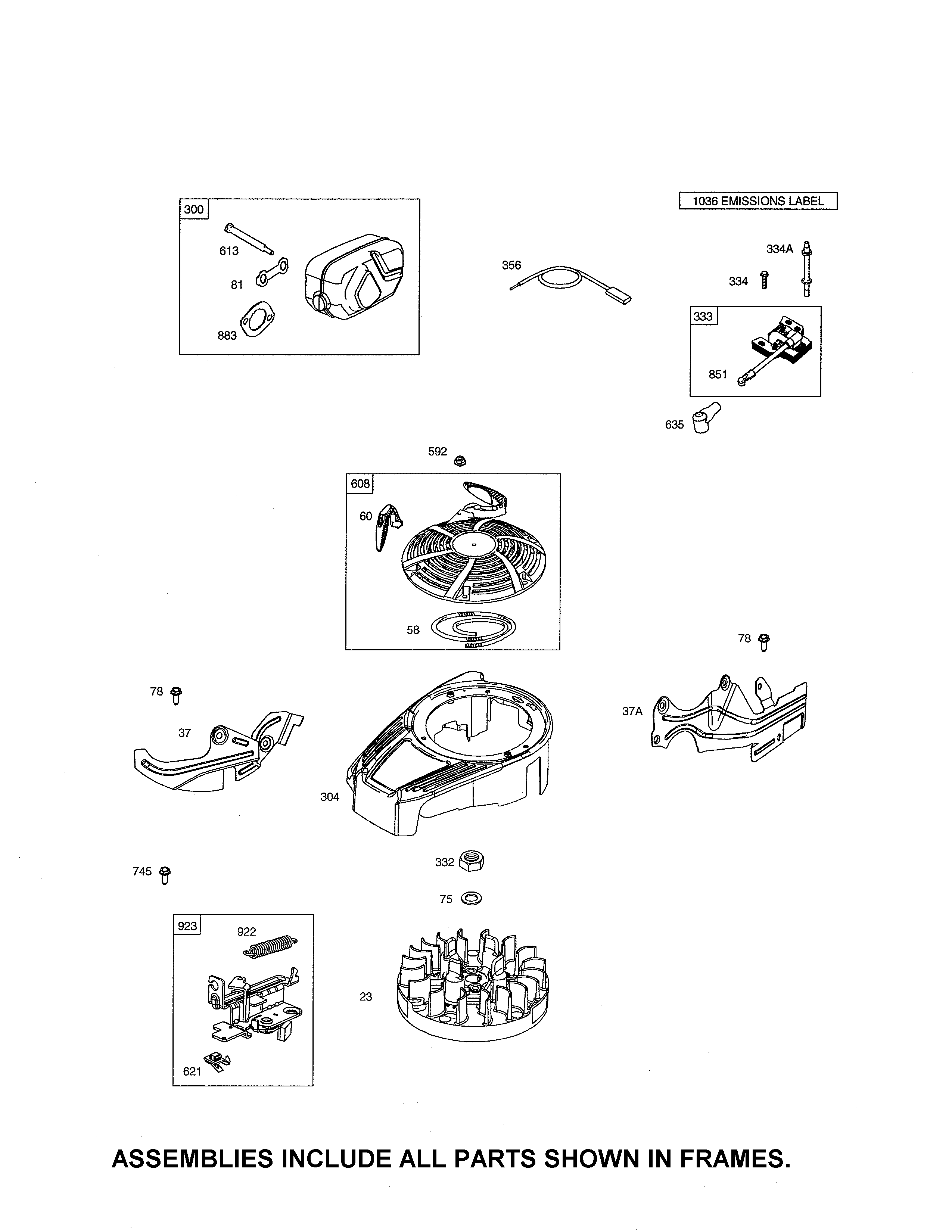

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
#3

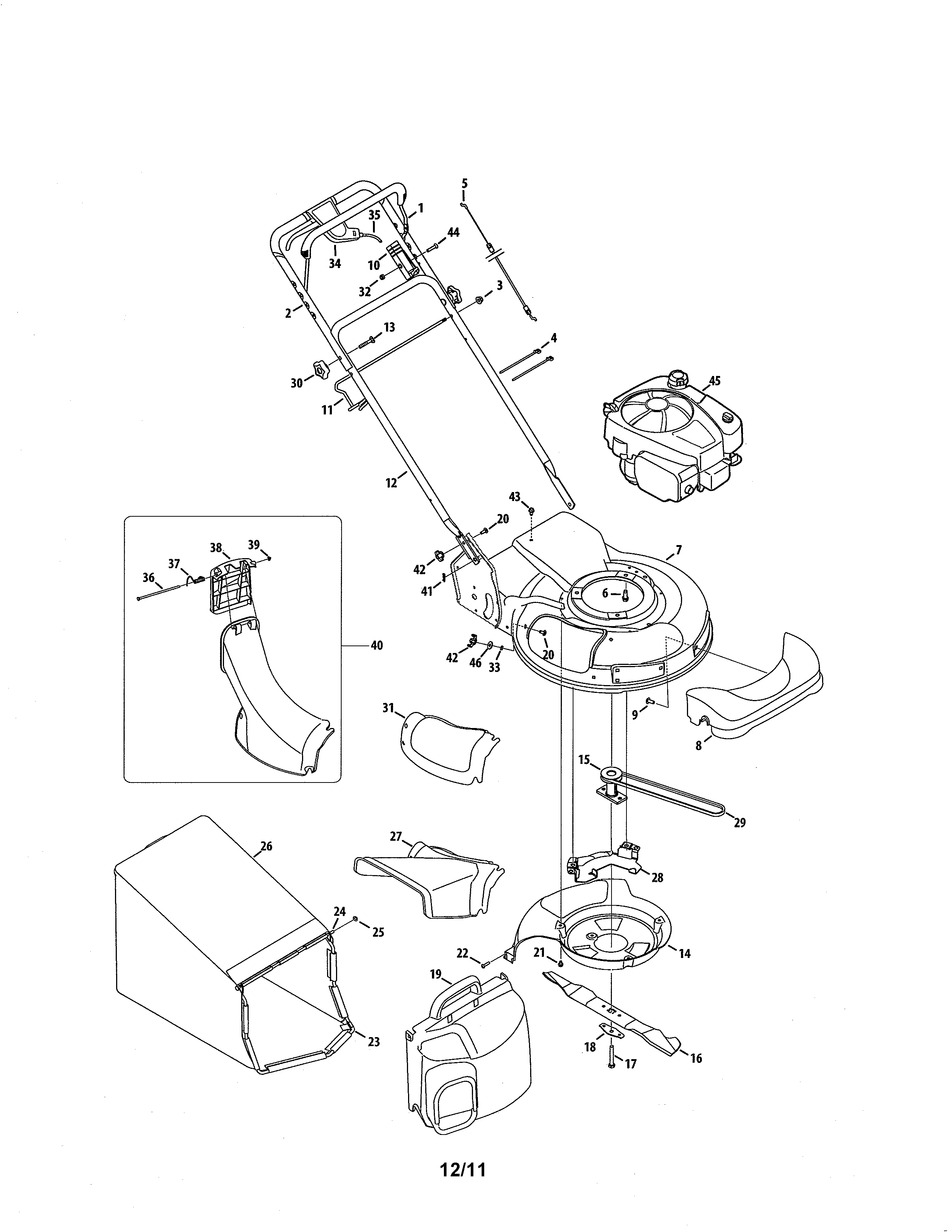

Handle/deck/chute diagram

Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Lawn Mower Blade Support (replaces 936-0524a) 736-0524B
#18

Handle/deck/chute diagram

Lawn mower blade support (replaces 936-0524a)

Part #736-0524B

Replaced by #736-0524B-1

?
Manufacturer substitution
This part replaces 736-0524B. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$6.58 |
13% OFF Phone Price : $7.58
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
#35

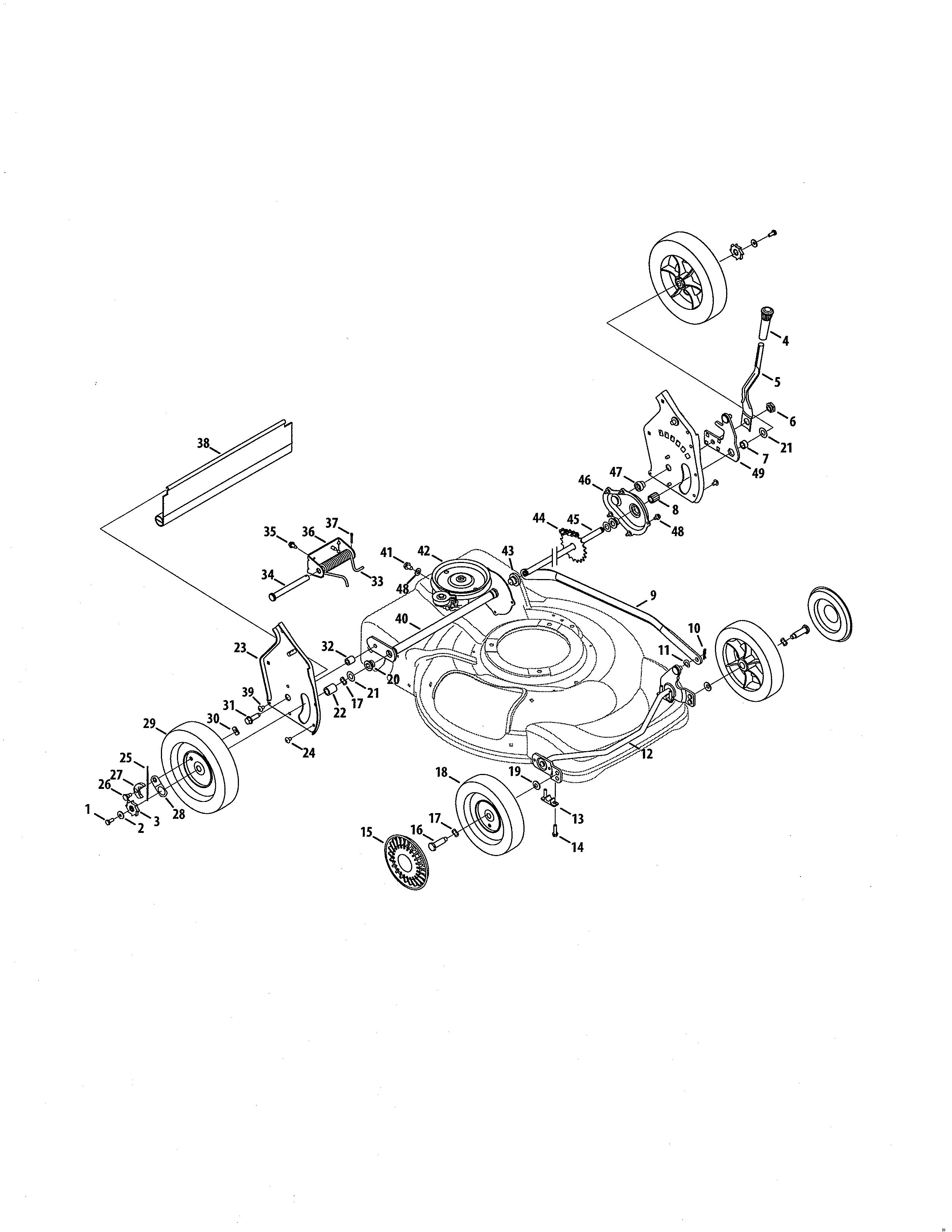

Drive diagram

Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Hex Head Screw 710-0895
#22

Handle/deck/chute diagram

Lawn & garden equipment hex head screw

Part #710-0895

$8.20 |
11% OFF Phone Price : $9.20
In Stock
Lawn & Garden Equipment Carriage Bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213) 710-0703
#20

Handle/deck/chute diagram

Lawn & garden equipment carriage bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213)

Part #710-0703

This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
Lawn Mower Wheel, Rear (replaces 734-2010a) 734-2010B
#29

Drive diagram

Lawn mower wheel, rear (replaces 734-2010a)

Part #734-2010B

$61.70 |
9% OFF Phone Price : $67.70
In Stock
Lawn Mower Zone Control Cable (replaces 746-0711a, 746-0711b) 946-0711B
#35

Handle/deck/chute diagram

Lawn mower zone control cable (replaces 746-0711a, 746-0711b)

Part #946-0711B

$32.85 |
15% OFF Phone Price : $38.85
In Stock
Lawn Mower Ground Drive Belt (replaces 754-0460) 954-0460
#29

Handle/deck/chute diagram

Lawn mower ground drive belt (replaces 754-0460)

Part #954-0460

This item is not returnable

Get free shipping with Automatic Reorder

$23.49 |
20% OFF Phone Price : $29.49
In Stock
Lawn & Garden Equipment Hex Bolt (replaces 01000943, 910-1257) 710-1257
#17

Handle/deck/chute diagram

Lawn & garden equipment hex bolt (replaces 01000943, 910-1257)

Part #710-1257

This item is not returnable
$9.85 |
9% OFF Phone Price : $10.85
In Stock
Lawn & Garden Equipment Cotter Pin 914-0474
#37

Drive diagram

Lawn & garden equipment cotter pin

Part #914-0474

Replaced by #714-0474

?
Manufacturer substitution
This part replaces 914-0474. Substitute parts can look different from the original.
$8.09
In Stock
