Model # N9MSE0401410A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP N9MSE0401410A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

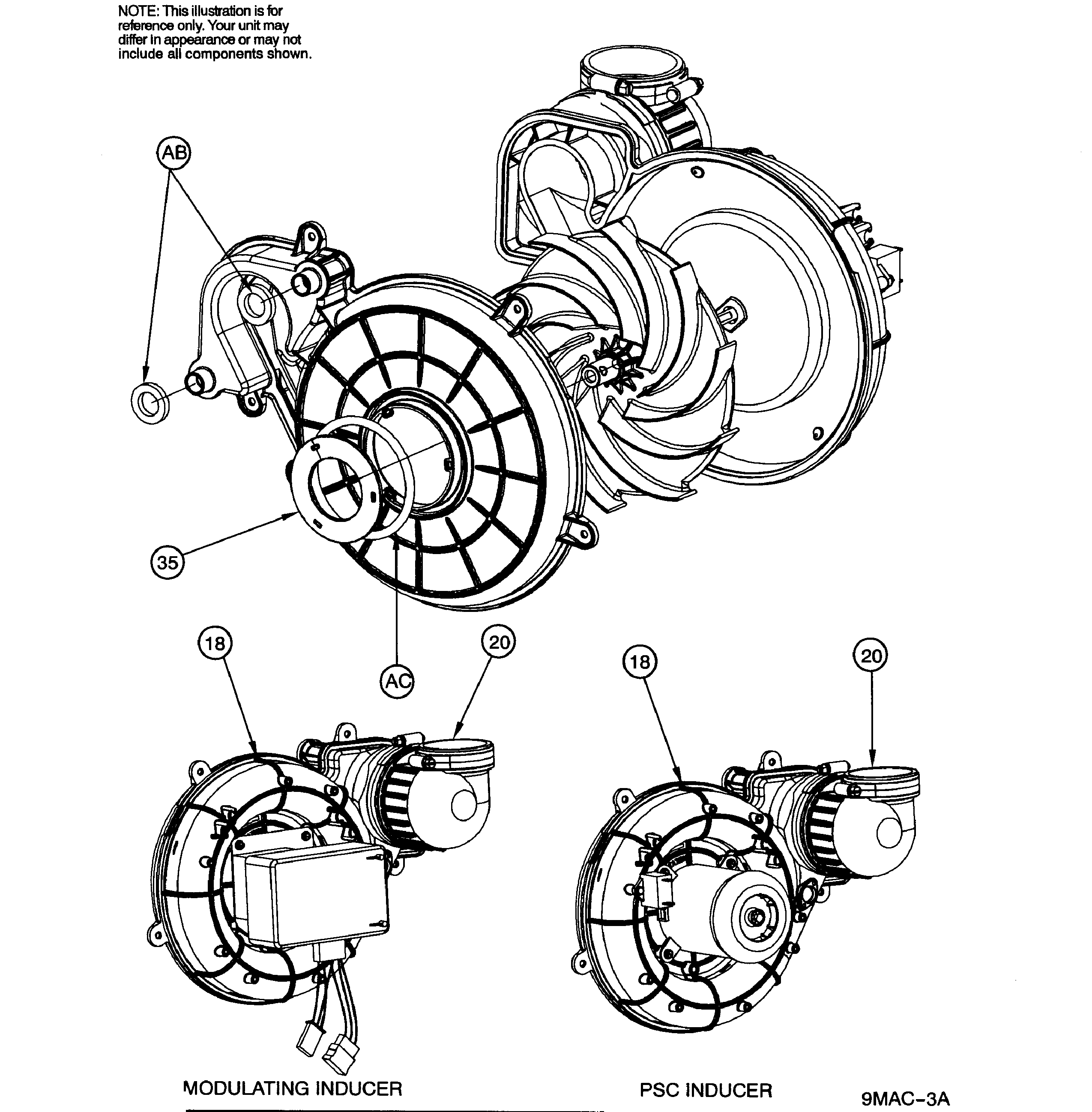

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Furnace Burner Igniter 1176919
#12

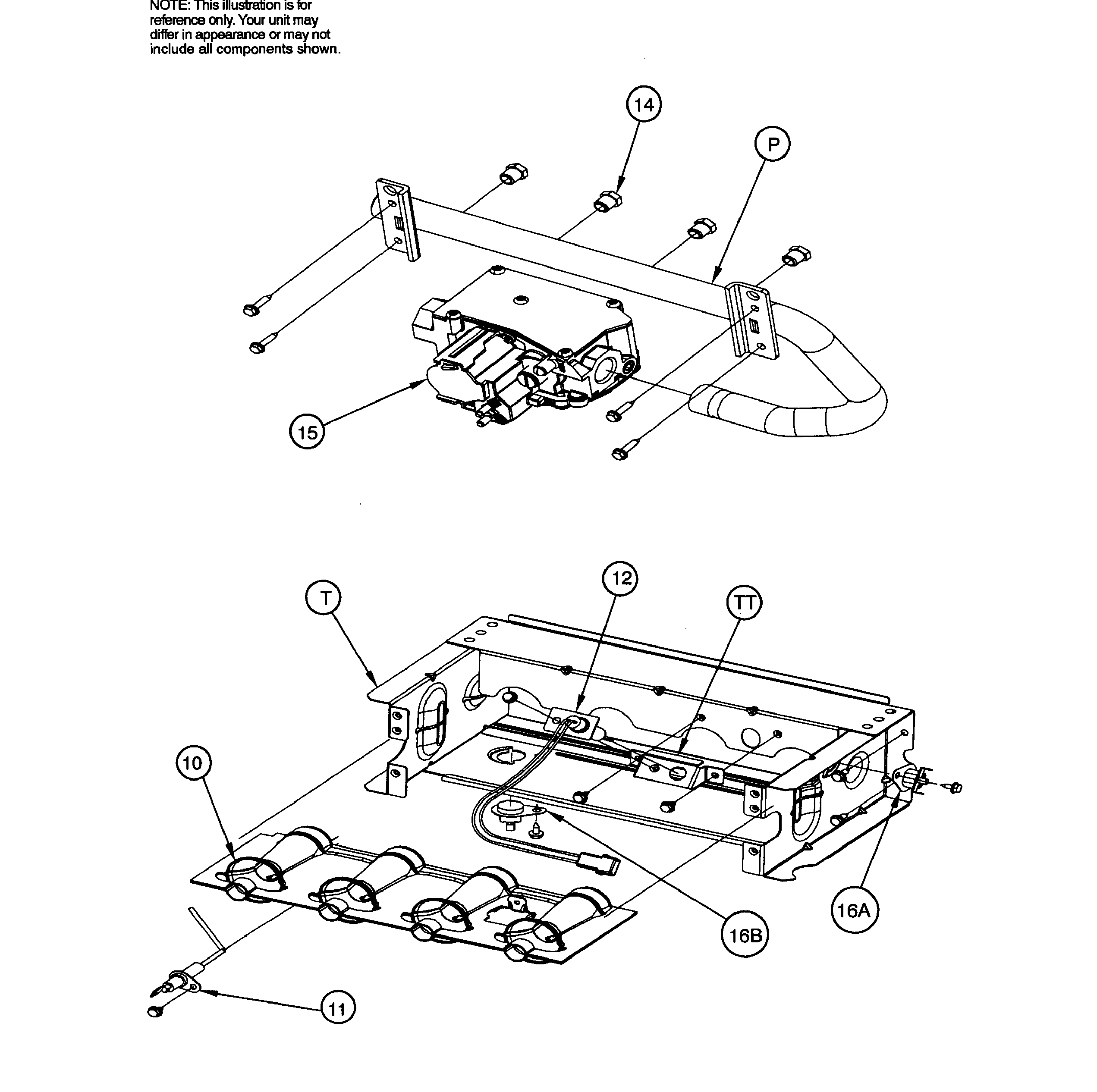

Burner assy diagram

Furnace burner igniter

Part #1176919

$62.36
In Stock
Switch Pre 1184413
#26

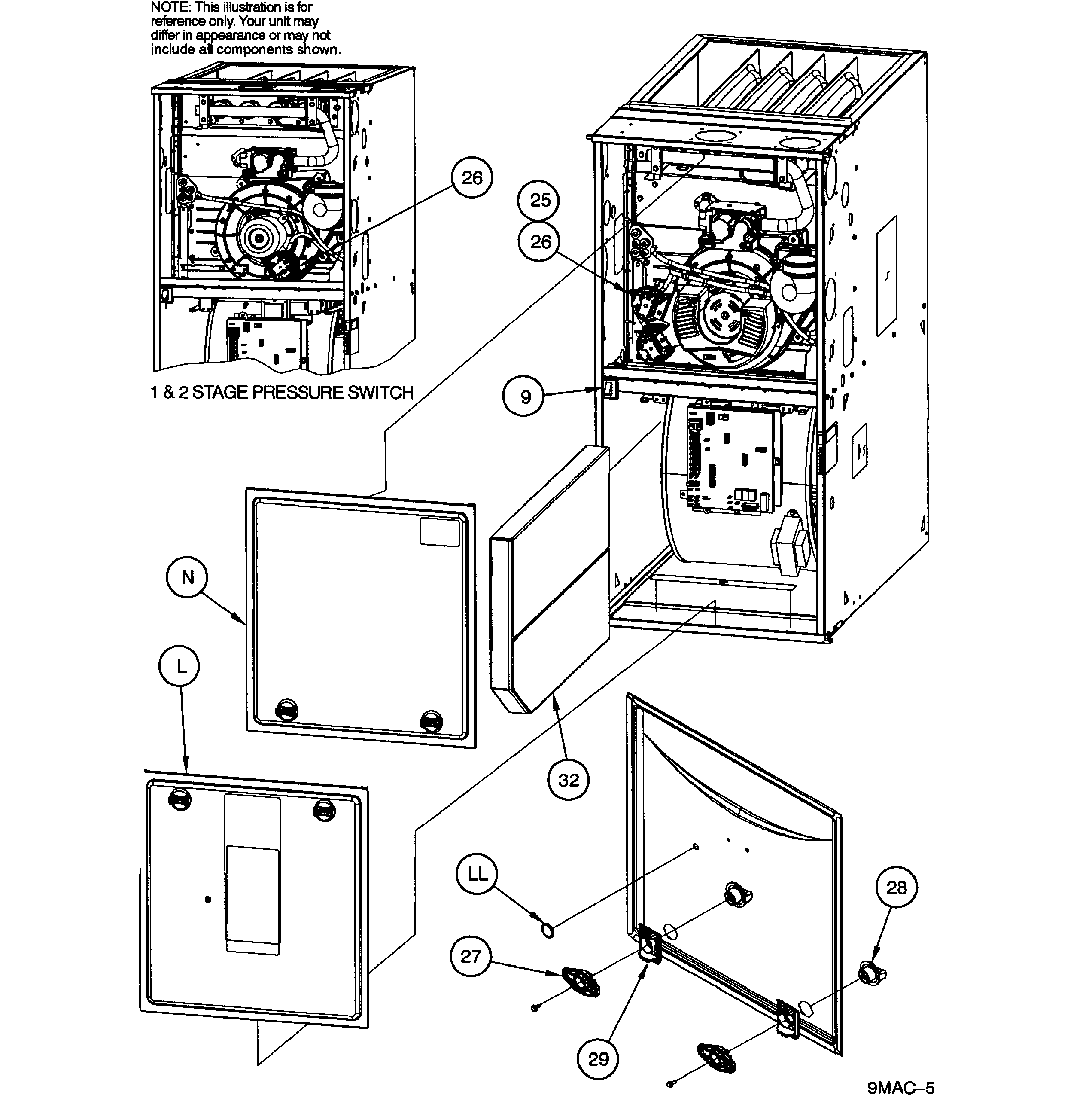

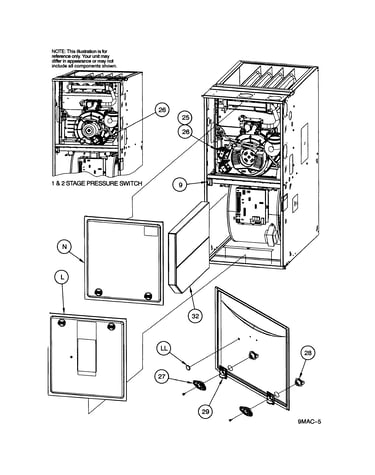

Doors assy diagram

Switch pre

Part #1184413

$74.60
In Stock
Transformer 1177217
#7

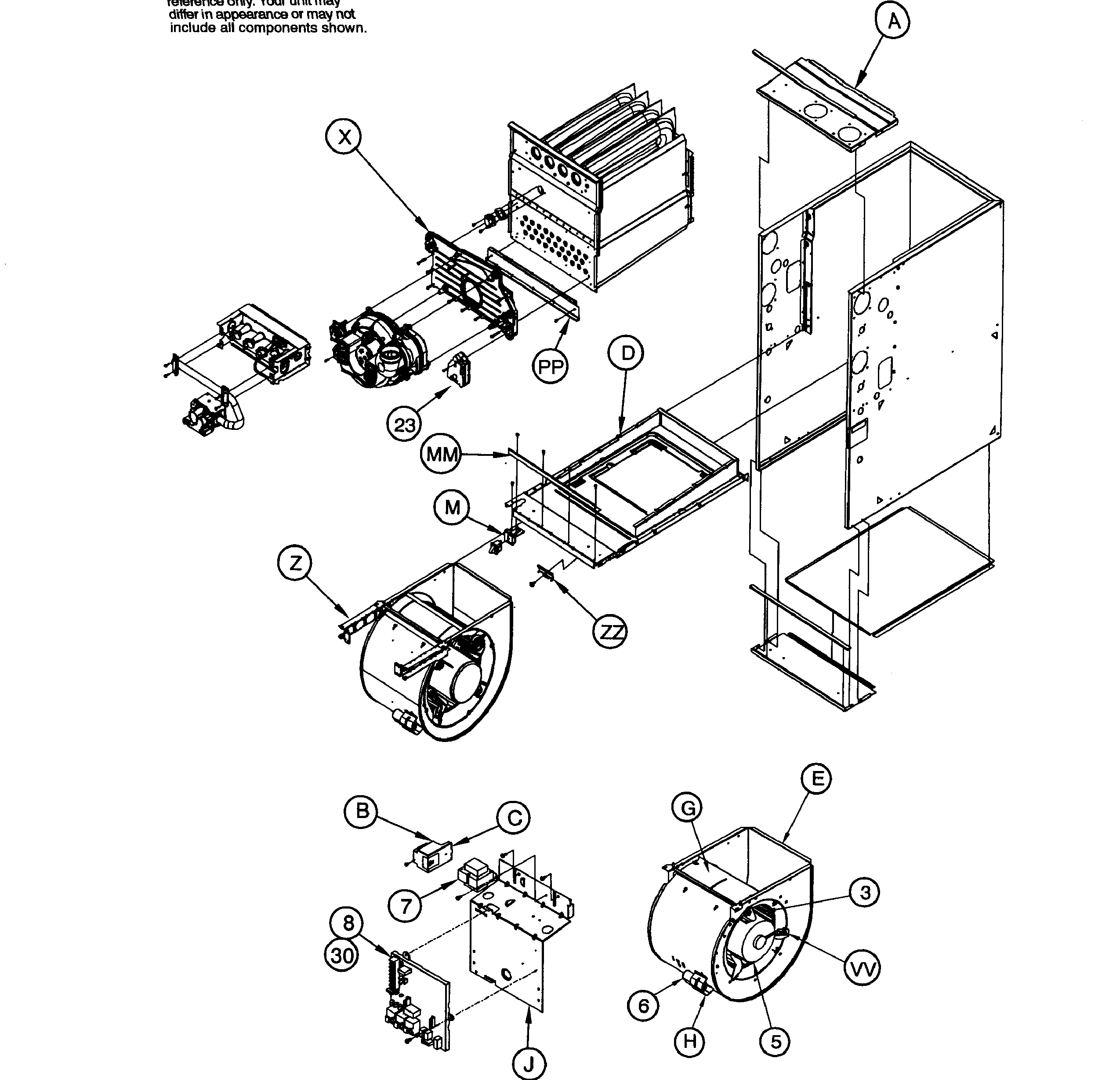

Main assy diagram

Transformer

Part #1177217

The manufacturer no longer makes this part, and there's no substitute part

Bracket Ig 1184324
#TT

Burner assy diagram

Bracket ig

Part #1184324

This item is not returnable
$2.16
In Stock
Plate Assembly 1185575
#A

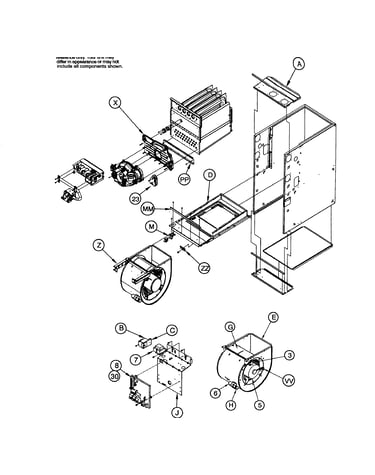

Main assy diagram

Plate assembly

Part #1185575

$82.13
In Stock
Trap Assembly 1184288
#23

Main assy diagram

Trap assembly

Part #1184288

$34.30 |
15% OFF Phone Price : $40.30
In Stock
Switch Mai 1184423
#17

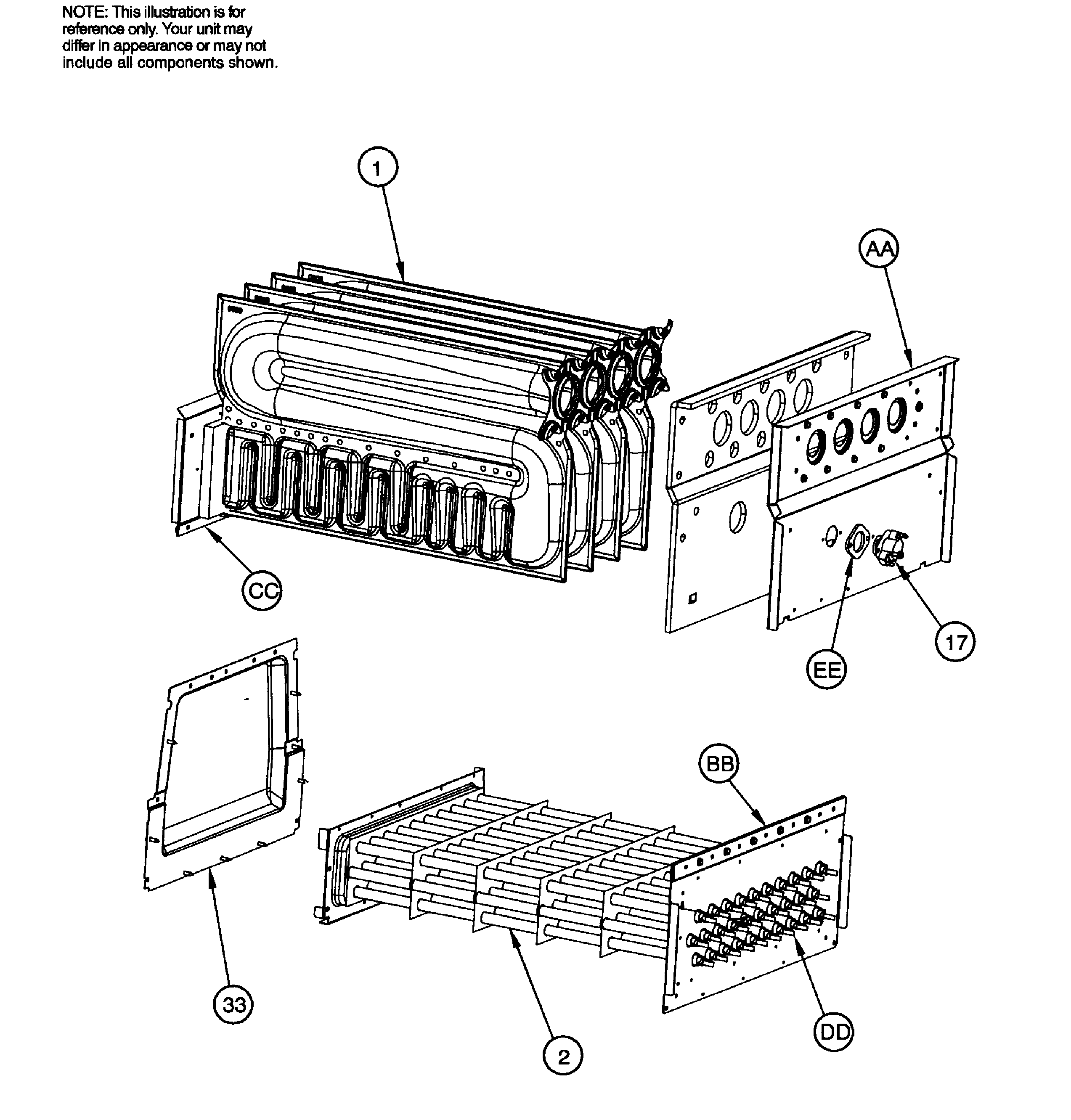

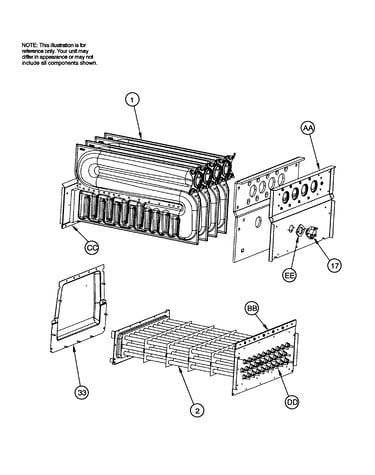

Heat exchange diagram

Switch mai

Part #1184423

$24.62
In Stock
Gasket Col 1185567
#XX

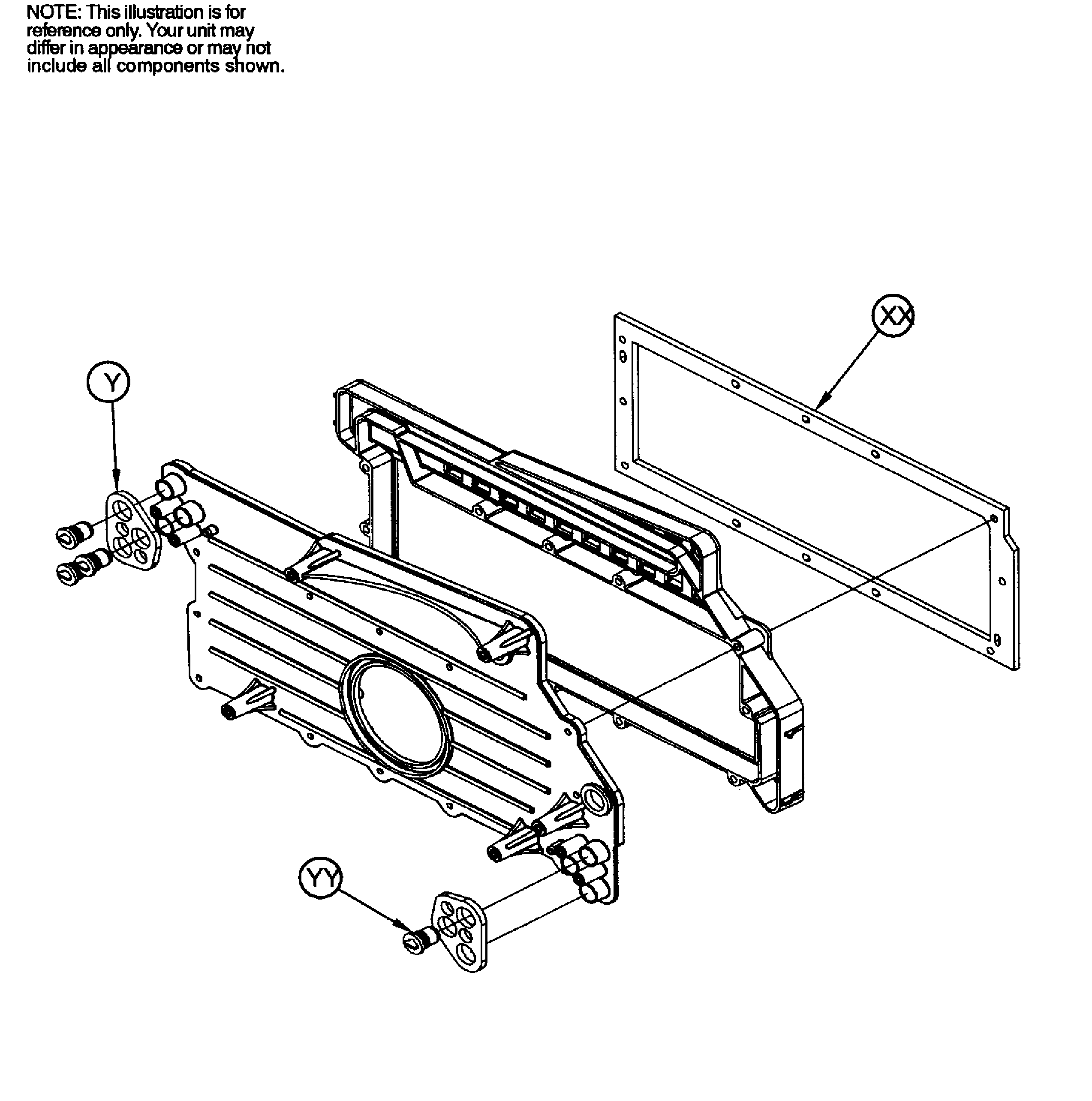

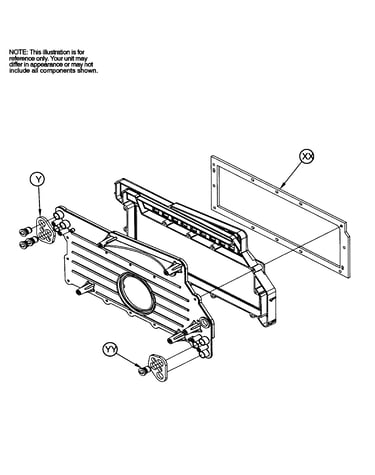

Collector box diagram

Gasket col

Part #1185567

$32.71
In Stock
Manifold 1184390
#P

Burner assy diagram

Manifold

Part #1184390

$58.07
In Stock
Bracket 1183472
#J

Main assy diagram

Bracket

Part #1183472

$51.22
In Stock
