Model # CA5548VKCI Official ICP central air conditioner

Here are the diagrams and repair parts for Official ICP CA5548VKCI central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Mtr Cnd 1064958
#2

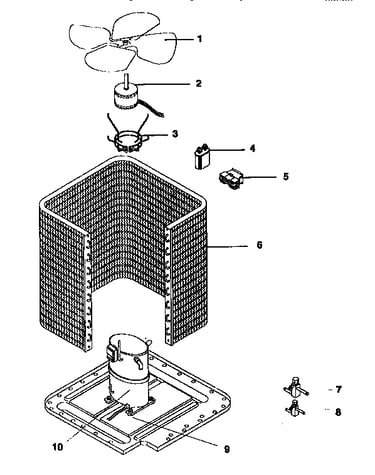

Functional replacement diagram

Mtr cnd

Part #1064958

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 1064958. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Central Air Conditioner Condenser Fan Motor Mount 1051460
#3

Functional replacement diagram

Central air conditioner condenser fan motor mount

Part #1051460

$310.20
In Stock
Cap Rnrdv+ 1094980
#4

Functional replacement diagram

Cap rnrdv+

Part #1094980

Replaced by #STD378405

?
Manufacturer substitution
This part replaces 1094980. Substitute parts can look different from the original.
$63.93
In Stock
Valve Servic 1063698
#8

Functional replacement diagram

Valve servic

Part #1063698

The manufacturer no longer makes this part, and there's no substitute part

Contactor 1050839
#5

Functional replacement diagram

Contactor

Part #1050839

Replaced by #94-394

?
Manufacturer substitution
This part replaces 1050839. Substitute parts can look different from the original.
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Timer 1060410

#NI

All parts diagram

Timer

Part #1060410

The manufacturer no longer makes this part, and there's no substitute part

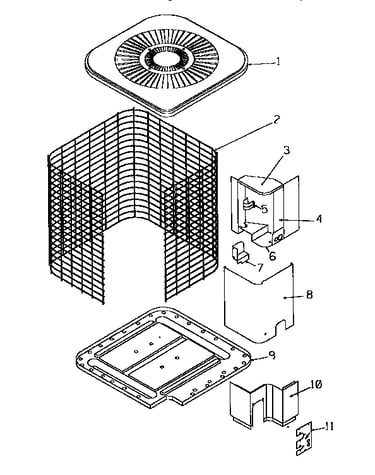

Corner Panel 1052711
#10

Non-functional replacement diagram

Corner panel

Part #1052711

The manufacturer no longer makes this part, and there's no substitute part

Clamp Capaci 1095021
#5

Non-functional replacement diagram

Clamp capaci

Part #1095021

The manufacturer no longer makes this part, and there's no substitute part

Defrost Control 1069304

#NI

All parts diagram

Defrost control

Part #1069304

The manufacturer no longer makes this part, and there's no substitute part

C-box Cover 1052702
#8

Non-functional replacement diagram

C-box cover

Part #1052702

The manufacturer no longer makes this part, and there's no substitute part
