Kenmore
Upright Vacuum

Model # 1753310 Official Kenmore upright cleaner attachment

Here are the diagrams and repair parts for Official Kenmore 1753310 upright cleaner attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Brush Insert 3-640094-002
#2

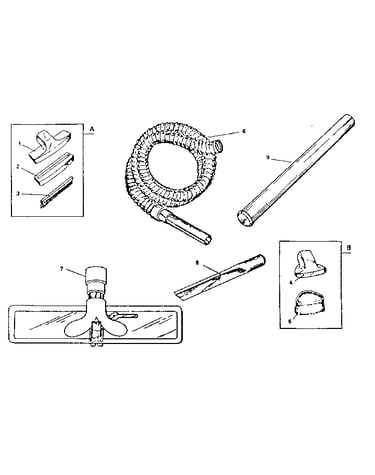

Attachment parts diagram

Brush insert

Part #3-640094-002

The manufacturer no longer makes this part, and there's no substitute part

Parts List 1-641976-042

#NI

All parts diagram

Parts list

Part #1-641976-042

The manufacturer no longer makes this part, and there's no substitute part

Brush Insert 2-640118-000
#5

Attachment parts diagram

Brush insert

Part #2-640118-000

The manufacturer no longer makes this part, and there's no substitute part

Hose 4-642189-001
#6

Attachment parts diagram

Hose

Part #4-642189-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Body 3-640096-004
#4

Attachment parts diagram

Brush body

Part #3-640096-004

The manufacturer no longer makes this part, and there's no substitute part

Dustng Brsh 2-640200-003
#11

Attachment parts diagram

Dustng brsh

Part #2-640200-003

The manufacturer no longer makes this part, and there's no substitute part

Brush Insert 2-640113-001
#3

Attachment parts diagram

Brush insert

Part #2-640113-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Body 3-640095-004
#1

Attachment parts diagram

Brush body

Part #3-640095-004

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 3-641671-002
#8

Attachment parts diagram

Crevice tool

Part #3-641671-002

The manufacturer no longer makes this part, and there's no substitute part

Adapter Assembly 4-642188-001
#7

Attachment parts diagram

Adapter assembly

Part #4-642188-001

The manufacturer no longer makes this part, and there's no substitute part
