Model # C9MPV050F12B1 Official ICP 90+ 2-stage & variable-speed blower gas furnace

Here are the diagrams and repair parts for Official ICP C9MPV050F12B1 90+ 2-stage & variable-speed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Furnace Temperature Limit Switch 1013102
#16

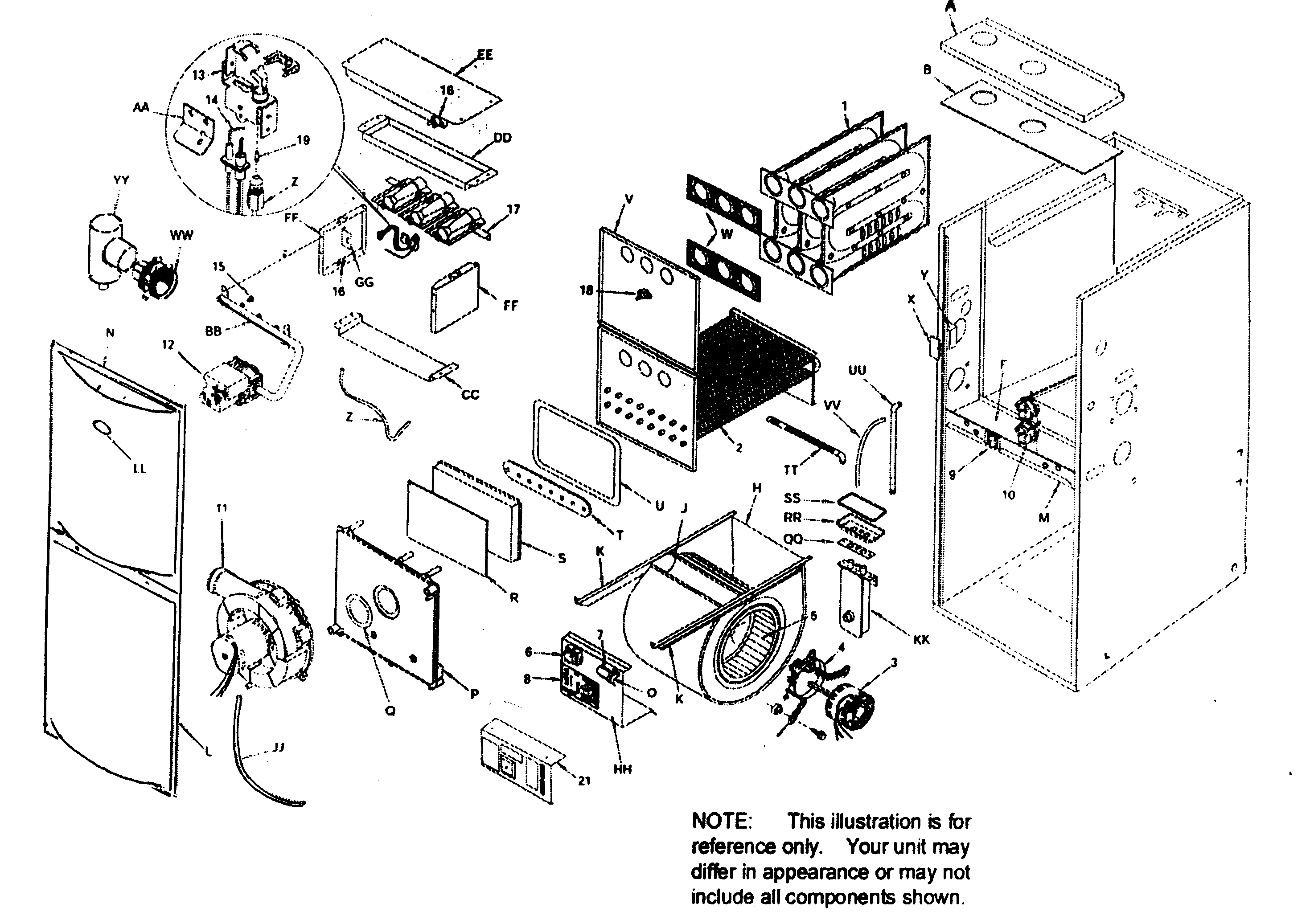

Cabinet parts diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Door Switch 1171981
#9

Cabinet parts diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Transition 1014046
#P

Cabinet parts diagram

Transition

Part #1014046

Replaced by #1172228

?
Manufacturer substitution
This part replaces 1014046. Substitute parts can look different from the original.
$79.83 |
7% OFF Phone Price : $85.83
In Stock
Drain Tube 1171991
#NI

Cabinet parts diagram

Drain tube

Part #1171991

$7.54
In Stock
Gasket 1172000
#NI

Cabinet parts diagram

Gasket

Part #1172000

$33.91
In Stock
Bracket 1012377
#FF

Cabinet parts diagram

Bracket

Part #1012377

$341.23
In Stock
Grommet 1171990
#NI

Cabinet parts diagram

Grommet

Part #1171990

This item is not returnable
$6.34
In Stock
Insulating Board 1012418
#R

Cabinet parts diagram

Insulating board

Part #1012418

$101.34 |
11% OFF Phone Price : $113.34
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#K

Cabinet parts diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
Furnace Blower Fan Wheel 1013011
#5

Cabinet parts diagram

Furnace blower fan wheel

Part #1013011

$165.19 |
7% OFF Phone Price : $177.19
In Stock
