Model # 247287740 Official Craftsman log splitter

Here are the diagrams and repair parts for Official Craftsman 247287740 log splitter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Lawn Tractor Hex Bolt (replaces 910-0427, 910-3144) 710-3144
#100

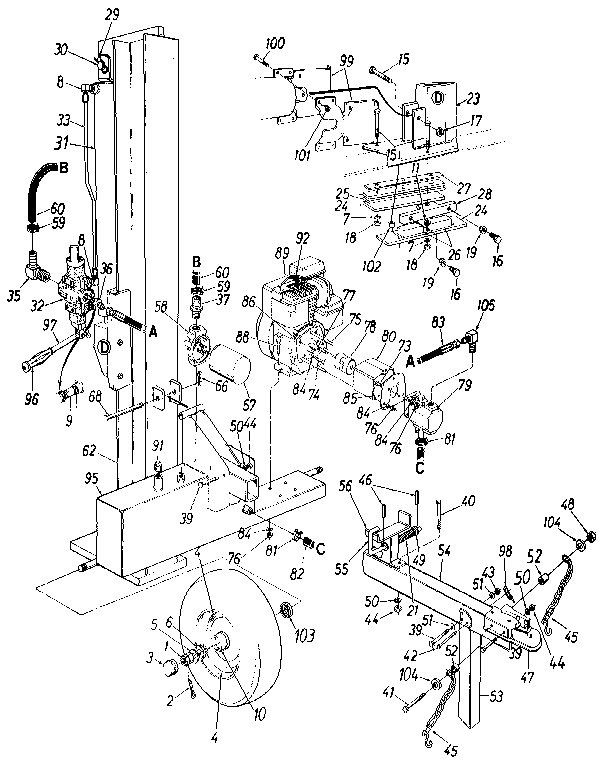

Replacement parts diagram

Lawn tractor hex bolt (replaces 910-0427, 910-3144)

Part #710-3144

This item is not returnable
$5.64 |
15% OFF Phone Price : $6.64
In Stock
Unknown Brand Name #689 Lawn Tractor Cotter Pin (replaces 01002627, 714-04039a) 714-0162
#2

Replacement parts diagram

Unknown brand name #689 lawn tractor cotter pin (replaces 01002627, 714-04039a)

Part #714-0162

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Air Valve 734-0255
#4D

Replacement parts diagram

Air valve

Part #734-0255

Replaced by #934-0255

?
Manufacturer substitution
This part replaces 734-0255. Substitute parts can look different from the original.
This item is not returnable
$5.43 |
16% OFF Phone Price : $6.43
In Stock
Toro Lawn & Garden Equipment Lock Washer (replaces 936-0169) 736-0169
#50

Replacement parts diagram

Toro lawn & garden equipment lock washer (replaces 936-0169)

Part #736-0169

This item is not returnable
$5.26
In Stock
Valve 717-0899
#32

Replacement parts diagram

Valve

Part #717-0899

Replaced by #918-0481A

?
Manufacturer substitution
This part replaces 717-0899. Substitute parts can look different from the original.
$332.74 |
$12.00 OFF Phone Price : $344.74
In Stock
Lawn & Garden Equipment Screw 710-0411
#40

Replacement parts diagram

Lawn & garden equipment screw

Part #710-0411

$12.51 |
14% OFF Phone Price : $14.51
In Stock
Log Splitter Adjustable Gib (replaces 781-0351-0637, 781-0637) 781-0351
#26

Replacement parts diagram

Log splitter adjustable gib (replaces 781-0351-0637, 781-0637)

Part #781-0351

This item is not returnable
$29.03 |
17% OFF Phone Price : $35.03
In Stock
Lawn & Garden Equipment Spring 732-0583
#21

Replacement parts diagram

Lawn & garden equipment spring

Part #732-0583

This item is not returnable
$18.76 |
10% OFF Phone Price : $20.76
In Stock
Wheel Assembly 734-1016
#4

Replacement parts diagram

Wheel assembly

Part #734-1016

Replaced by #634-0186

?
Manufacturer substitution
This part replaces 734-1016. Substitute parts can look different from the original.
$267.03 |
$12.00 OFF Phone Price : $279.03
In Stock
Washer 736-0192
#11

Replacement parts diagram

Washer

Part #736-0192

Replaced by #936-0192

?
Manufacturer substitution
This part replaces 736-0192. Substitute parts can look different from the original.
This item is not returnable
$6.57 |
13% OFF Phone Price : $7.57
In Stock
