Emerson
Central Air Conditioner

Model # 18HT42 Official Emerson air conditioner

Here are the diagrams and repair parts for Official Emerson 18HT42 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Capacitor 160500710138
#22

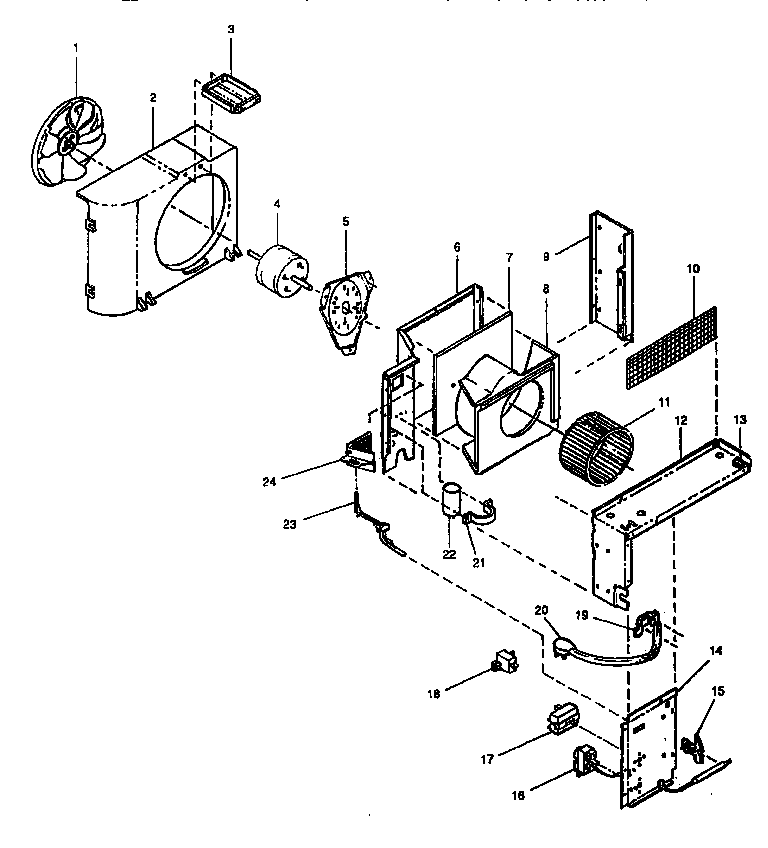

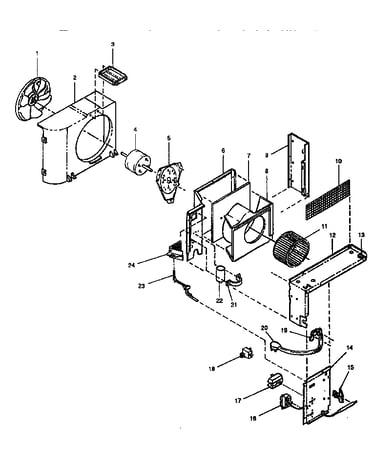

Blower diagram

Capacitor

Part #160500710138

The manufacturer no longer makes this part, and there's no substitute part

Strap, Dual Capacitor 112122670003
#21

Blower diagram

Strap, dual capacitor

Part #112122670003

The manufacturer no longer makes this part, and there's no substitute part

Washer 112123340001
#7

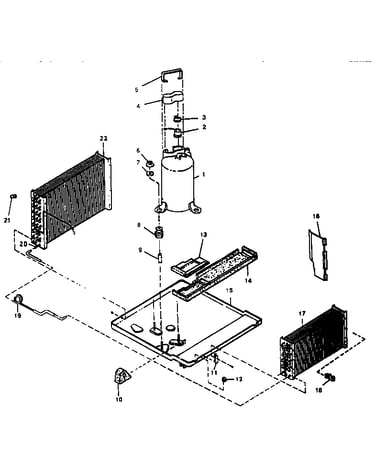

Refrigerant assembly diagram

Washer

Part #112123340001

The manufacturer no longer makes this part, and there's no substitute part

Condenser, 4 Row , 5/16 111706410002
#22

Refrigerant assembly diagram

Condenser, 4 row , 5/16

Part #111706410002

The manufacturer no longer makes this part, and there's no substitute part

Palnut 882000230005
#6

Refrigerant assembly diagram

Palnut

Part #882000230005

The manufacturer no longer makes this part, and there's no substitute part

Insulation 112123200002

#NI

All parts diagram

Insulation

Part #112123200002

The manufacturer no longer makes this part, and there's no substitute part

Screen, Discharge 112122210013
#10

Blower diagram

Screen, discharge

Part #112122210013

The manufacturer no longer makes this part, and there's no substitute part

Tube Cap S002C0002221
#19

Refrigerant assembly diagram

Tube cap

Part #S002C0002221

The manufacturer no longer makes this part, and there's no substitute part

Foam Seal 112111560018
#7

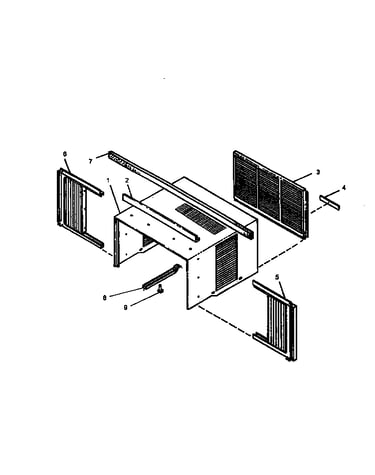

Exterior diagram

Foam seal

Part #112111560018

The manufacturer no longer makes this part, and there's no substitute part

Evap Asm S 111706260002
#17

Refrigerant assembly diagram

Evap asm s

Part #111706260002

The manufacturer no longer makes this part, and there's no substitute part
