Eureka
Upright Vacuum

Model # 4350AT Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 4350AT vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Belt Guard 38063
#5

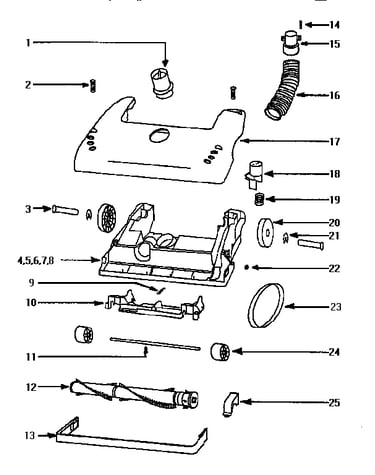

Base assembly diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Nut 54413
#27

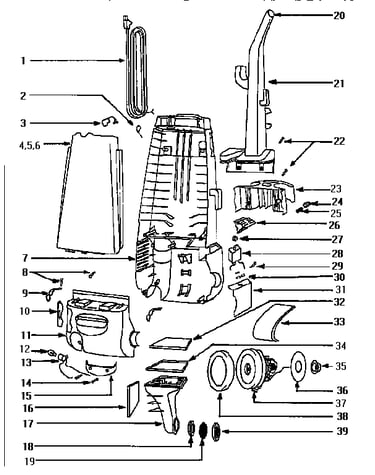

Bag housing and handle diagram

Nut

Part #54413

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688
#36

Bag housing and handle diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-1
#6

Base assembly diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#6

Bag housing and handle diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part

Housing 38689
#31

Bag housing and handle diagram

Housing

Part #38689

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Bag housing and handle diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 38755
#16

Bag housing and handle diagram

Vacuum filter, 1-pack

Part #38755

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 53089-1
#3

Bag housing and handle diagram

Strain relief

Part #53089-1

The manufacturer no longer makes this part, and there's no substitute part
