Ryobi
Band Saw

Model # BS-1100 Official Ryobi band saw

Here are the diagrams and repair parts for Official Ryobi BS-1100 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

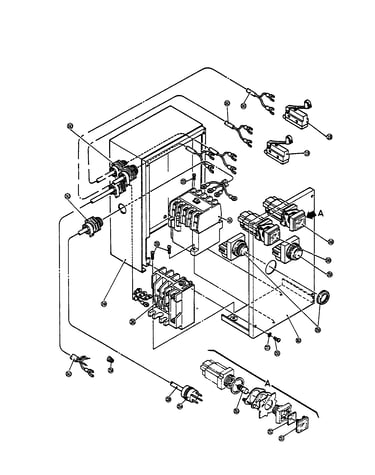

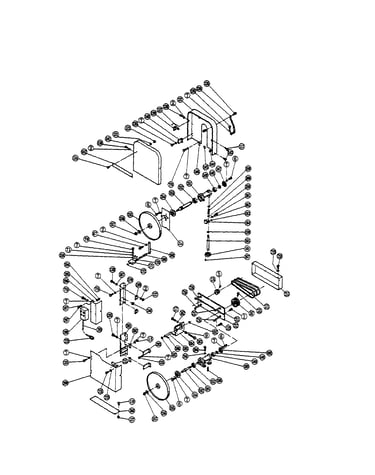

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 269 parts  |
Motor Base 6090359

#184

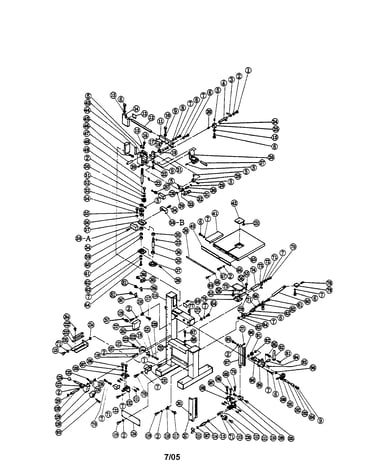

All parts diagram

Motor base

Part #6090359

The manufacturer no longer makes this part, and there's no substitute part

Table Clamp Flange 6090351

#84

All parts diagram

Table clamp flange

Part #6090351

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt 9191040

#22

All parts diagram

Hex head bolt

Part #9191040

The manufacturer no longer makes this part, and there's no substitute part

Indication Plate (b) 6920811

#39

All parts diagram

Indication plate (b)

Part #6920811

The manufacturer no longer makes this part, and there's no substitute part

Bolt M6x20 9220620

#67

All parts diagram

Bolt m6x20

Part #9220620

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp (7) 6590292

#267

All parts diagram

Cord clamp (7)

Part #6590292

The manufacturer no longer makes this part, and there's no substitute part

Hex Socket Head Bolt M12 X 6 (4) 9221260

#46

All parts diagram

Hex socket head bolt m12 x 6 (4)

Part #9221260

The manufacturer no longer makes this part, and there's no substitute part

Seal 6920807

#18

All parts diagram

Seal

Part #6920807

The manufacturer no longer makes this part, and there's no substitute part

Rubber (2) 6370268

#233

All parts diagram

Rubber (2)

Part #6370268

The manufacturer no longer makes this part, and there's no substitute part

Upper Bearing Case 6190455

#151

All parts diagram

Upper bearing case

Part #6190455

The manufacturer no longer makes this part, and there's no substitute part
