Model # 7171001 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 7171001 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Hardware 60481
#46B

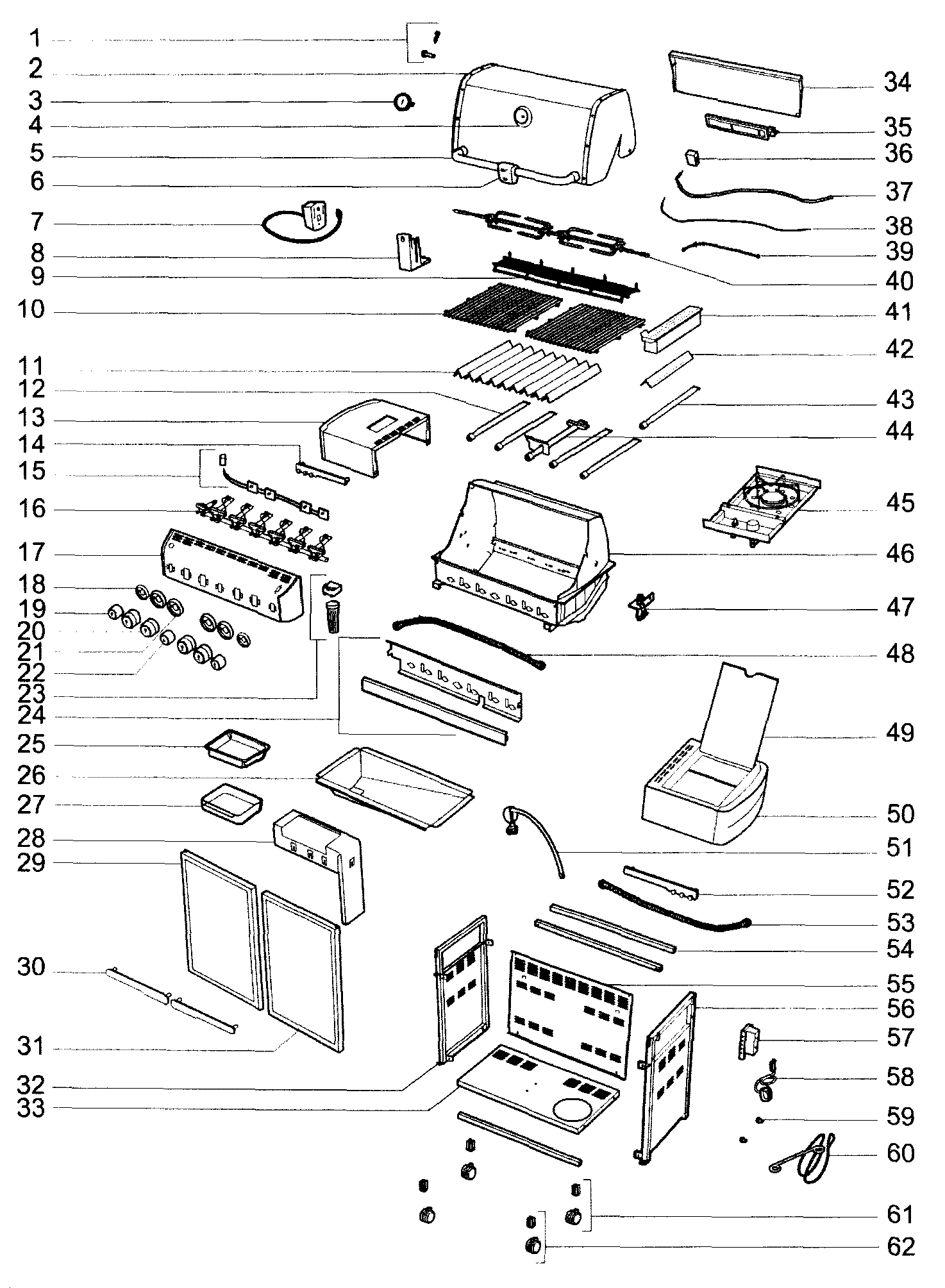

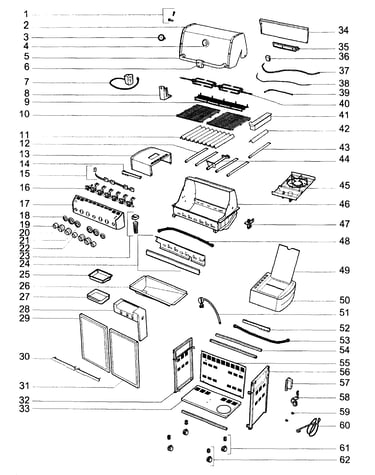

Grill parts diagram

Hardware

Part #60481

The manufacturer no longer makes this part, and there's no substitute part

Bumpers,silicone 70339
#46A

Grill parts diagram

Bumpers,silicone

Part #70339

The manufacturer no longer makes this part, and there's no substitute part

Side Lid 67720
#49

Grill parts diagram

Side lid

Part #67720

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88208
Hardware

Part #88208

The manufacturer no longer makes this part, and there's no substitute part

Harness 70881
#15A

Grill parts diagram

Harness

Part #70881

The manufacturer no longer makes this part, and there's no substitute part

Lp Side Brnr Tbl 70987
#50

Grill parts diagram

Lp side brnr tbl

Part #70987

The manufacturer no longer makes this part, and there's no substitute part

Lock Caster 70360
#62

Grill parts diagram

Lock caster

Part #70360

The manufacturer no longer makes this part, and there's no substitute part

Hardware Control Kit 88231
#17A

Grill parts diagram

Hardware control kit

Part #88231

The manufacturer no longer makes this part, and there's no substitute part

Hardware 67759
#54A

Grill parts diagram

Hardware

Part #67759

The manufacturer no longer makes this part, and there's no substitute part

Hose Regulator 25332
#51

Grill parts diagram

Hose regulator

Part #25332

The manufacturer no longer makes this part, and there's no substitute part
