Model # 143234022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143234022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Lawn Mower O-ring 631028
#25

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#12

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Line 29774
#114

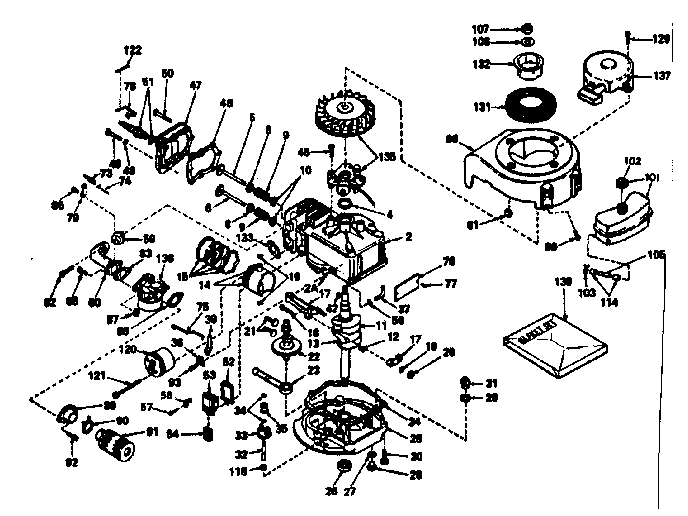

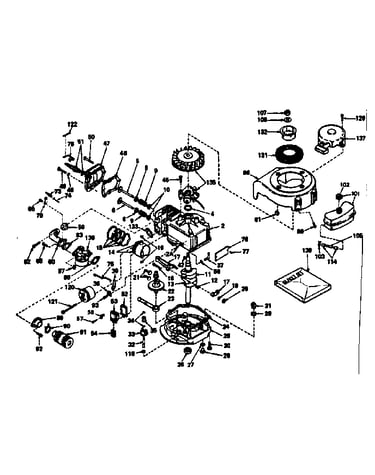

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Clamp 32973
#90

Basic engine diagram

Clamp

Part #32973

The manufacturer no longer makes this part, and there's no substitute part

Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Plug 27625
#31

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#5

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
/fuel Clamp 26460
#103

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#36

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part
