Model # SP-THM55F Official JVC audio speaker

Here are the diagrams and repair parts for Official JVC SP-THM55F audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Tweeter Ring 5700066601
#5

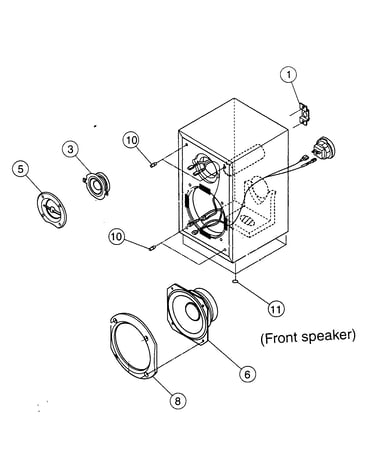

Cabinet parts diagram

Tweeter ring

Part #5700066601

The manufacturer no longer makes this part, and there's no substitute part

Box Speaker SPXTH55FJ-SPBOX
#NI

Cabinet parts diagram

Box speaker

Part #SPXTH55FJ-SPBOX

The manufacturer no longer makes this part, and there's no substitute part

Ser Man Cd SML200311V11
#NI

Cabinet parts diagram

Ser man cd

Part #SML200311V11

The manufacturer no longer makes this part, and there's no substitute part

Bracket 6400021401
#1

Cabinet parts diagram

Bracket

Part #6400021401

The manufacturer no longer makes this part, and there's no substitute part

Woofer Speaker CR100054-01
#6

Cabinet parts diagram

Woofer speaker

Part #CR100054-01

The manufacturer no longer makes this part, and there's no substitute part

Woofer Ring 57000667011
#8

Cabinet parts diagram

Woofer ring

Part #57000667011

The manufacturer no longer makes this part, and there's no substitute part

Latch 5800023731
#10

Cabinet parts diagram

Latch

Part #5800023731

The manufacturer no longer makes this part, and there's no substitute part

Tweeter Speaker TF040013-01
#3

Cabinet parts diagram

Tweeter speaker

Part #TF040013-01

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual LVT1024-001B
#NI

Cabinet parts diagram

Owner's manual

Part #LVT1024-001B

The manufacturer no longer makes this part, and there's no substitute part
