Model # JMC1116AW0 Official Jenn-Air 1.6 cubic foot countertop microwave

Here are the diagrams and repair parts for Official Jenn-Air JMC1116AW0 1.6 cubic foot countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

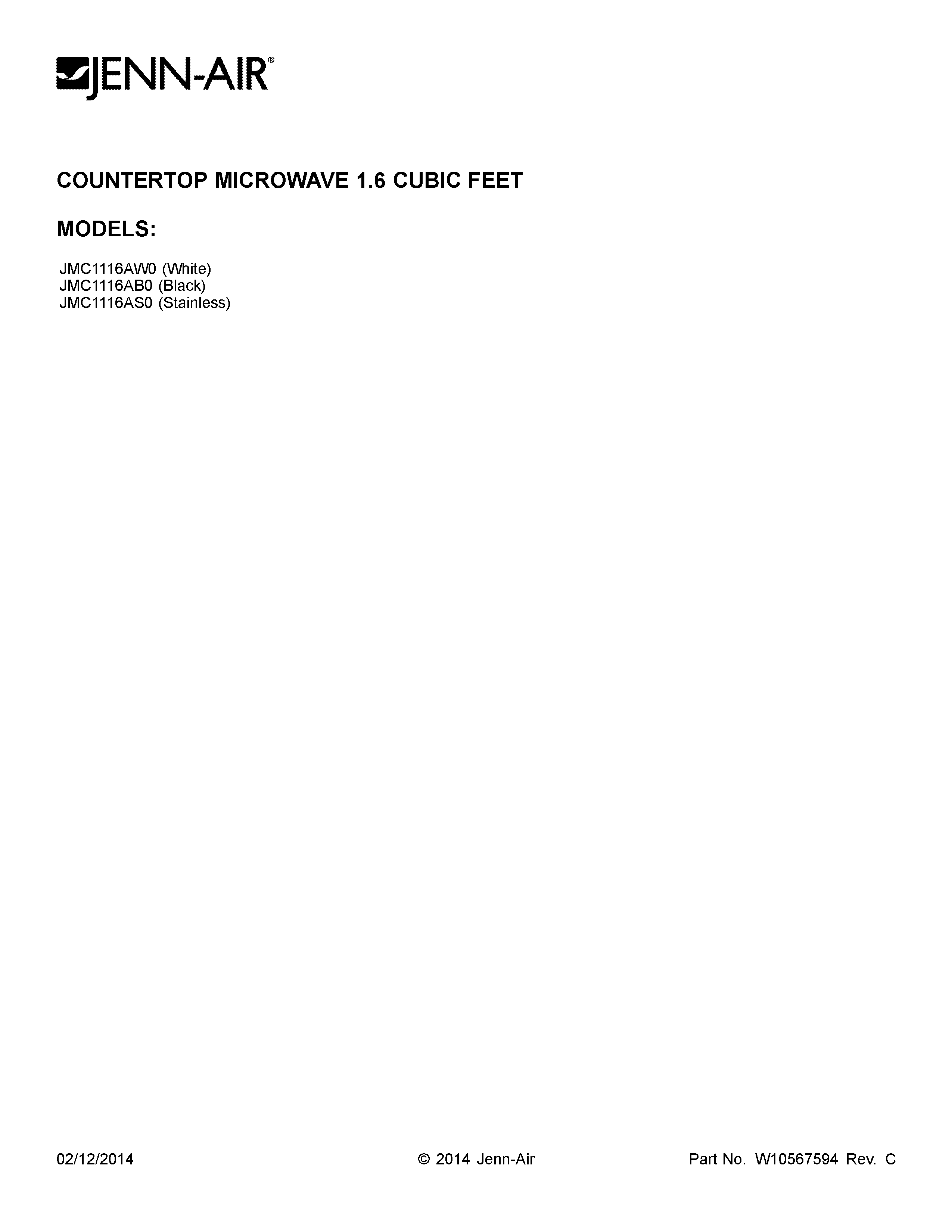

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Microwave Glass Tray W10451786
#2

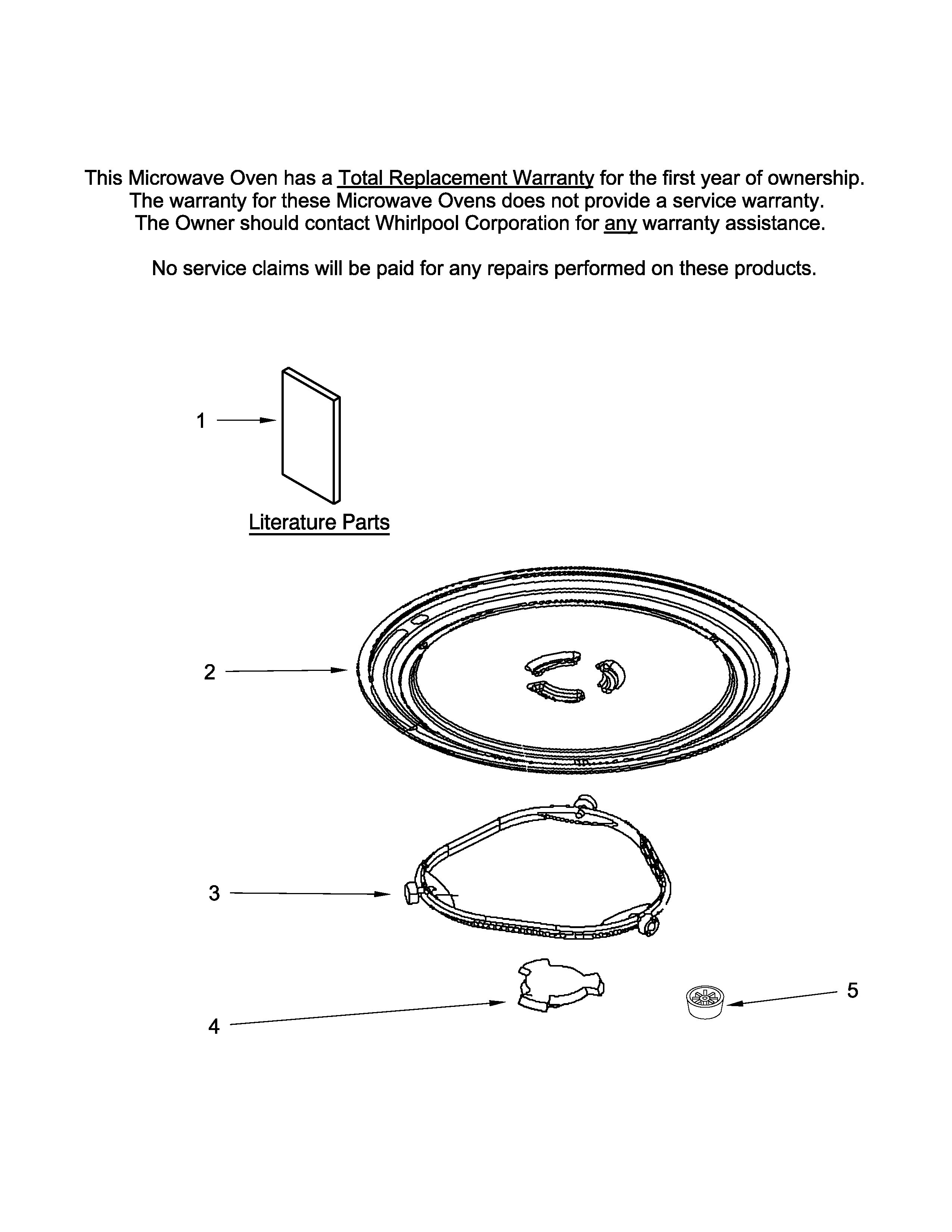

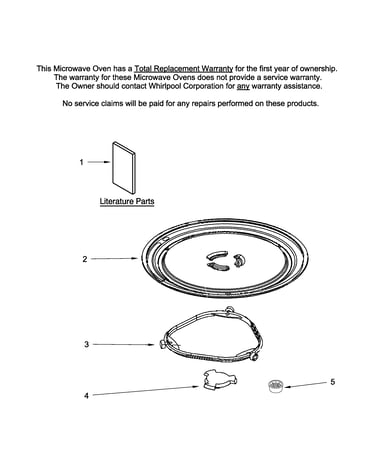

Turntable parts diagram

Microwave glass tray

Part #W10451786

Replaced by #WPW10451786

?
Manufacturer substitution
This part replaces W10451786. Substitute parts can look different from the original.
$43.32 |
12% OFF Phone Price : $49.32
In Stock
Shaft Turn W10451789
#4

Turntable parts diagram

Shaft turn

Part #W10451789

Replaced by #WPW10451789

?
Manufacturer substitution
This part replaces W10451789. Substitute parts can look different from the original.
This item is not returnable
$5.73
In Stock
Microwave Turntable Tray Support W10451792
#3

Turntable parts diagram

Microwave turntable tray support

Part #W10451792

This item is not returnable
$18.69 |
10% OFF Phone Price : $20.69
In Stock
Microwave Foot W10644489
#5

Turntable parts diagram

Microwave foot

Part #W10644489

Replaced by #WPW10644489

?
Manufacturer substitution
This part replaces W10644489. Substitute parts can look different from the original.
This item is not returnable
$21.19 |
22% OFF Phone Price : $27.19
In Stock
Accessories, 27" Stainless Trim Kit MK2167AS
#NI

Turntable parts diagram

Accessories, 27" stainless trim kit

Part #MK2167AS

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide W10434187
#1

Turntable parts diagram

Use and care guide

Part #W10434187

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions W10532204
#1C

Turntable parts diagram

Installation instructions

Part #W10532204

The manufacturer no longer makes this part, and there's no substitute part

Accessories, 30" Black Trim Kit MK2160AB
#NI

Turntable parts diagram

Accessories, 30" black trim kit

Part #MK2160AB

The manufacturer no longer makes this part, and there's no substitute part

Accessories, 27" White Trim Kit MK2167AW
#NI

Turntable parts diagram

Accessories, 27" white trim kit

Part #MK2167AW

The manufacturer no longer makes this part, and there's no substitute part

Accessories, 30" Stainless Trim Kit MK2160AS
#NI

Turntable parts diagram

Accessories, 30" stainless trim kit

Part #MK2160AS

The manufacturer no longer makes this part, and there's no substitute part
