Model # 831288400 Official Lifestyler air walker ergometer

Here are the diagrams and repair parts for Official Lifestyler 831288400 air walker ergometer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Proform Wshr,formed, 014118
#5

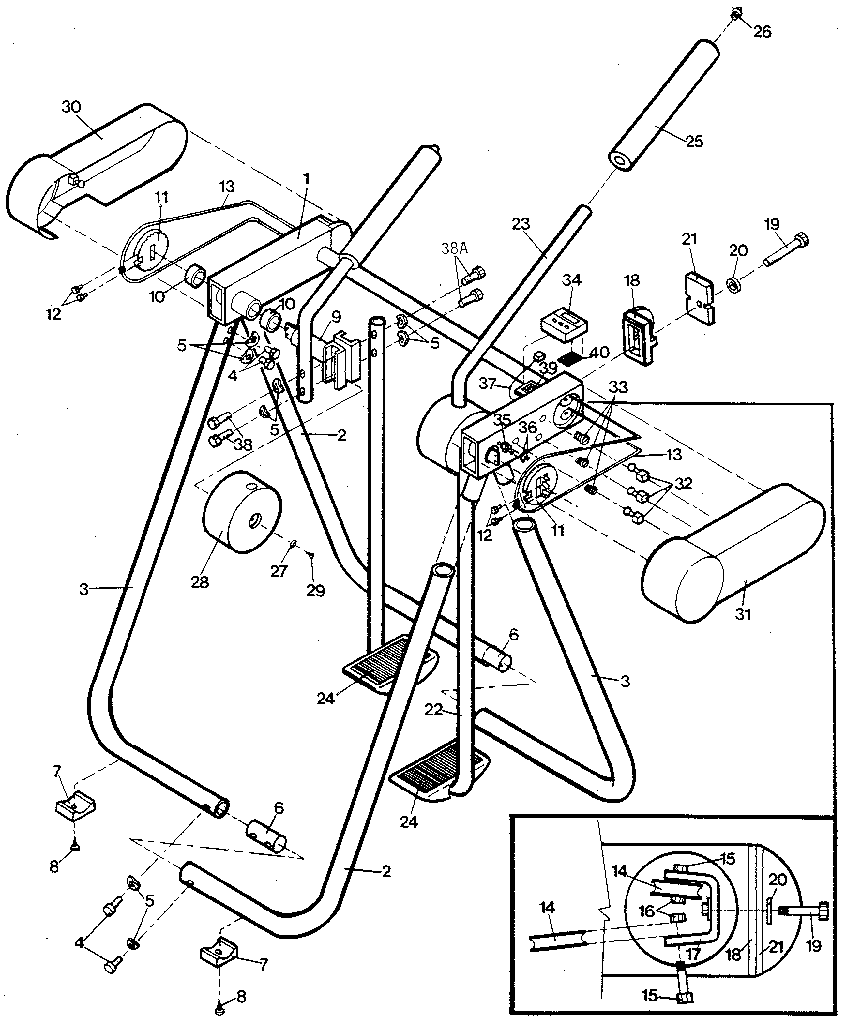

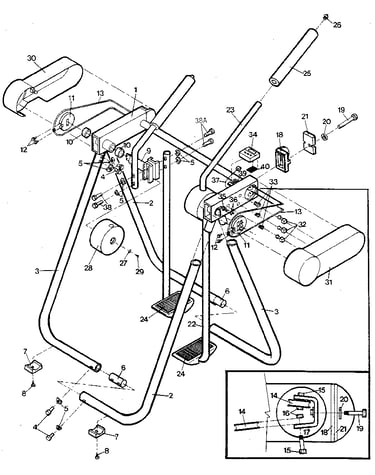

Unit parts diagram

Proform wshr,formed,

Part #014118

This item is not returnable
$2.16
In Stock
Screw 013453
#12

Unit parts diagram

Screw

Part #013453

This item is not returnable
$2.16
In Stock
Exercise Equipment Hex Nut 012108
#16

Unit parts diagram

Exercise equipment hex nut

Part #012108

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013244
#4

Unit parts diagram

Exercise equipment screw

Part #013244

This item is not returnable
$2.16
In Stock
Weider Screw,hhcs,z 013449
#38A

Unit parts diagram

Weider screw,hhcs,z

Part #013449

This item is not returnable
$2.16
In Stock
Battery 033076

#NI

All parts diagram

Battery

Part #033076

The manufacturer no longer makes this part, and there's no substitute part

Wshr,flat,zp 014074
#20

Unit parts diagram

Wshr,flat,zp

Part #014074

Replaced by #105495

?
Manufacturer substitution
This part replaces 014074. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Inner Tube, See #17 N/P
#1

Unit parts diagram

Inner tube, see #17

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bracket 008183
#17

Unit parts diagram

Bracket

Part #008183

The manufacturer no longer makes this part, and there's no substitute part

Puly,cbl,2", 020040
#14

Unit parts diagram

Puly,cbl,2",

Part #020040

The manufacturer no longer makes this part, and there's no substitute part
