Model # 113179201 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179201 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Filter 9-17816
#4

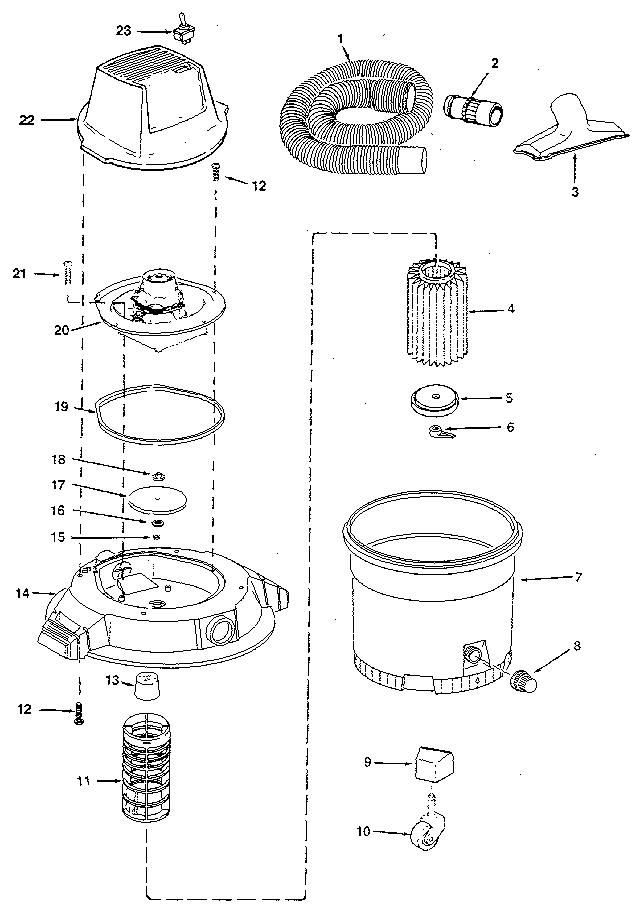

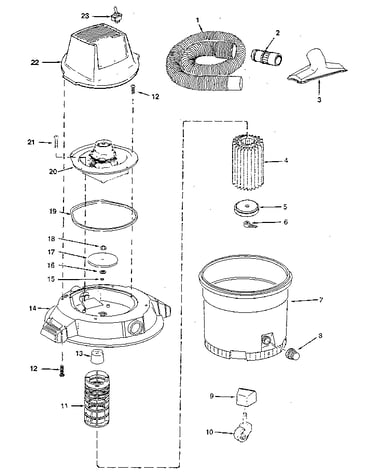

Unit diagram

Filter

Part #9-17816

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Washer 15534-1
#16

Unit diagram

Shop vacuum washer

Part #15534-1

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Blower Wheel 818413-2
#17

Unit diagram

Shop vacuum blower wheel

Part #818413-2

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Nut 73316
#6

Unit diagram

Shop vacuum filter nut

Part #73316

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#8

Unit diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#23

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Blower Wheel Spacer 818961
#18

Unit diagram

Shop vacuum blower wheel spacer

Part #818961

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster (replaces 29776, 73137) 73102
#10

Unit diagram

Shop vacuum caster (replaces 29776, 73137)

Part #73102

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 73352
#15

Unit diagram

Hex nut

Part #73352

The manufacturer no longer makes this part, and there's no substitute part

Adapter (black) 73324
#2

Unit diagram

Adapter (black)

Part #73324

The manufacturer no longer makes this part, and there's no substitute part
