GE
Range/Microwave Combo

Model # JHP62GN6AD Official GE electric range

Here are the diagrams and repair parts for Official GE JHP62GN6AD electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 311 parts  |
Diode WB27X5333
#581

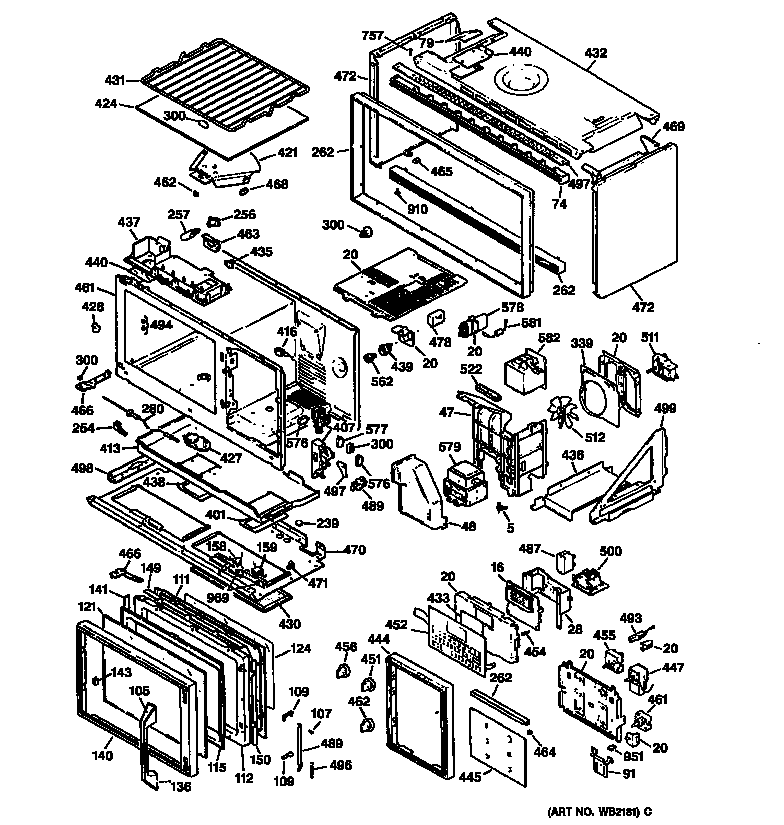

Upper body with microwave module diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012
#251

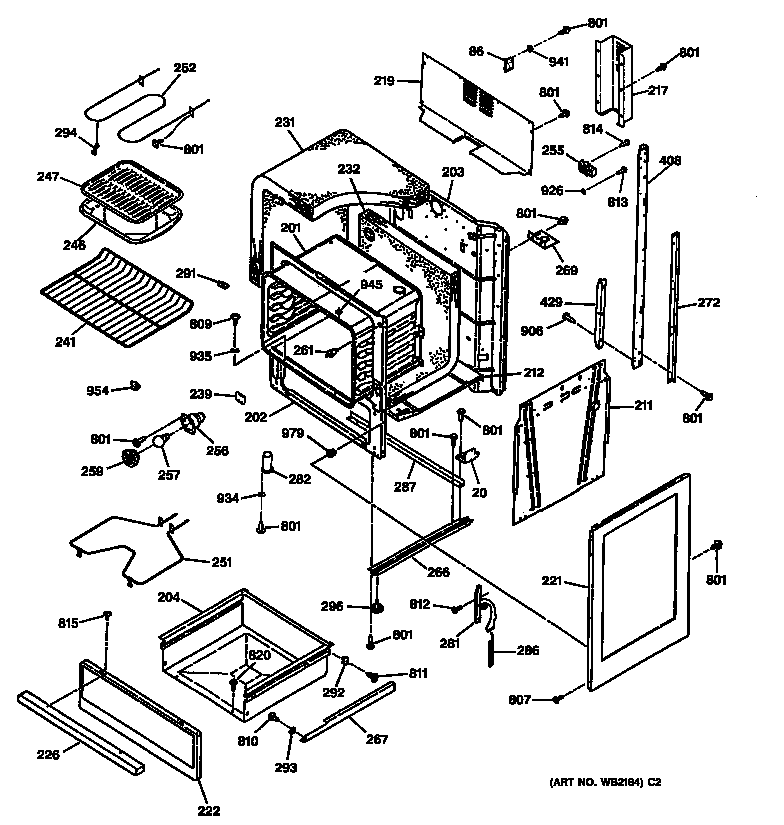

Lower body diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Terminal Block Assembly WB17K5017
#82

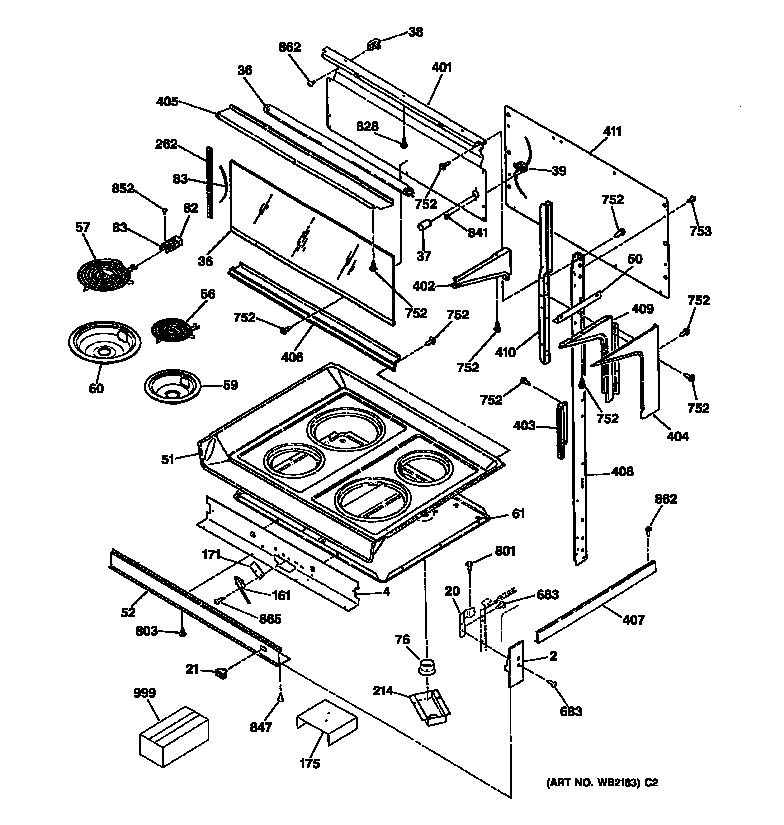

Cooktop with pedistal diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Range Surface Element Control Switch WB21X5243
#461B

Upper body with microwave module diagram

Range surface element control switch

Part #WB21X5243

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5243. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Lower body diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
"8""p.i. S/u" WB30X5130
#57

Cooktop with pedistal diagram

"8""p.i. s/u"

Part #WB30X5130

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5130. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Oven Door Handle (black) WB15T10030
Range oven door handle (black)

Part #WB15T10030

$39.42 |
13% OFF Phone Price : $45.42
In Stock
Dr Hndl Ecap WB15K5069
#397

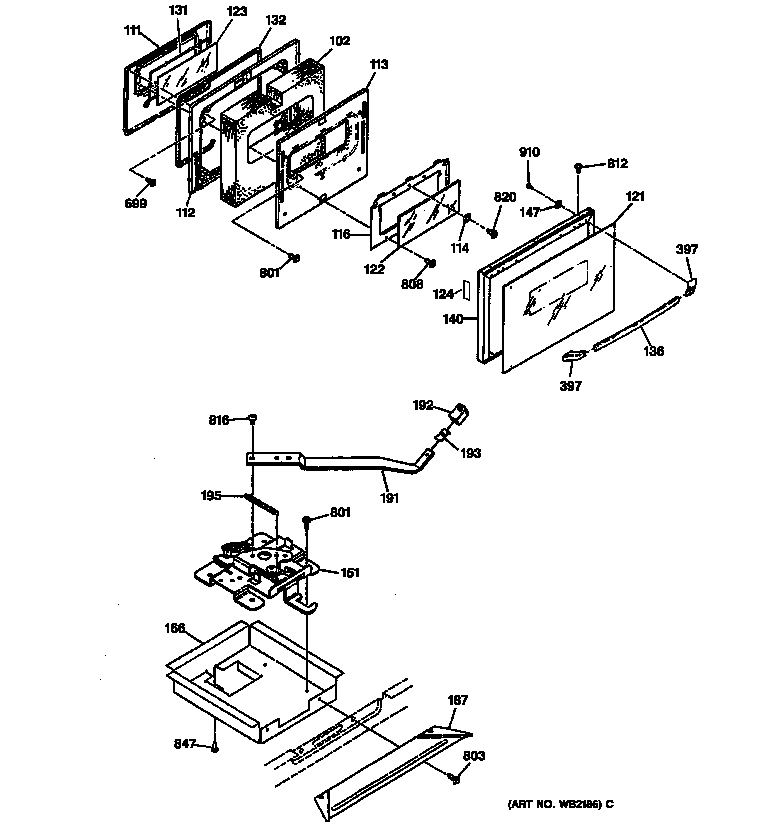

Oven door & motorized door lock diagram

Dr hndl ecap

Part #WB15K5069

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB15K5069. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Screw-10-32 WB1X1253
#810

Lower body diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB2K5319
#132

Oven door & motorized door lock diagram

Range oven door gasket

Part #WB2K5319

$109.34 |
10% OFF Phone Price : $121.34
In Stock
