Model # 62969125 Official Sears electric motor kit

Here are the diagrams and repair parts for Official Sears 62969125 electric motor kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 5 of 5 parts  |
V-pulley 5284
#1B

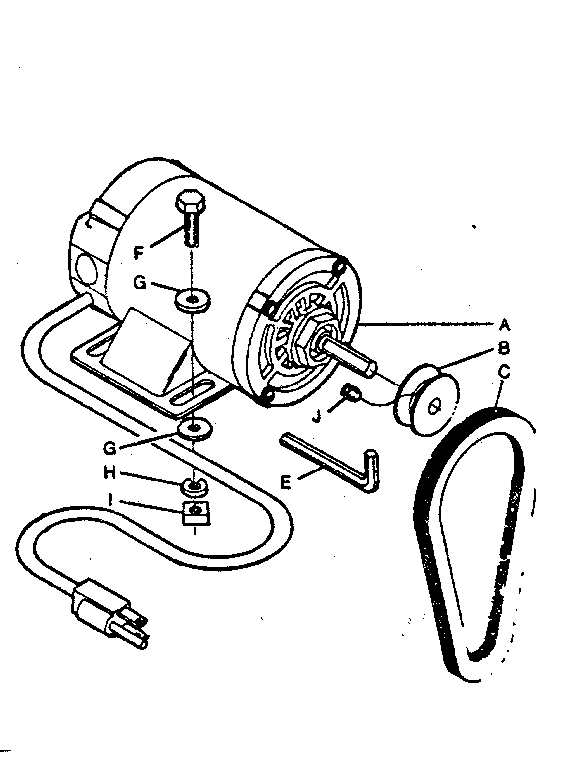

Unit parts diagram

V-pulley

Part #5284

The manufacturer no longer makes this part, and there's no substitute part

(aa) Lockwasher, 5/8 (common Hardware. May Be Purchased Locally.) N/P
(aa) lockwasher, 5/8 (common hardware. may be purchased locally.)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Wrench 5196
#1E

Unit parts diagram

Wrench

Part #5196

The manufacturer no longer makes this part, and there's no substitute part

Motor 214942
#1A

Unit parts diagram

Motor

Part #214942

The manufacturer no longer makes this part, and there's no substitute part

V-belt 5283
#1C

Unit parts diagram

V-belt

Part #5283

The manufacturer no longer makes this part, and there's no substitute part
