Bosch
Reciprocating Saw

Model # RS7 Official Bosch reciprocating saw

Here are the diagrams and repair parts for Official Bosch RS7 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Bosch Motor Housing 2610956877
#1

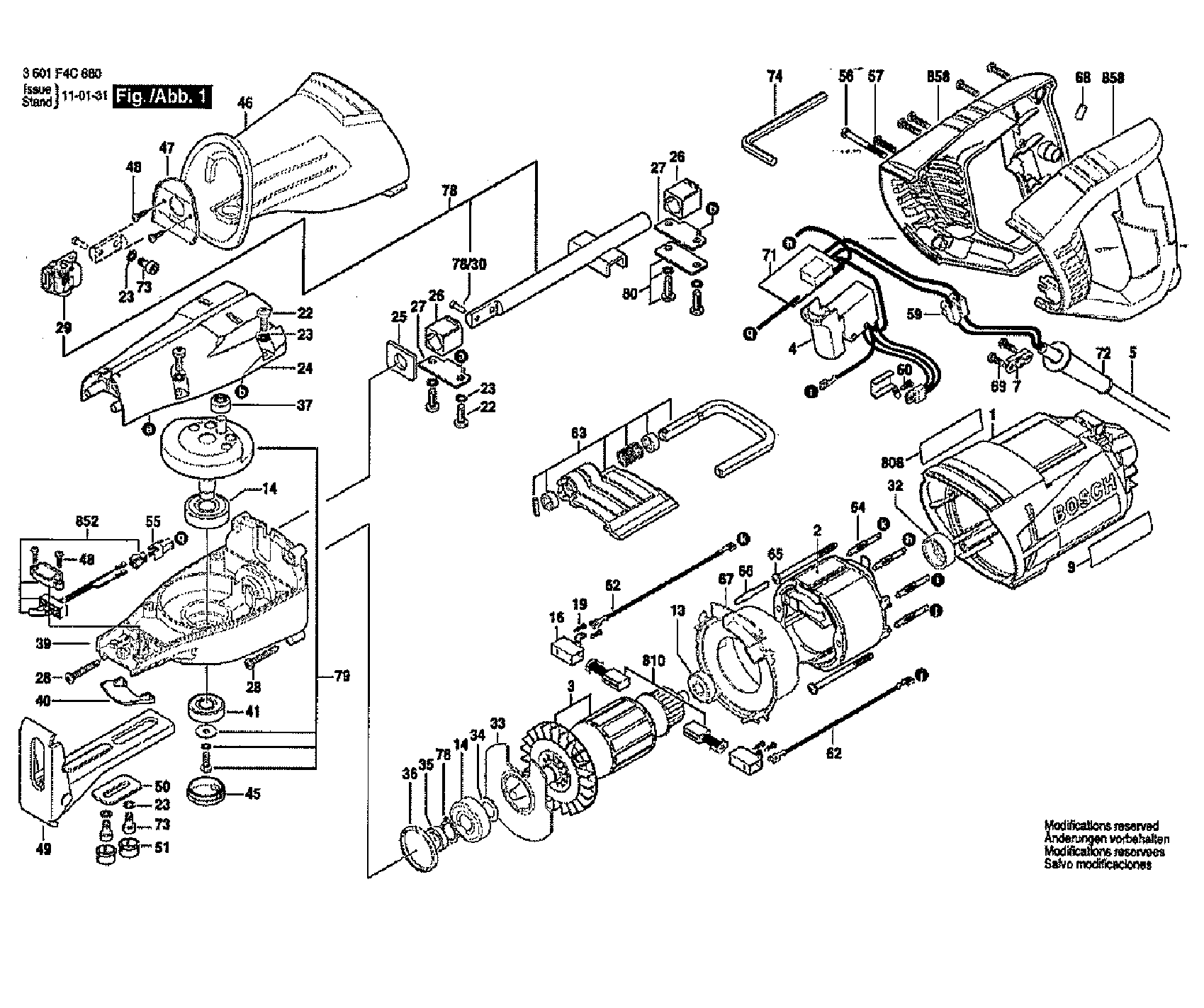

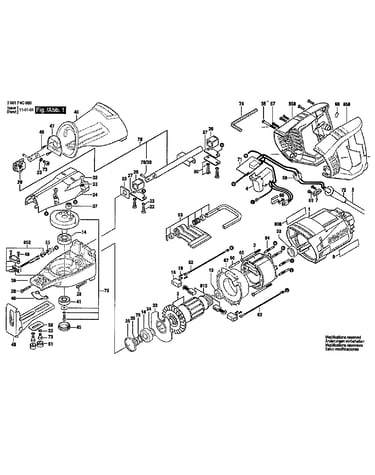

Saw reciprocating diagram

Bosch motor housing

Part #2610956877

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 1619P05408
#73

Saw reciprocating diagram

Bosch screw

Part #1619P05408

The manufacturer no longer makes this part, and there's no substitute part

Bosch Rubber Ring 2610956885
#36

Saw reciprocating diagram

Bosch rubber ring

Part #2610956885

The manufacturer no longer makes this part, and there's no substitute part

Bosch Clamp 1619P04828
#50

Saw reciprocating diagram

Bosch clamp

Part #1619P04828

The manufacturer no longer makes this part, and there's no substitute part

Bosch Nameplate 1619P04818
#808

Saw reciprocating diagram

Bosch nameplate

Part #1619P04818

The manufacturer no longer makes this part, and there's no substitute part

Bosch Felt Seal 1619P04821
#25

Saw reciprocating diagram

Bosch felt seal

Part #1619P04821

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610956899
#28

Saw reciprocating diagram

Bosch screw

Part #2610956899

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610956864
#56

Saw reciprocating diagram

Bosch screw

Part #2610956864

The manufacturer no longer makes this part, and there's no substitute part

Bosch Bearing 1619P04823
#37

Saw reciprocating diagram

Bosch bearing

Part #1619P04823

The manufacturer no longer makes this part, and there's no substitute part

Bosch Power Cord 2610956876
#5

Saw reciprocating diagram

Bosch power cord

Part #2610956876

The manufacturer no longer makes this part, and there's no substitute part
