Reliance
Electric Water Heater

Model # 140SOPT Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 140SOPT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Box Cover 184660-000
#18

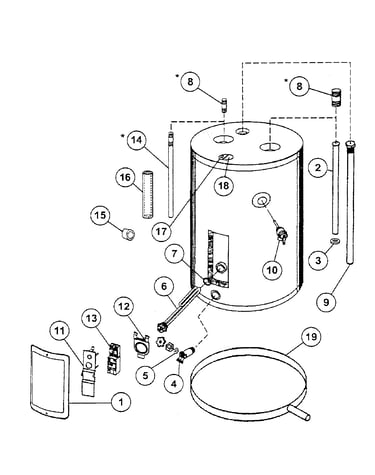

Water heater diagram

Box cover

Part #184660-000

$17.99
In Stock
Cover 184659-000
#17

Water heater diagram

Cover

Part #184659-000

$17.99
In Stock
Access Panel 181260-000
#1

Water heater diagram

Access panel

Part #181260-000

Replaced by #100109599

?
Manufacturer substitution
This part replaces 181260-000. Substitute parts can look different from the original.
$30.00
In Stock
2-way 183523-029
#9

Water heater diagram

2-way

Part #183523-029

Replaced by #100109624

?
Manufacturer substitution
This part replaces 183523-029. Substitute parts can look different from the original.
$31.11
In Stock
Element Gasket 0005300370
#7

Water heater diagram

Element gasket

Part #0005300370

The manufacturer no longer makes this part, and there's no substitute part

Bracket 184608-000
#12

Water heater diagram

Bracket

Part #184608-000

The manufacturer no longer makes this part, and there's no substitute part

Relief Valve 043151-000
#10

Water heater diagram

Relief valve

Part #043151-000

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002843
#19A

Water heater diagram

Drain pan

Part #9002843

The manufacturer no longer makes this part, and there's no substitute part

Nipple 184792-002
#8

Water heater diagram

Nipple

Part #184792-002

The manufacturer no longer makes this part, and there's no substitute part

Element 042286-024
#6

Water heater diagram

Element

Part #042286-024

The manufacturer no longer makes this part, and there's no substitute part
