White-Westinghouse
Room Air Conditioner

Model # AH11EN2T1 Official White-Westinghouse room air conditioner - lw34090260

Here are the diagrams and repair parts for Official White-Westinghouse AH11EN2T1 room air conditioner - lw34090260, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#5

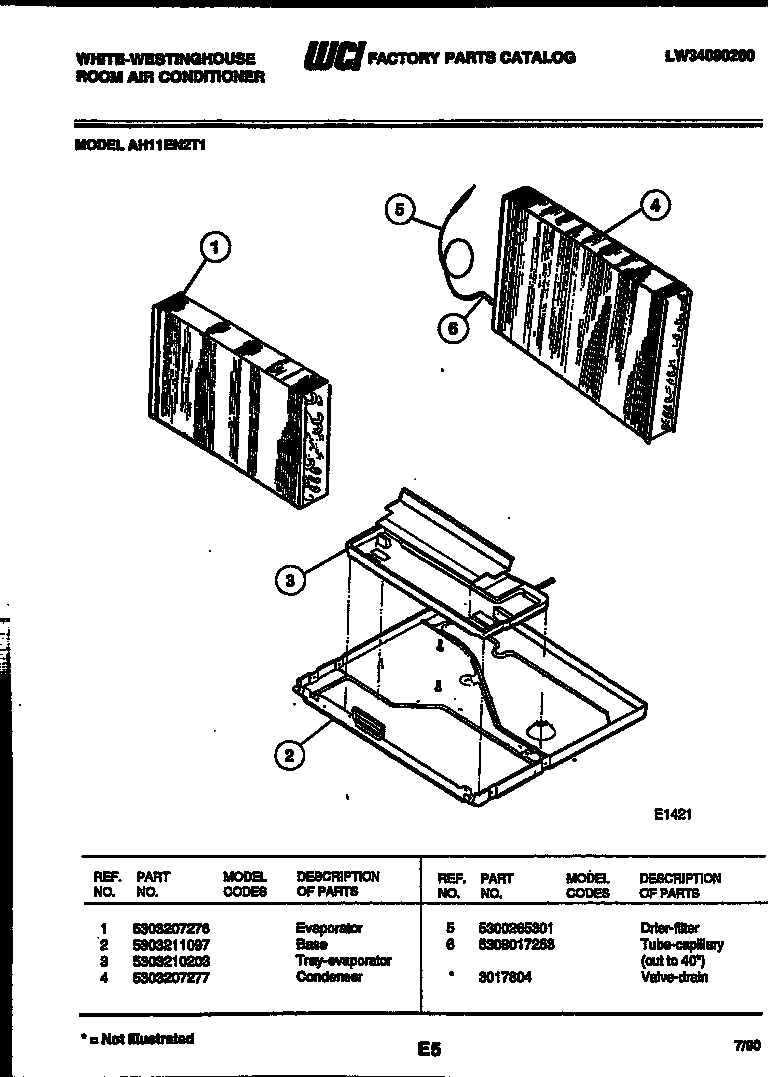

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Spacer 5303211009
#14

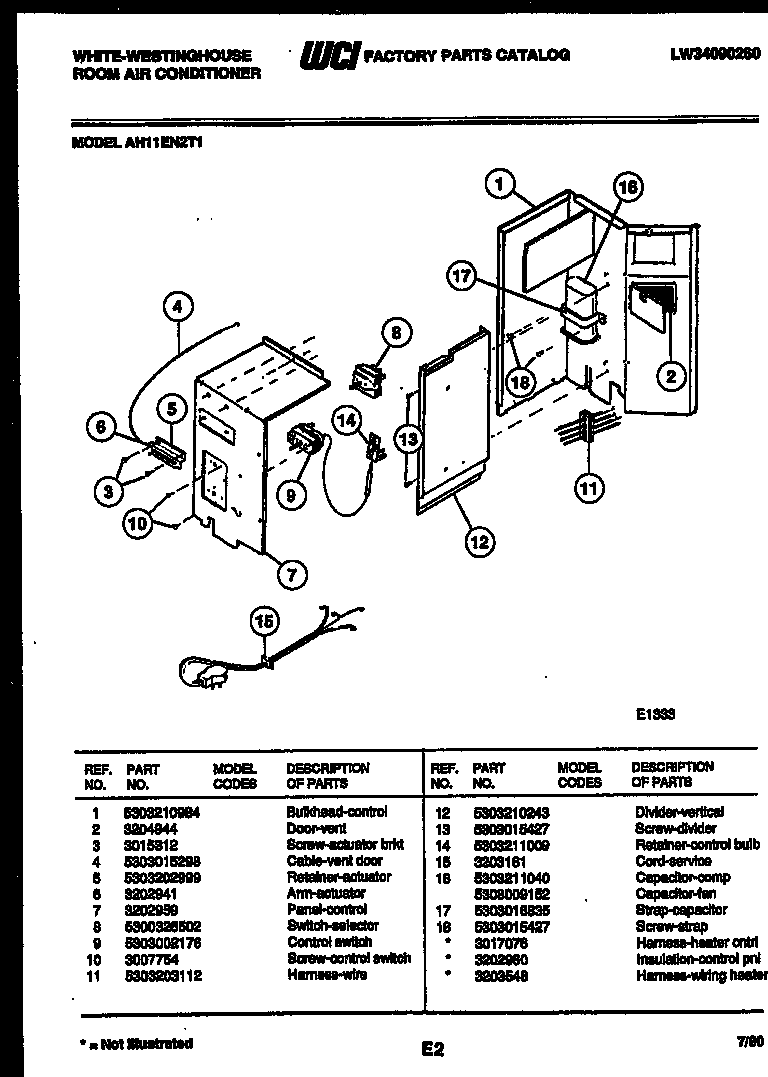

Electrical parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Bracket Screw 3015312
#3

Electrical parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Cord-service 3202161

#NI

All parts diagram

Cord-service

Part #3202161

The manufacturer no longer makes this part, and there's no substitute part

Shroud 5303207278
#4

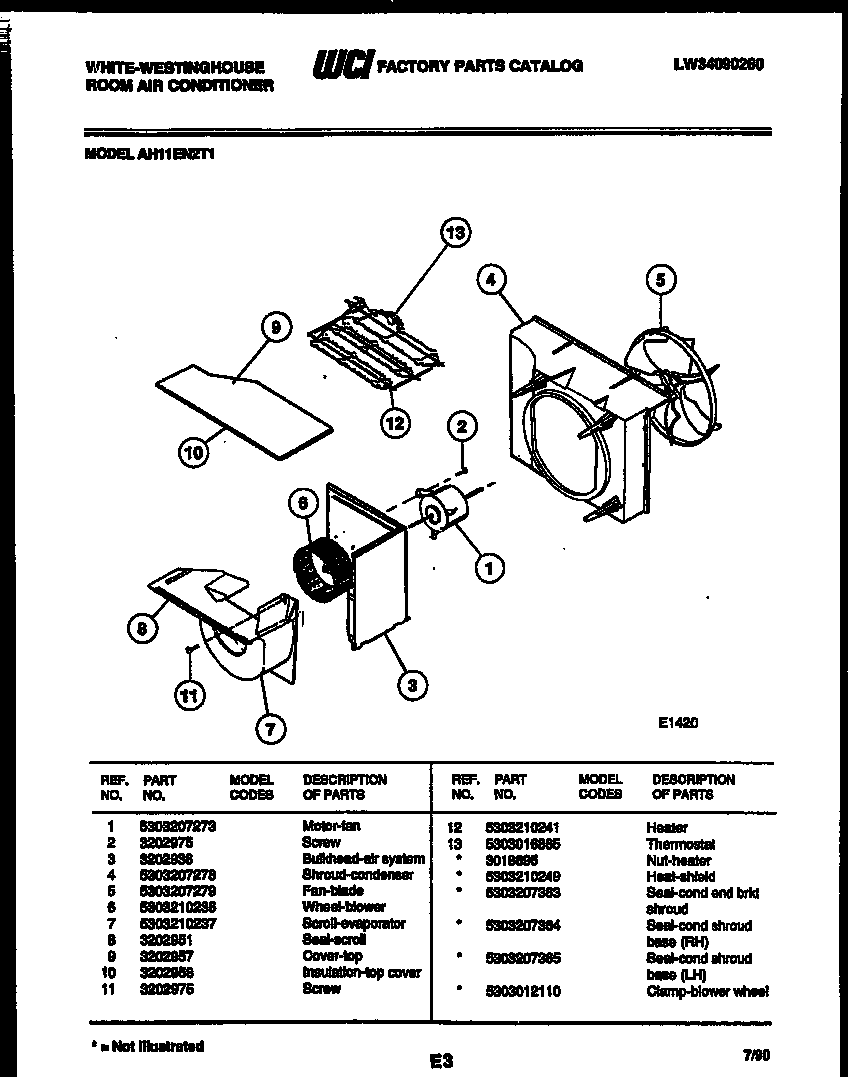

Air handling parts diagram

Shroud

Part #5303207278

The manufacturer no longer makes this part, and there's no substitute part

Panel 5303016860
#6

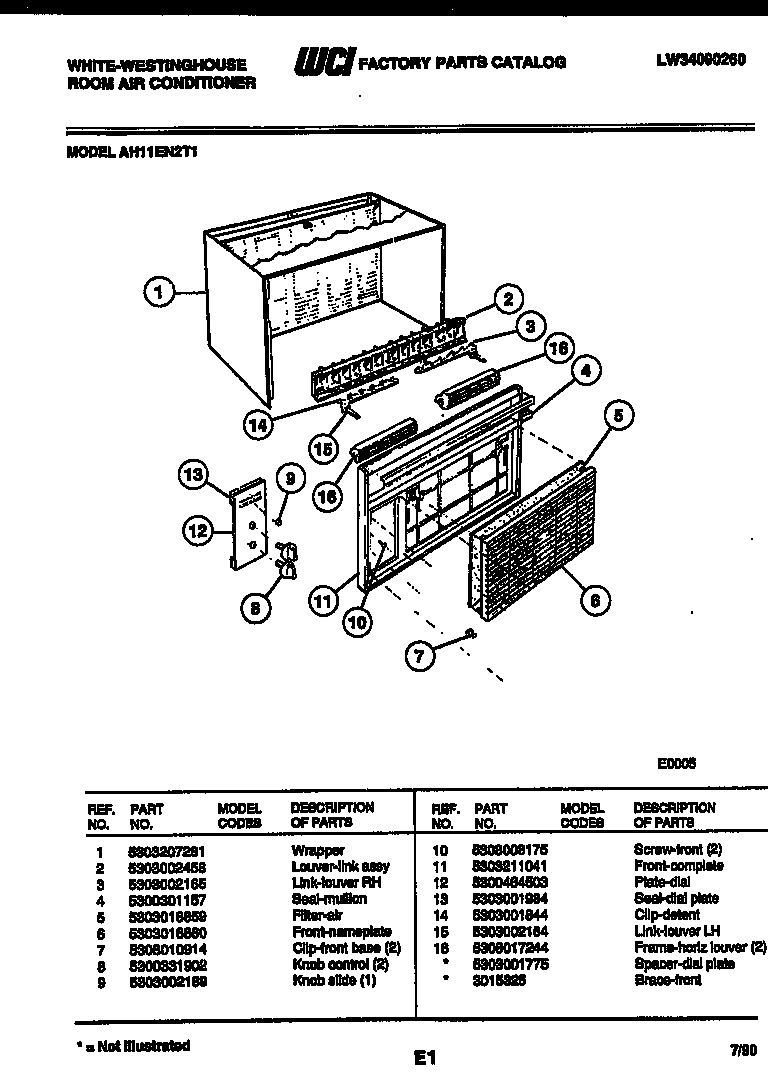

Cabinet parts diagram

Panel

Part #5303016860

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 5303207279
#5

Air handling parts diagram

Fan blade

Part #5303207279

The manufacturer no longer makes this part, and there's no substitute part

Overload 5303207275
#9

Compressor parts diagram

Overload

Part #5303207275

The manufacturer no longer makes this part, and there's no substitute part
