Model # EC-T5970 Official Sharp vacuum cleaner

Here are the diagrams and repair parts for Official Sharp EC-T5970 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

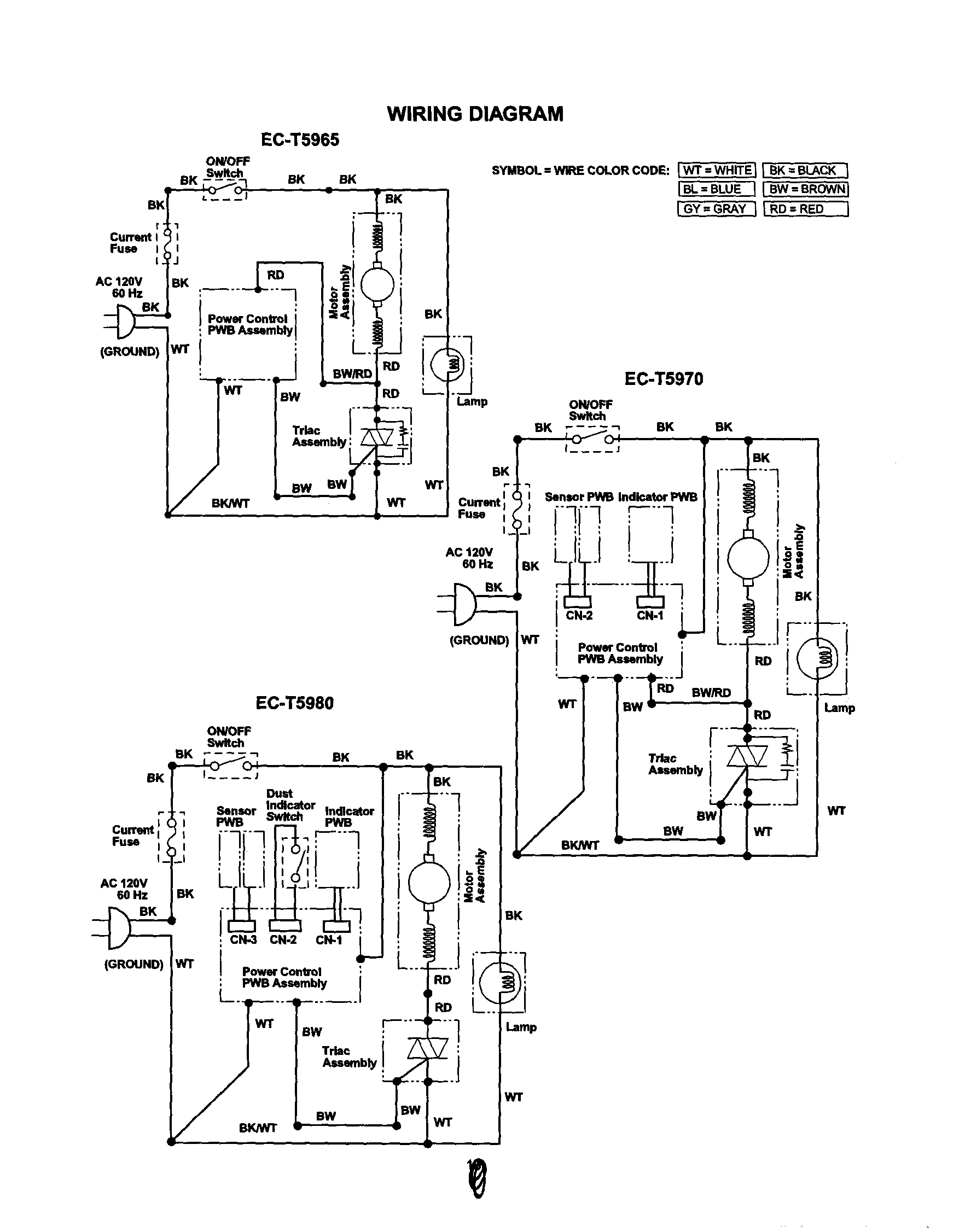

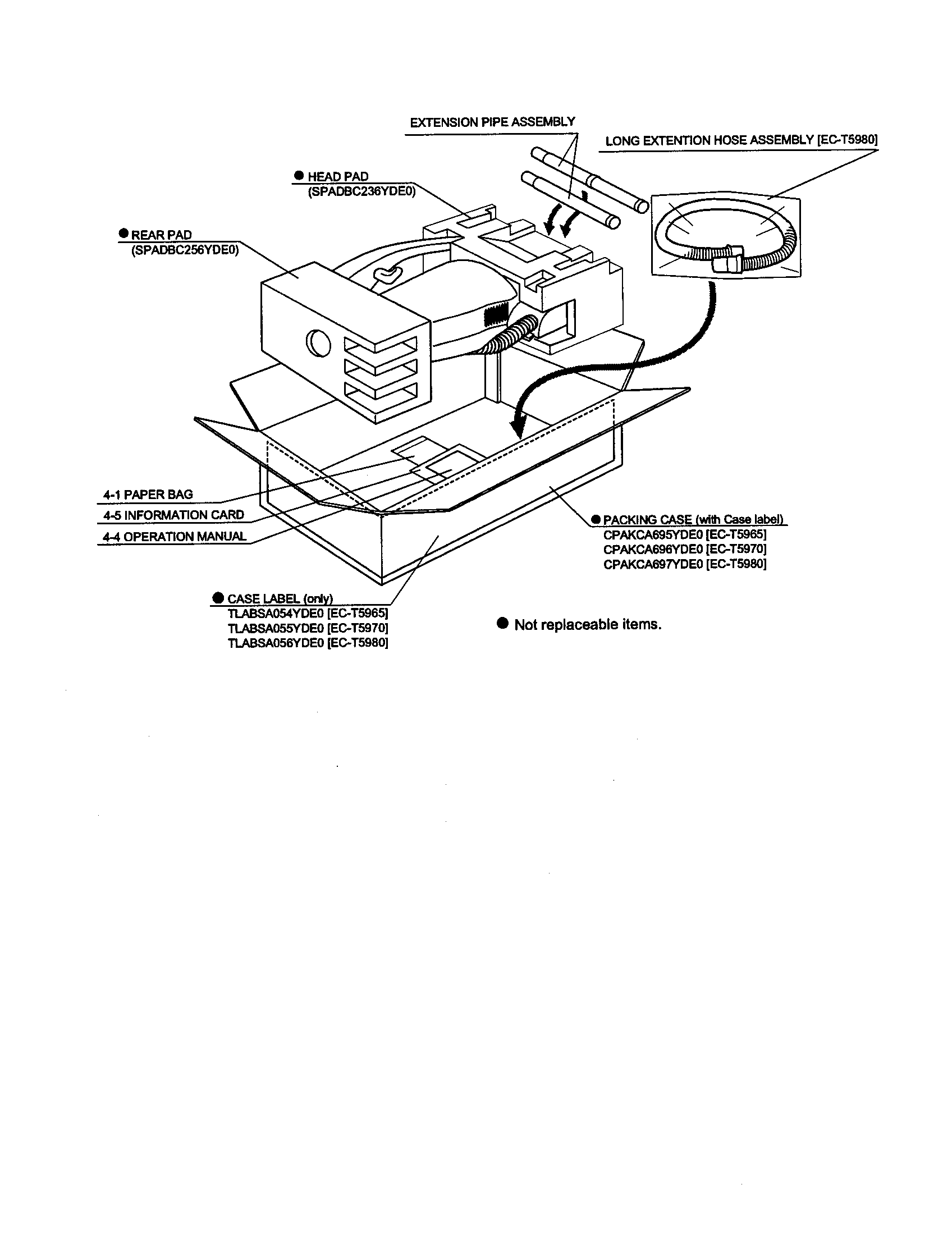

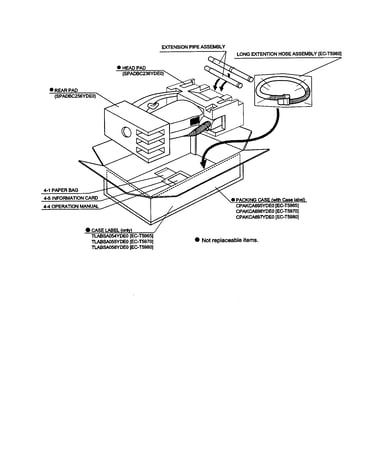

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Shaft NSFT-A017VBM0
#2-38

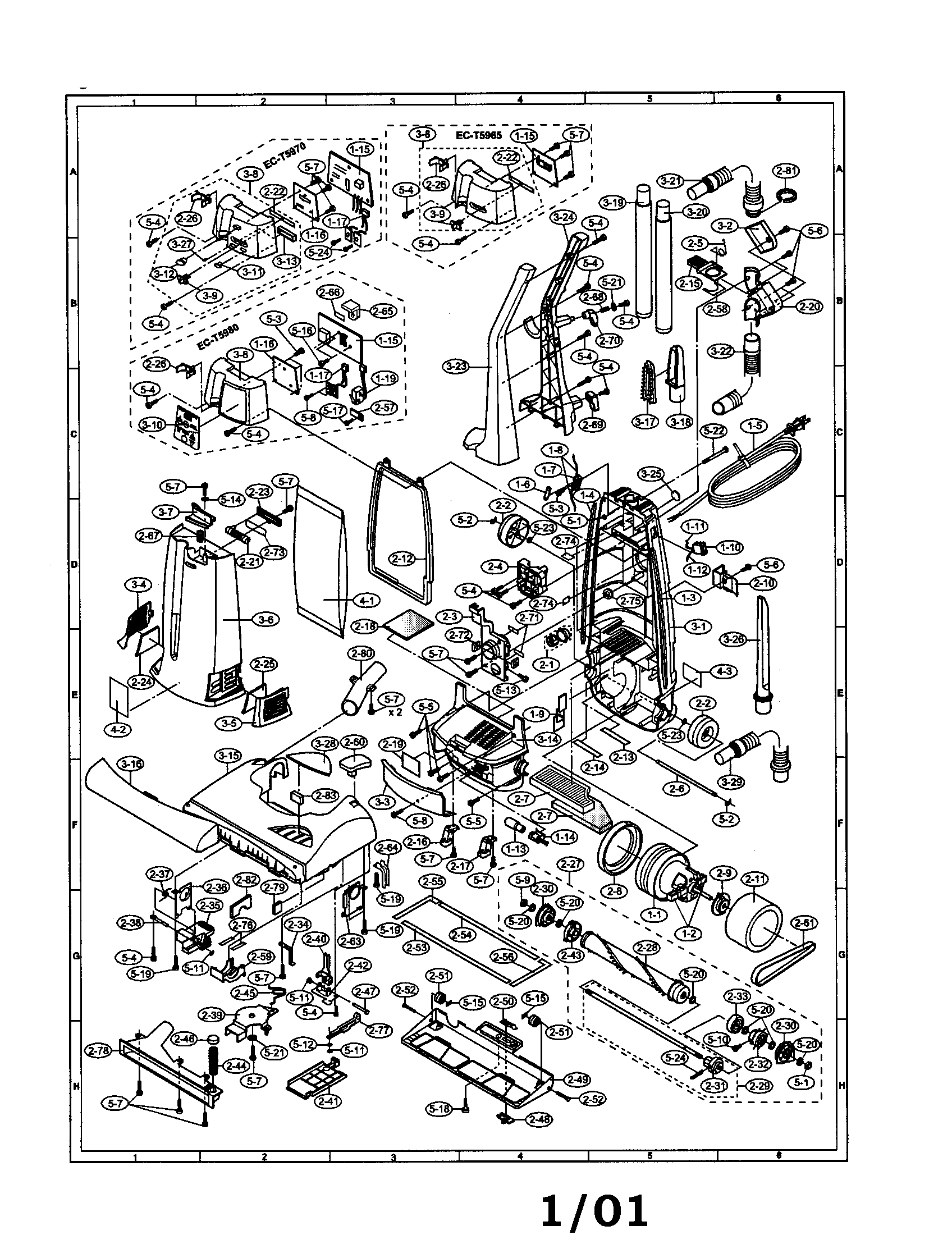

Upright vac diagram

Shaft

Part #NSFT-A017VBM0

The manufacturer no longer makes this part, and there's no substitute part

Leg (ta) FLEG-A010VBK0
#2-16

Upright vac diagram

Leg (ta)

Part #FLEG-A010VBK0

The manufacturer no longer makes this part, and there's no substitute part

Filter Cover R GCOV-A458VBFK
#3-05

Upright vac diagram

Filter cover r

Part #GCOV-A458VBFK

The manufacturer no longer makes this part, and there's no substitute part

Pulley Cover FCOV-A442VBK0
#2-59

Upright vac diagram

Pulley cover

Part #FCOV-A442VBK0

The manufacturer no longer makes this part, and there's no substitute part

Indicate Pwb Assembly (ec-t2860) FPWB-A114VBK0
#1-16

Upright vac diagram

Indicate pwb assembly (ec-t2860)

Part #FPWB-A114VBK0

The manufacturer no longer makes this part, and there's no substitute part

Feature Sticker [ec-t5980] TLABMA725VBE0
#4-02B

Upright vac diagram

Feature sticker [ec-t5980]

Part #TLABMA725VBE0

The manufacturer no longer makes this part, and there's no substitute part

Washer LX-WZA009VBE0
#5-23

Upright vac diagram

Washer

Part #LX-WZA009VBE0

The manufacturer no longer makes this part, and there's no substitute part

Screw; 4mm X 16mm XZPSD40P16000
#5-04

Upright vac diagram

Screw; 4mm x 16mm

Part #XZPSD40P16000

The manufacturer no longer makes this part, and there's no substitute part

E-ring XRESE50-06000
#5-02

Upright vac diagram

E-ring

Part #XRESE50-06000

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACC-A055VBE0
#1-05

Upright vac diagram

Power cord

Part #FACC-A055VBE0

The manufacturer no longer makes this part, and there's no substitute part
