Model # LEM065H01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE LEM065H01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

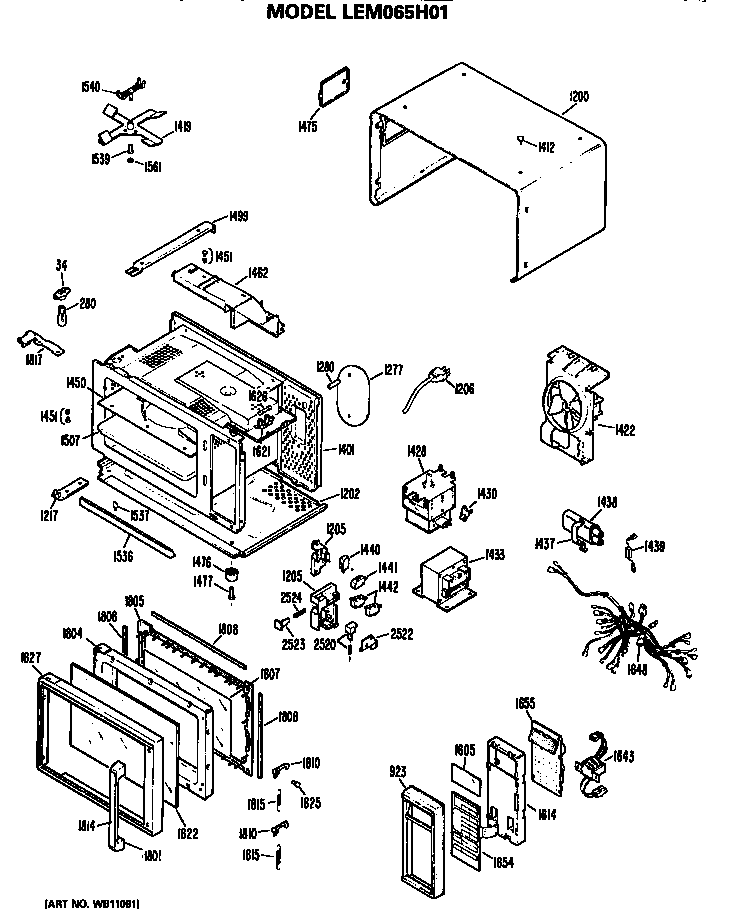

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Diode WB27X330

#1439

All parts diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Monitor Switch WB24X5228

#1445

All parts diagram

Monitor switch

Part #WB24X5228

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5228. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Hand Trim WB7X1653

#1801

All parts diagram

Hand trim

Part #WB7X1653

The manufacturer no longer makes this part, and there's no substitute part

Button Plug WB2X9440

#1412

All parts diagram

Button plug

Part #WB2X9440

The manufacturer no longer makes this part, and there's no substitute part

Spring-ke WB9X216

#1815

All parts diagram

Spring-ke

Part #WB9X216

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Shaft WB2X4882

#1540

All parts diagram

Stirrer shaft

Part #WB2X4882

The manufacturer no longer makes this part, and there's no substitute part

Bracket-support-right WB2X4692

#1499

All parts diagram

Bracket-support-right

Part #WB2X4692

The manufacturer no longer makes this part, and there's no substitute part

Ferrite WB2X9346

#1808

All parts diagram

Ferrite

Part #WB2X9346

The manufacturer no longer makes this part, and there's no substitute part

Cap WB2X9354

#1202

All parts diagram

Cap

Part #WB2X9354

The manufacturer no longer makes this part, and there's no substitute part
