Model # HG10A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon HG10A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Canon Hinge Cover DA3-6960-000
#16

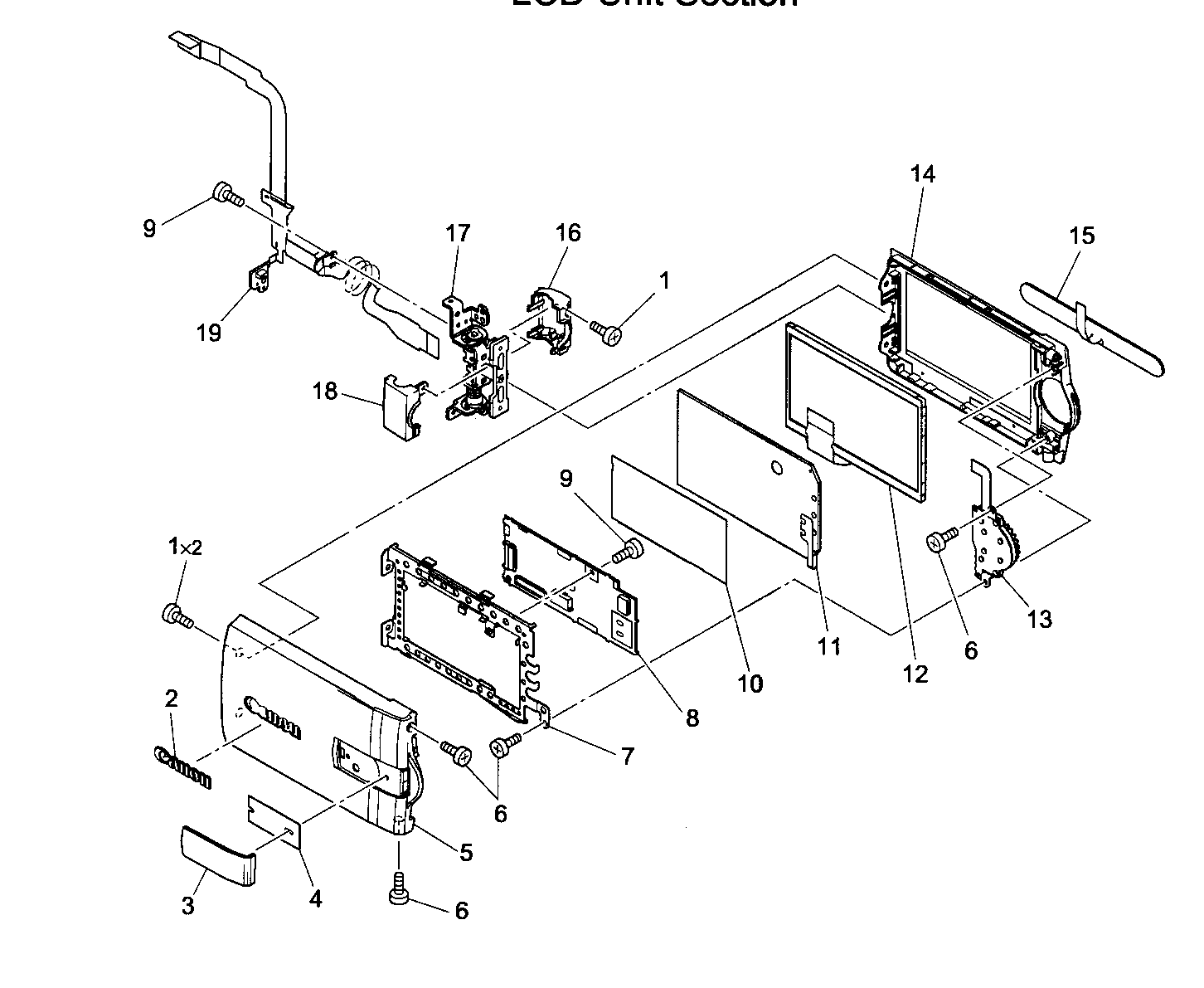

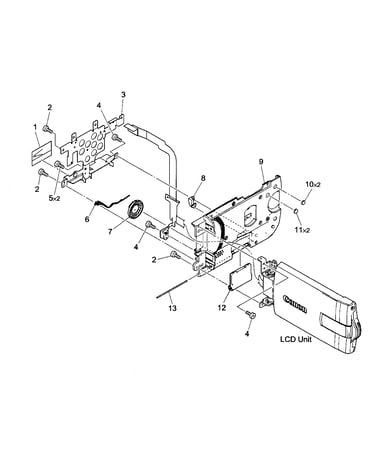

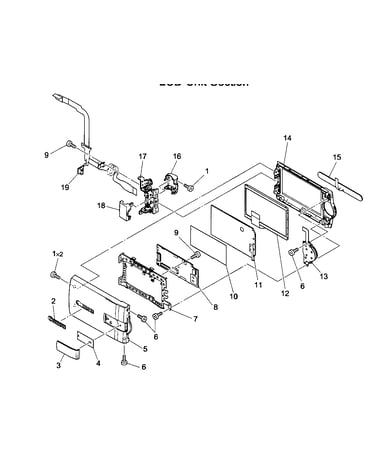

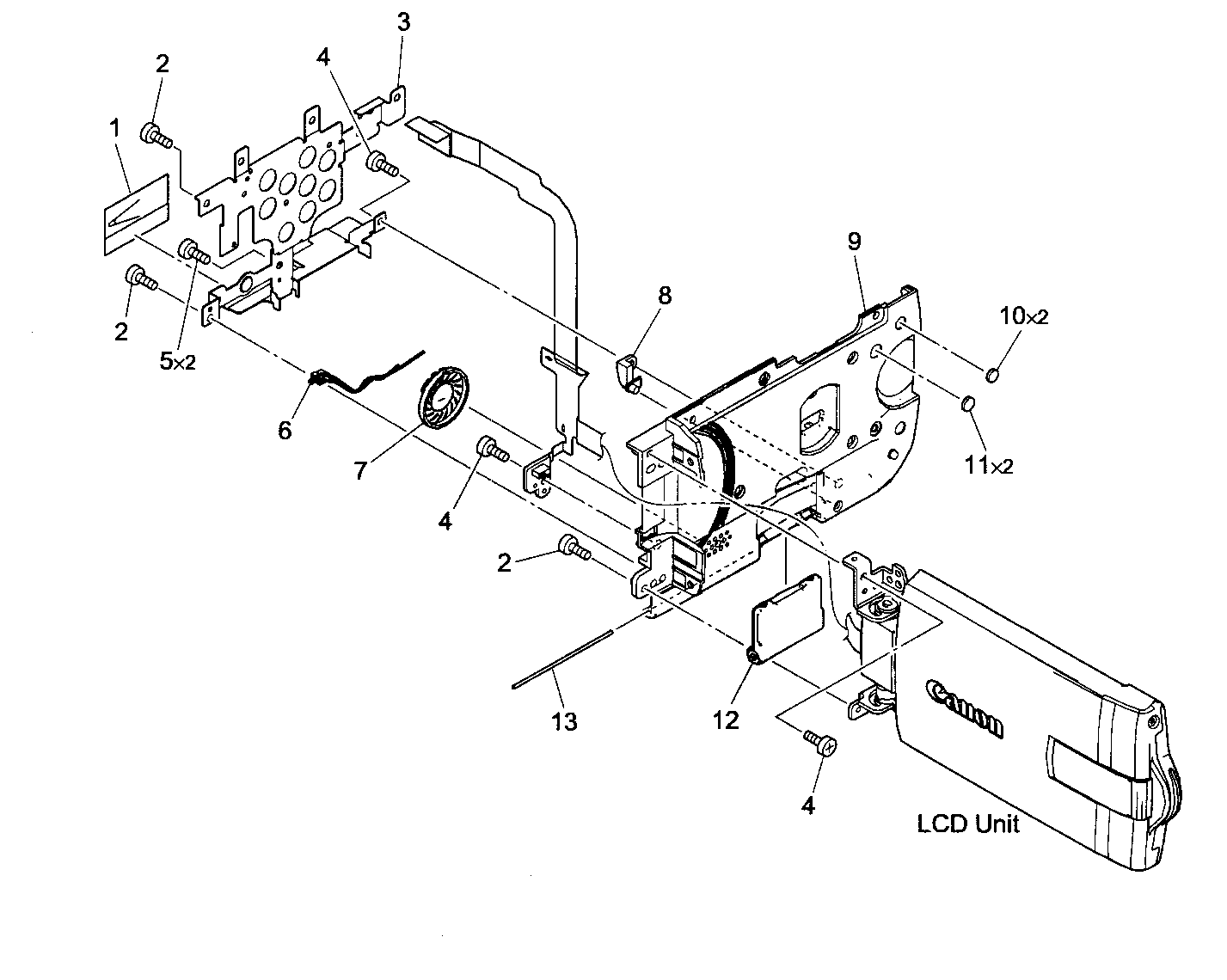

Lcd unit diagram

Canon hinge cover

Part #DA3-6960-000

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord D82-0642-000
#NI

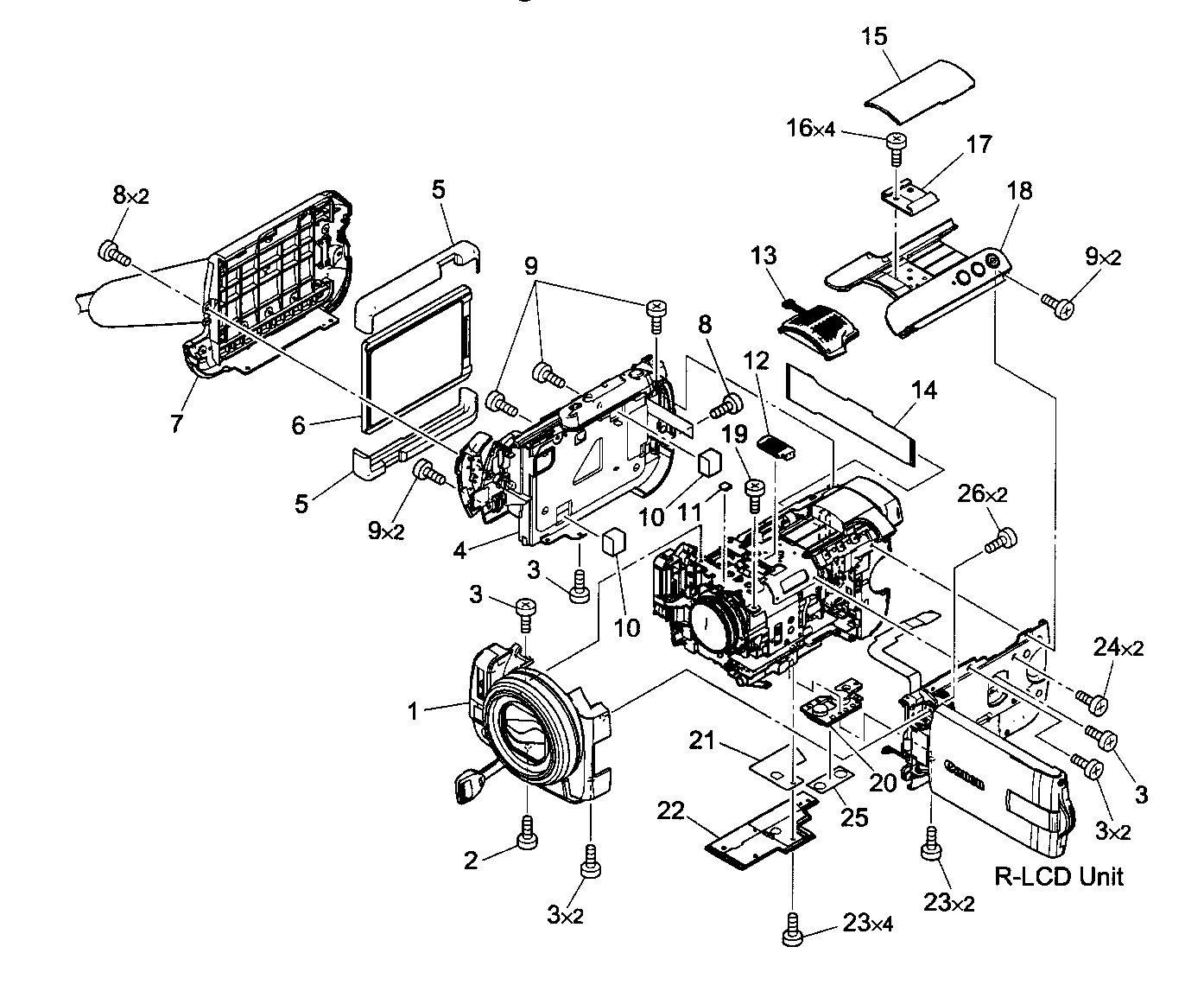

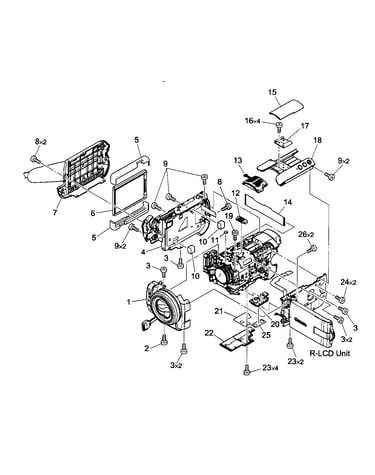

Casing parts 1 diagram

Ac cord

Part #D82-0642-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor DA3-6850-000
#NI

Casing parts 1 diagram

Capacitor

Part #DA3-6850-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Grip Cover DG3-2205-000
#7

Casing parts 1 diagram

Canon grip cover

Part #DG3-2205-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-6881-000
#8

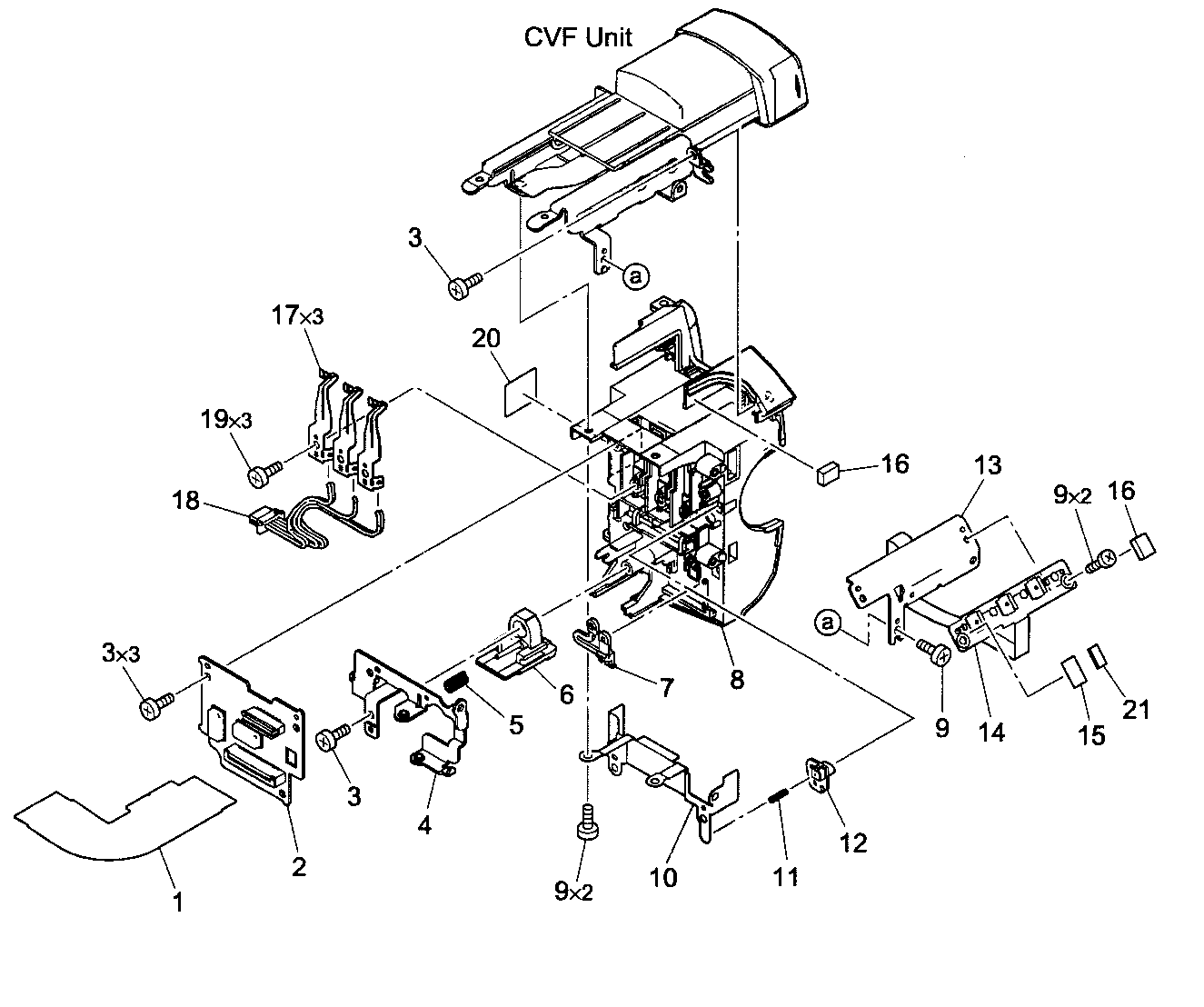

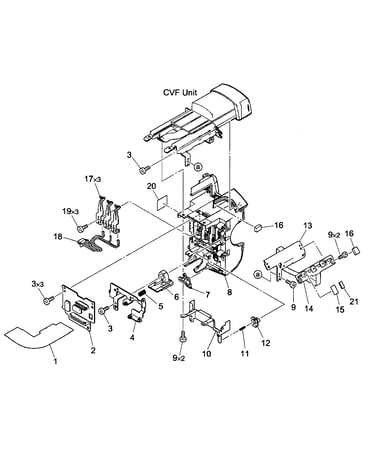

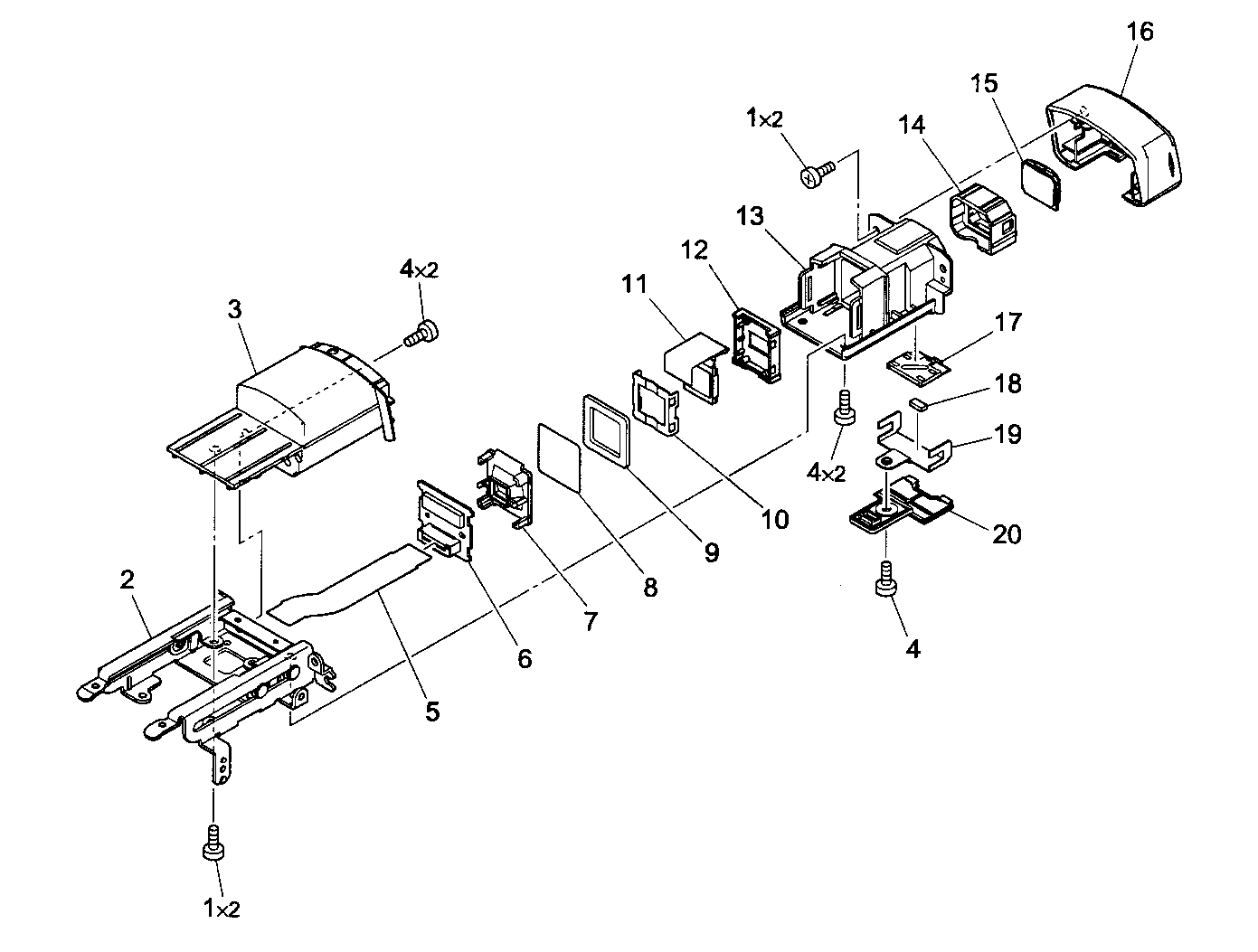

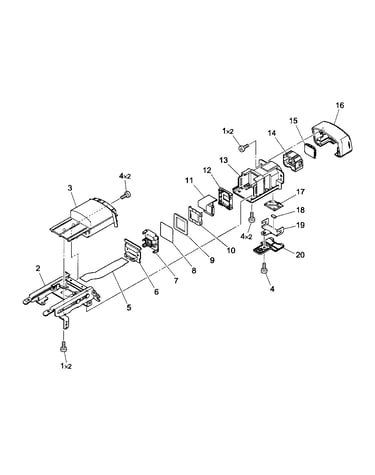

Cvf-rear unit diagram

Canon cover

Part #DA3-6881-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Microphone DG3-2194-000
#13

Casing parts 1 diagram

Canon microphone

Part #DG3-2194-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Sensor Assembly DY1-9125-000
#9

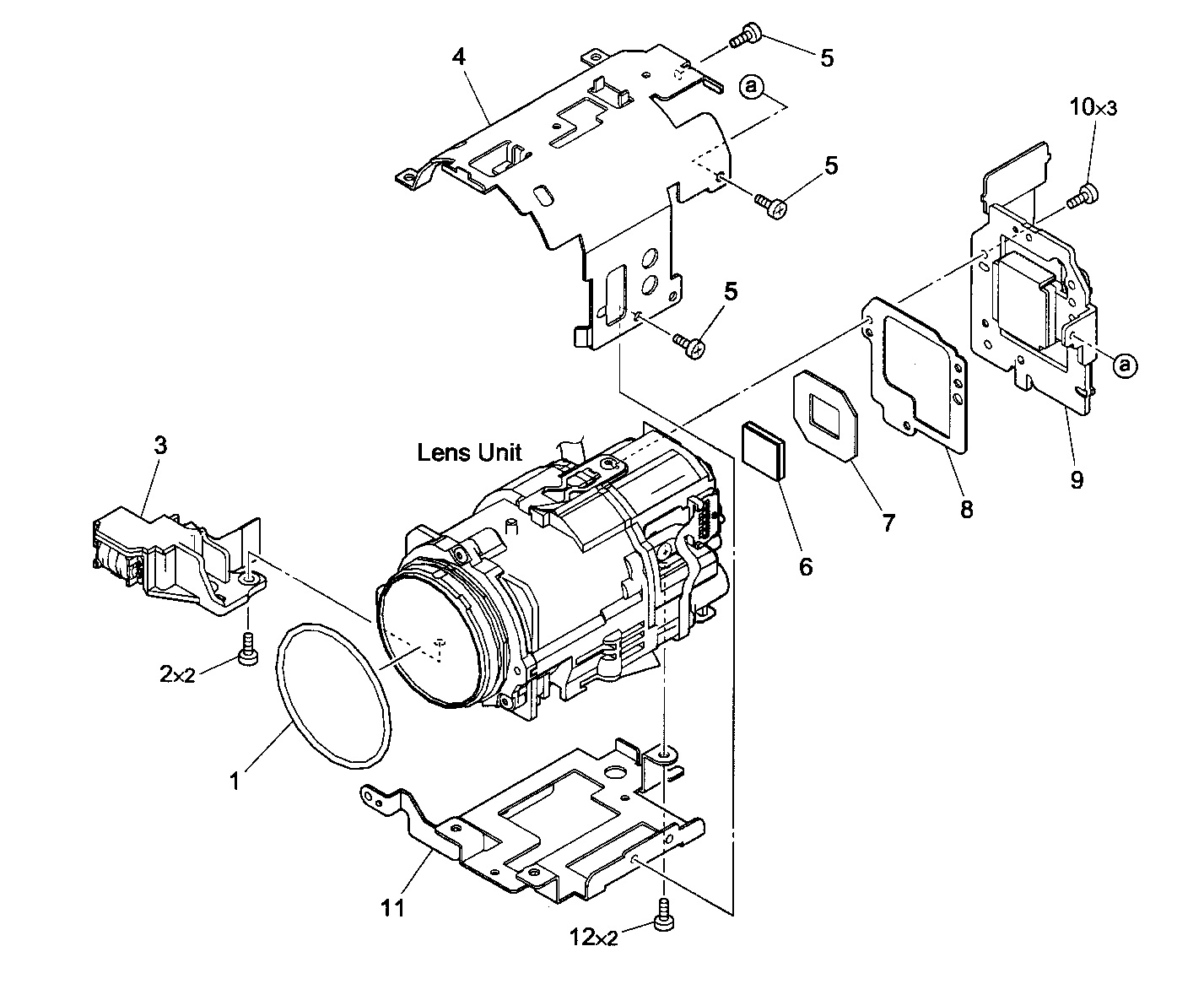

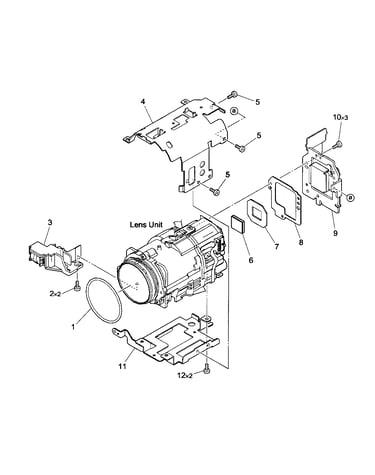

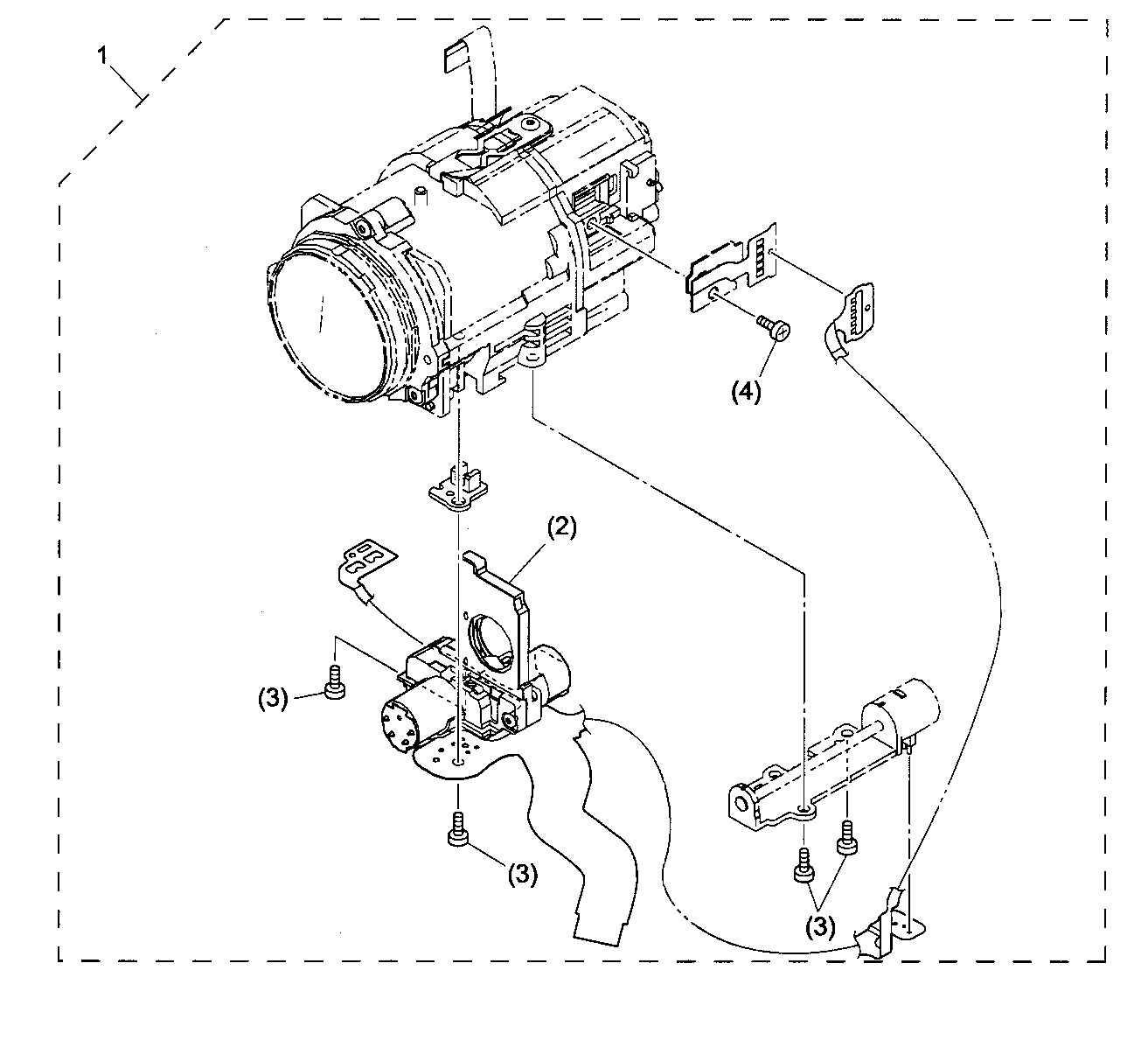

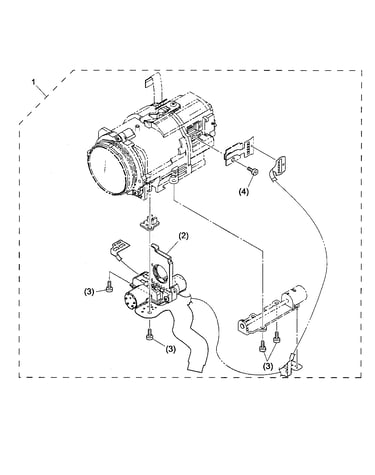

Camera unit diagram

Canon sensor assembly

Part #DY1-9125-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Hinge Cover DA3-6961-000
#18

Lcd unit diagram

Canon hinge cover

Part #DA3-6961-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover,ldc DA3-6964-000
#5

Lcd unit diagram

Canon cover,ldc

Part #DA3-6964-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Pcb Assembly DG3-2237-000
#19

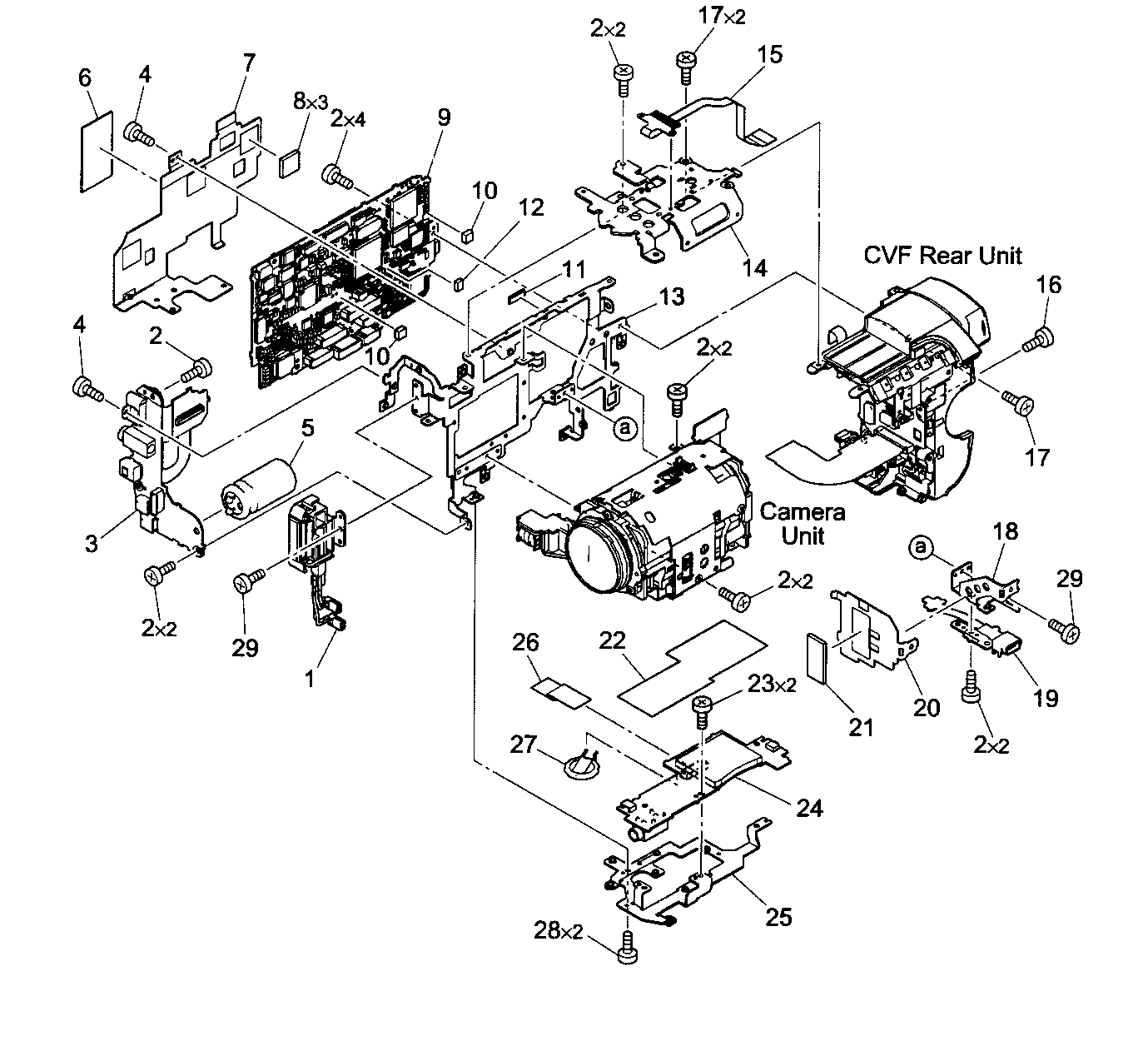

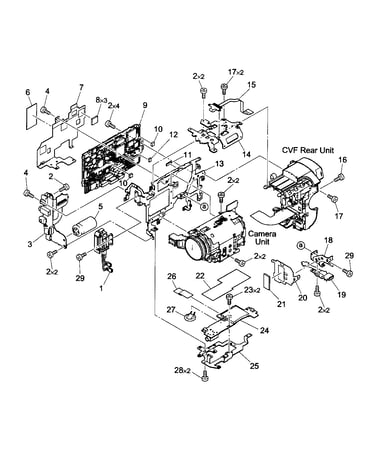

Casing parts 2 diagram

Canon pcb assembly

Part #DG3-2237-000

The manufacturer no longer makes this part, and there's no substitute part
