Model # 9350-3 Official Generac generator

Here are the diagrams and repair parts for Official Generac 9350-3 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

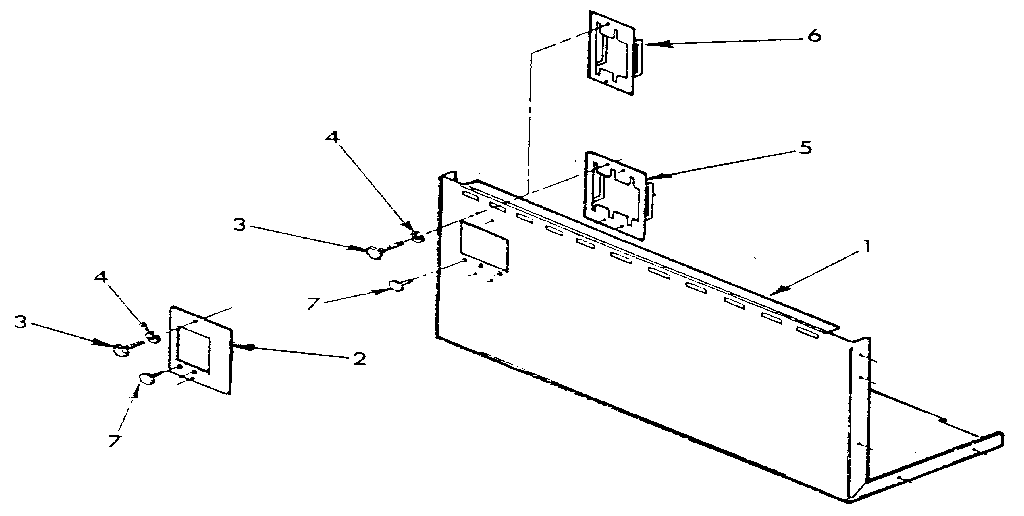

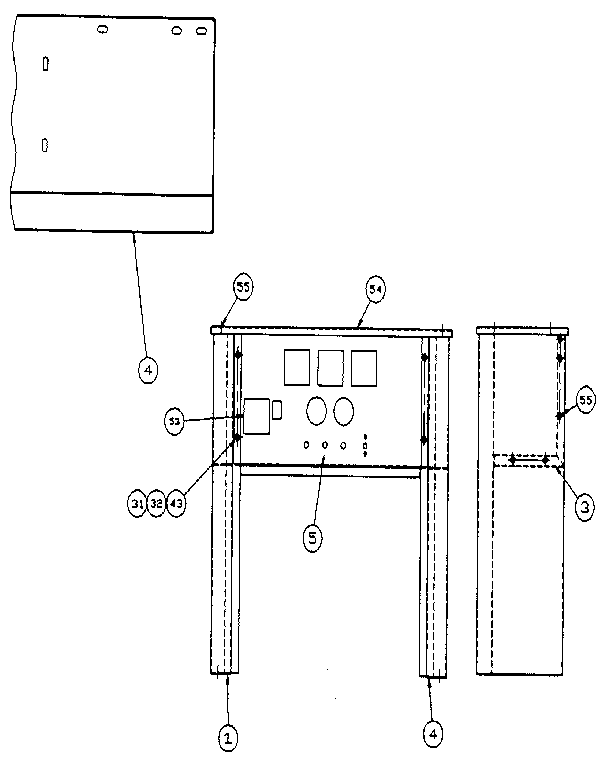

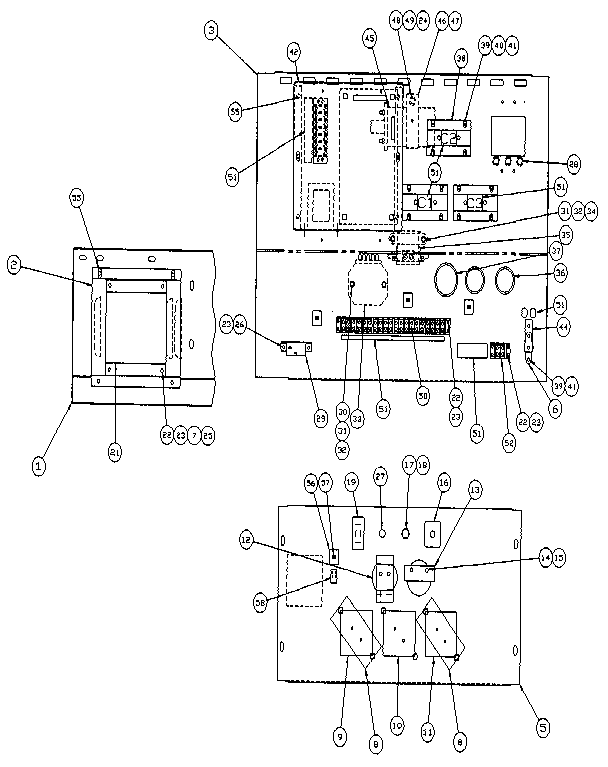

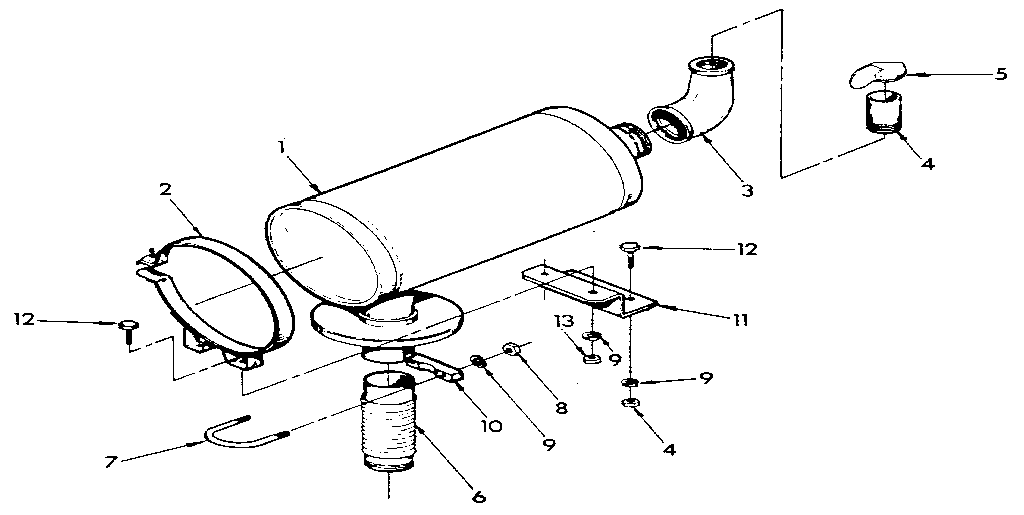

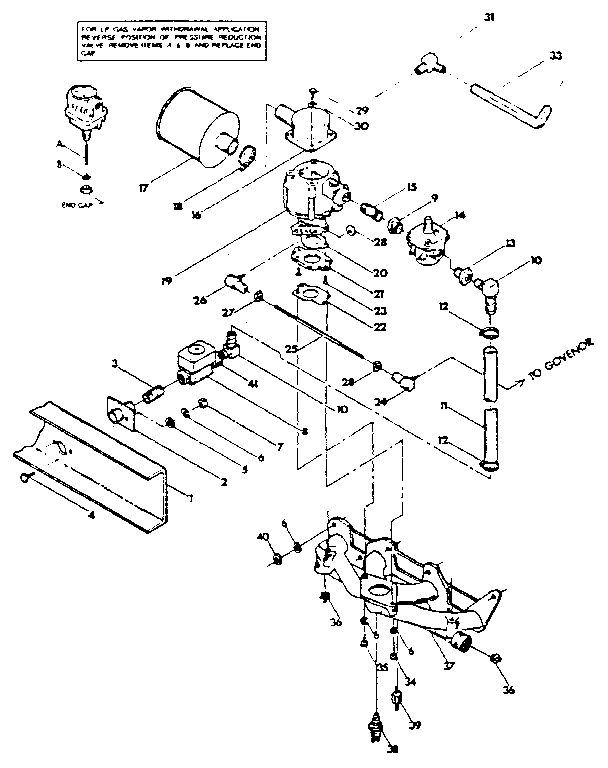

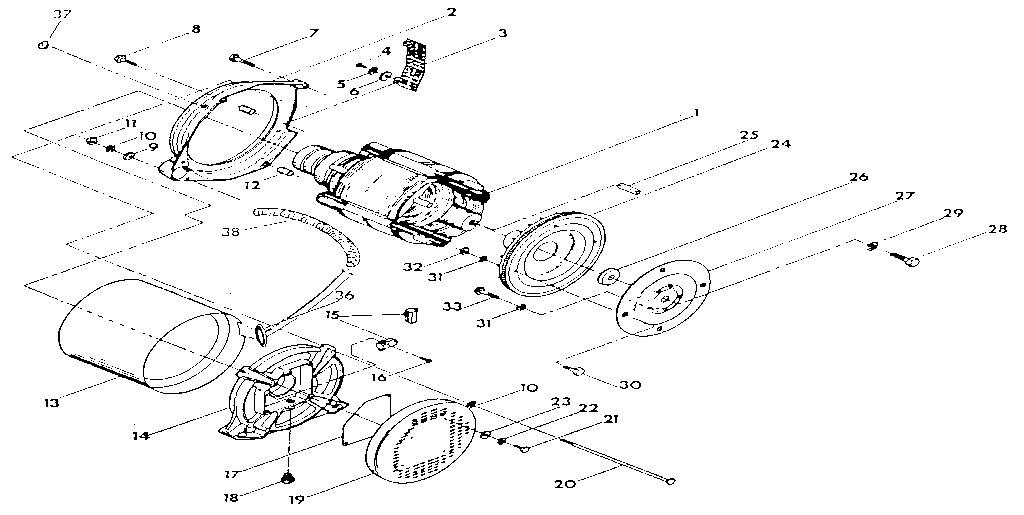

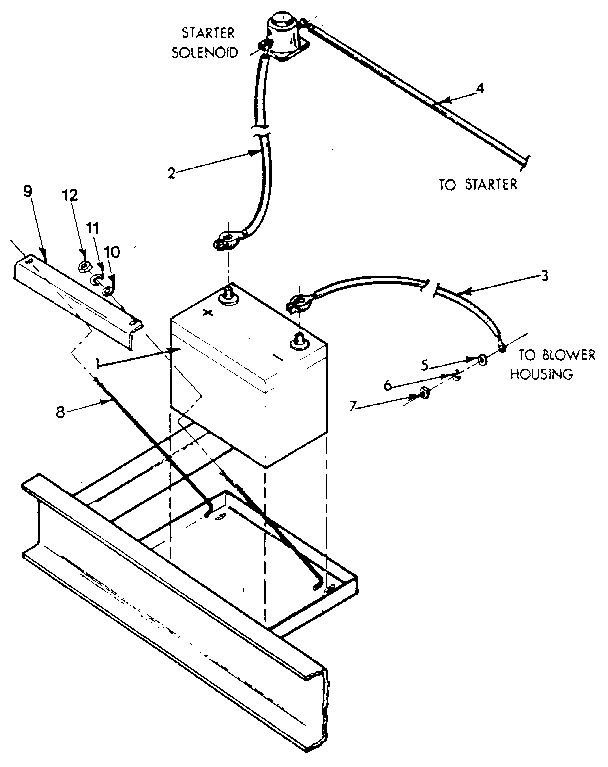

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 257 parts |

#11

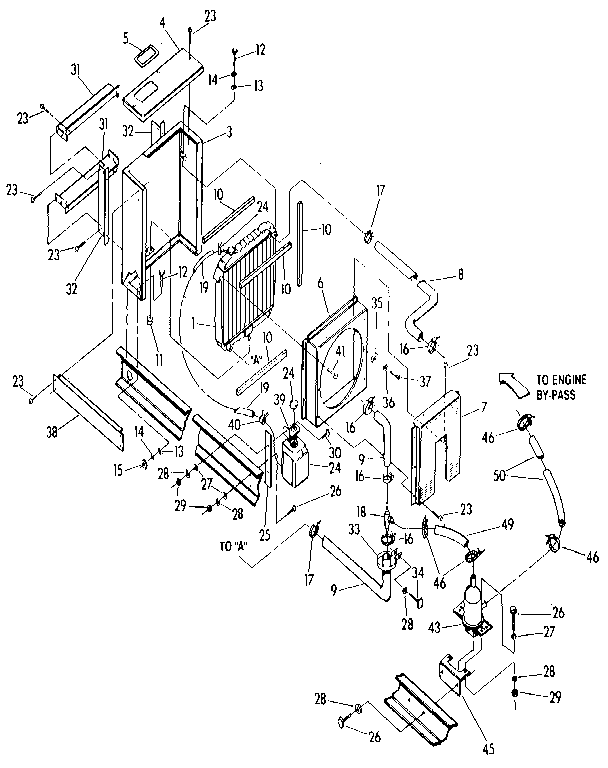

Radiator (models 9350-3 & 9351-3) diagram

Grommet

Part #30809

Replaced by #30809GS

This item is not returnable

$6.89 |

13% OFF Phone Price : $7.89

In Stock

Qty

Hex head

Part #42907

Replaced by #42907GS

This item is not returnable

$5.97

In Stock

Qty

Cap screw

Part #43116

Replaced by #43116GS

This item is not returnable

$5.83

In Stock

Qty

#35

Radiator (models 9350-3 & 9351-3) diagram

Hose clip

Part #65852

Replaced by #65852GS

$18.03

In Stock

Qty

#10

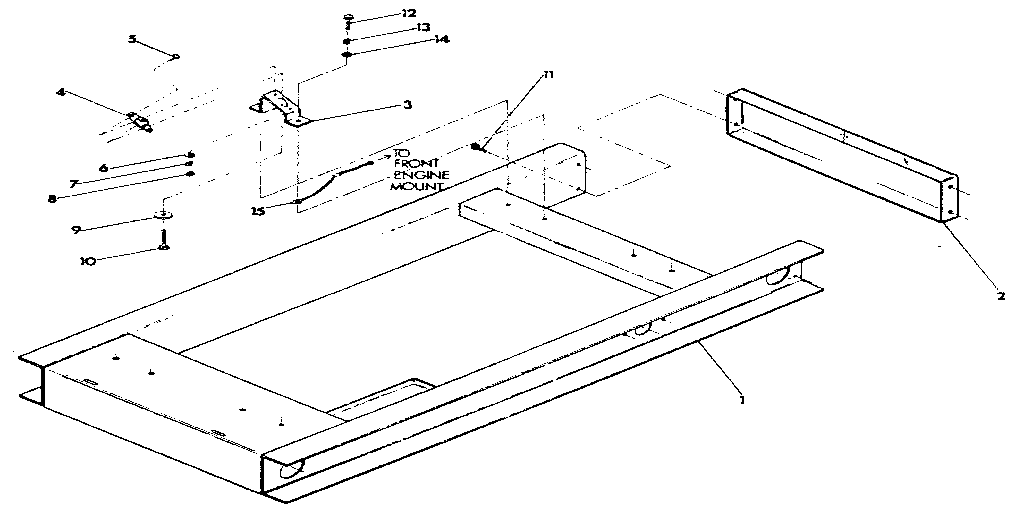

Mounting base diagram

Screw

Part #51730

Replaced by #51730GS

This item is not returnable

$5.77

In Stock

Qty

Cable tie

Part #57593

Replaced by #57593GS

$9.94

In Stock

Qty

#72

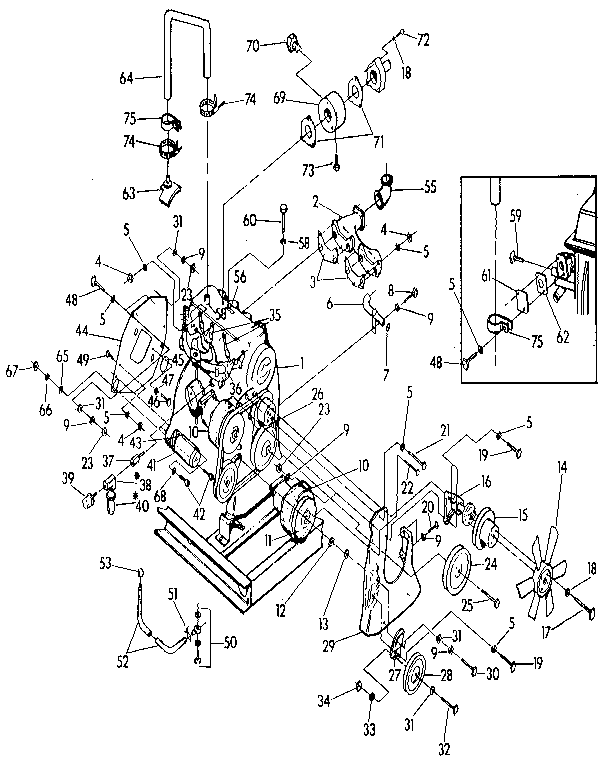

Engine (models 9350-3 and 9351-3) diagram

Screw

Part #51767

Replaced by #51767GS

This item is not returnable

$5.97

In Stock

Qty

Screw

Part #75475

Replaced by #75475GS

This item is not returnable

$6.89

In Stock

Qty

#39

Engine (models 9350-3 and 9351-3) diagram

Switch

Part #60108

Replaced by #0D9235BSRV

$59.23 |

9% OFF Phone Price : $65.23

In Stock

Qty

Scr pphm

Part #75476

Replaced by #75476GS

This item is not returnable

$5.77

In Stock

Qty
