White-Westinghouse
Room Air Conditioner

Model # AC064M7A1 Official White-Westinghouse room air conditioner - lw34089260

Here are the diagrams and repair parts for Official White-Westinghouse AC064M7A1 room air conditioner - lw34089260, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw 08012954
#14

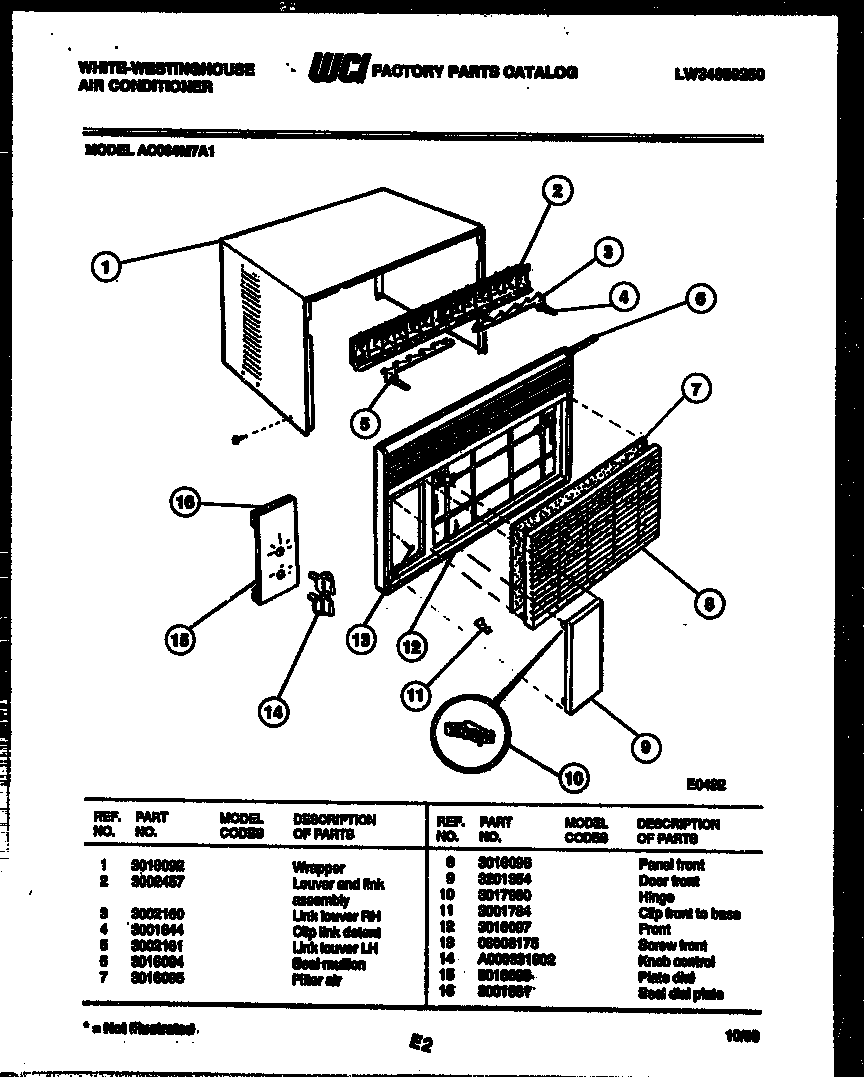

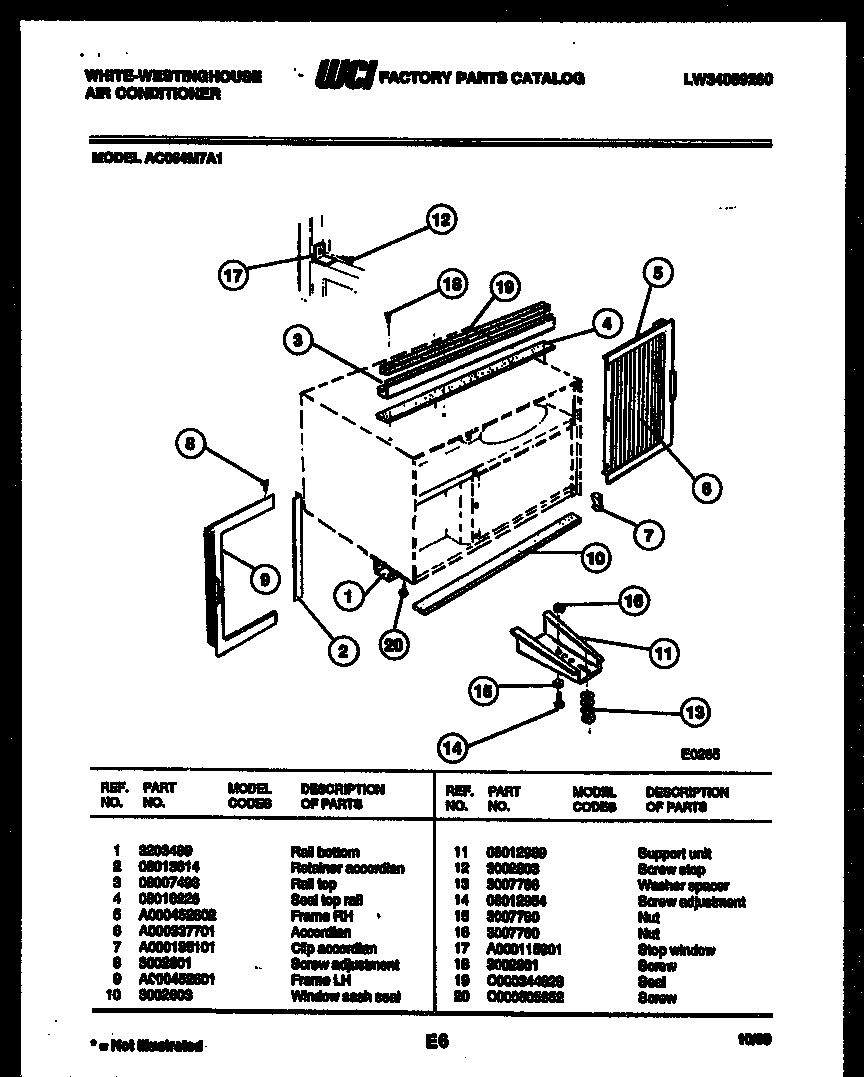

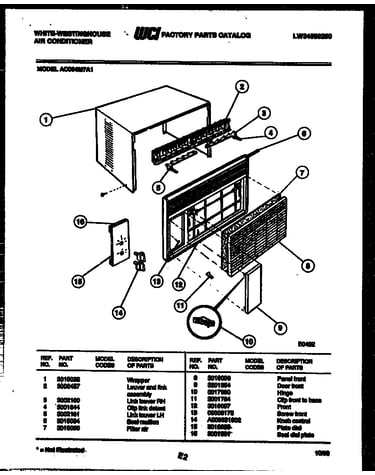

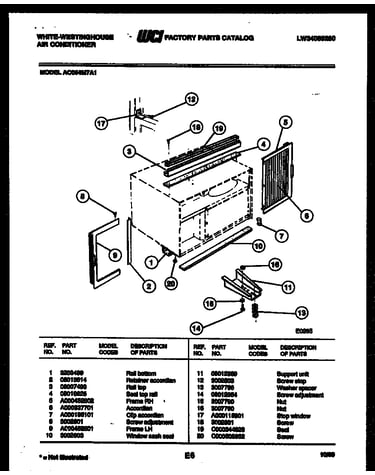

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Washer 3007766
#13

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#3

Cabinet and installation parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Frigidaire Fan 08006812
#3

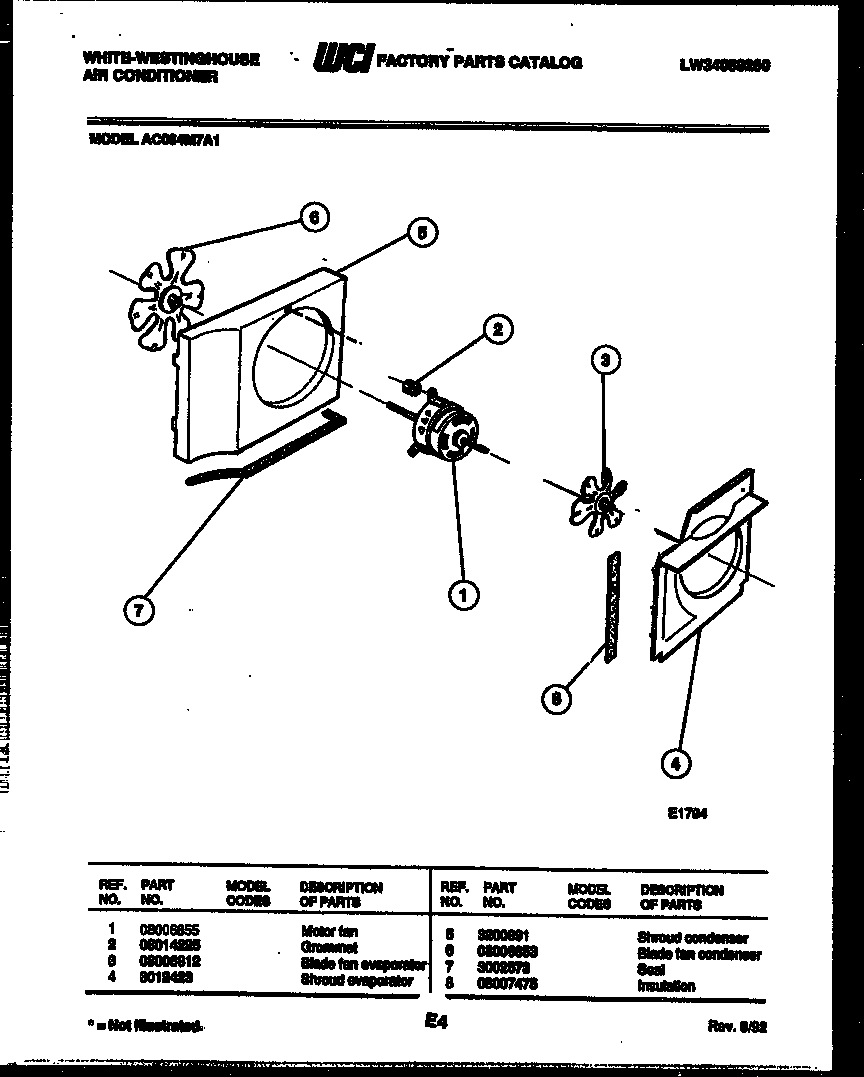

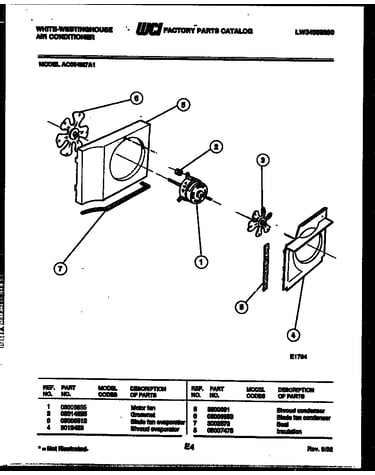

Air handling parts diagram

Frigidaire fan

Part #08006812

$39.99
In Stock
Gasket 3002603
#10

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Filter A000265301
#1

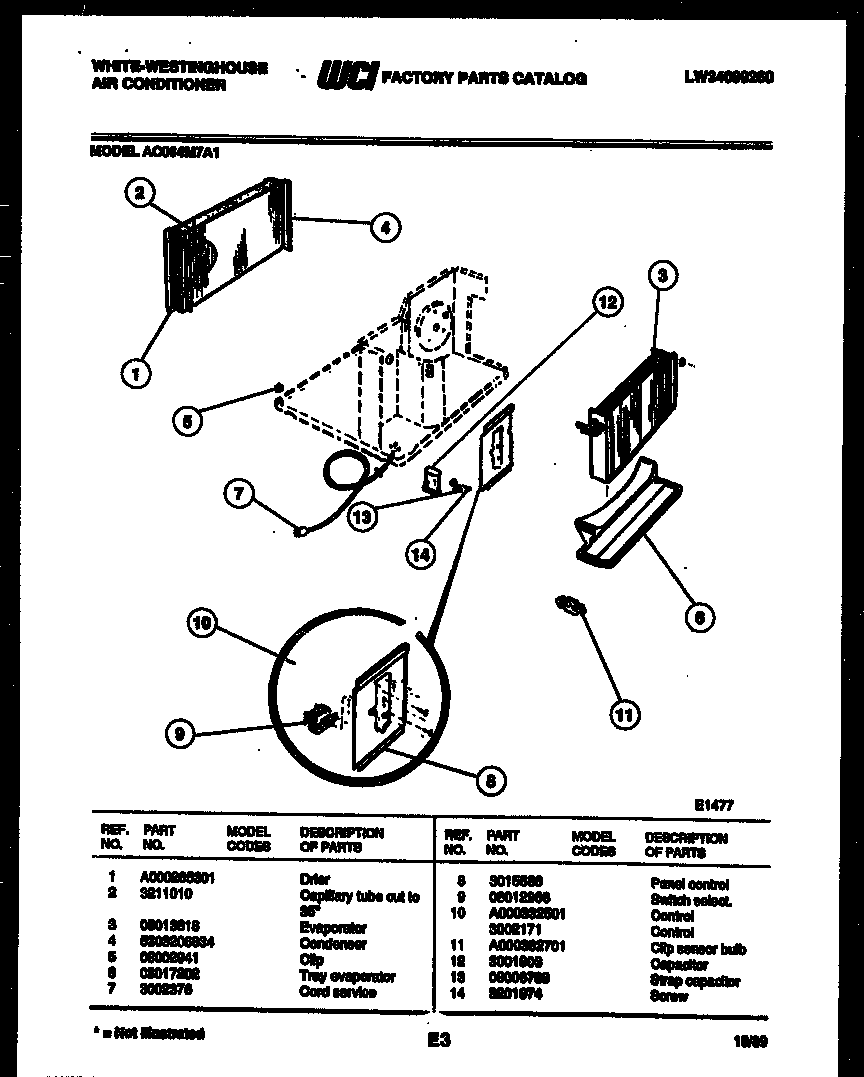

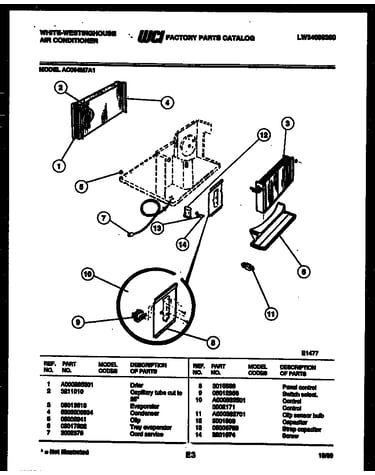

Electrical parts diagram

Filter

Part #A000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces A000265301. Substitute parts can look different from the original.
$212.62
In Stock
Spring 08002987
#8

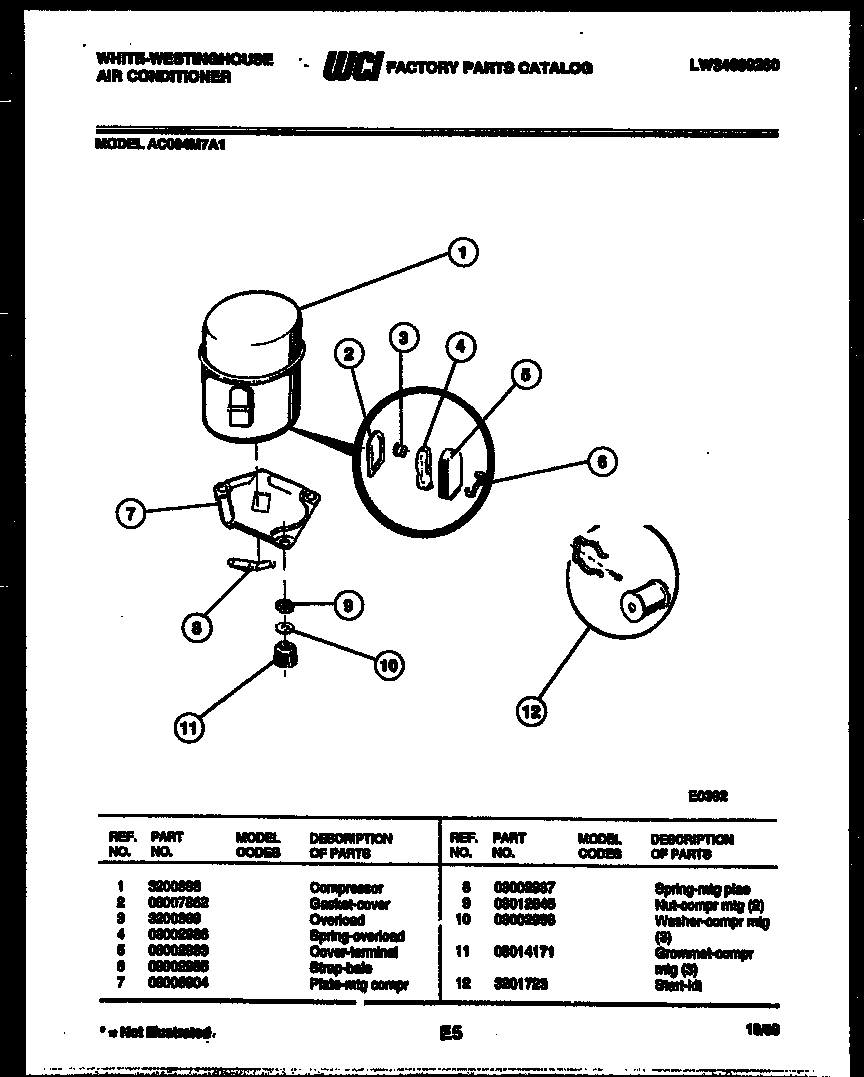

Compressor parts diagram

Spring

Part #08002987

Replaced by #5308002987

?
Manufacturer substitution
This part replaces 08002987. Substitute parts can look different from the original.
$7.99
In Stock
Frame Closure A000452602
#5

Cabinet and installation parts diagram

Frame closure

Part #A000452602

The manufacturer no longer makes this part, and there's no substitute part

Clip 08002941
#5

Electrical parts diagram

Clip

Part #08002941

The manufacturer no longer makes this part, and there's no substitute part

Seal 3002573
#7

Air handling parts diagram

Seal

Part #3002573

The manufacturer no longer makes this part, and there's no substitute part
