Model # T9MPD100J14A1 Official ICP 90+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP T9MPD100J14A1 90+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#14

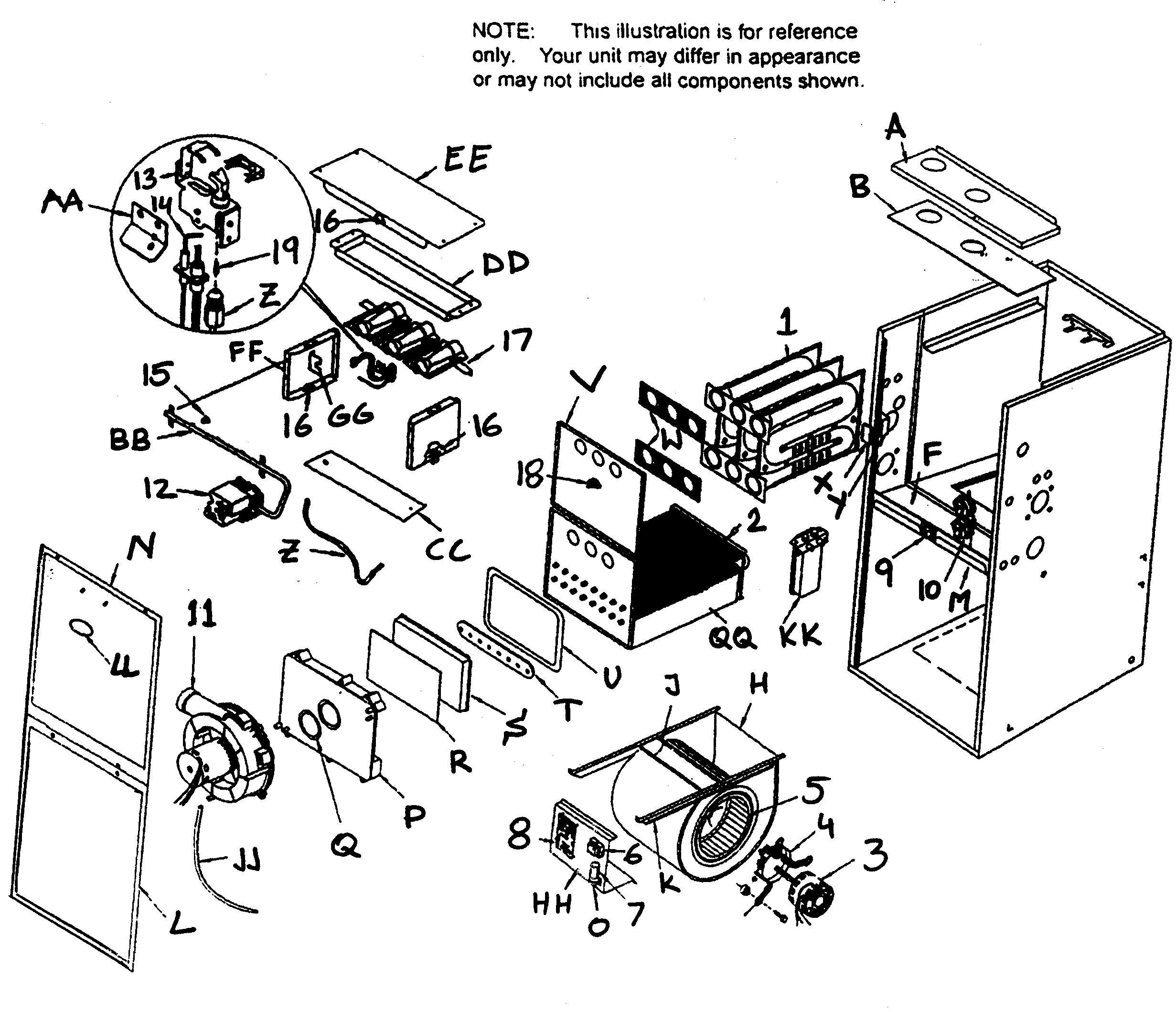

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Blower 1013188
#11

Furnace diagram

Furnace blower

Part #1013188

Replaced by #1172823

?
Manufacturer substitution
This part replaces 1013188. Substitute parts can look different from the original.
$214.67 |
5% OFF Phone Price : $226.67
In Stock
Transition 1012282
#P

Furnace diagram

Transition

Part #1012282

Replaced by #1172229

?
Manufacturer substitution
This part replaces 1012282. Substitute parts can look different from the original.
$103.84
Back Order
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Gasket 1012595
#U

Furnace diagram

Gasket

Part #1012595

$22.91
In Stock
Vent 1012697
#NI

Furnace diagram

Vent

Part #1012697

$23.53
In Stock
Board 1012419
#R

Furnace diagram

Board

Part #1012419

$189.14
In Stock
Furnace Temperature Limit Switch 1013102
#16

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Clamp Capctr 1095020
#O

Furnace diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Bottom 1012335
#CC

Furnace diagram

Bottom

Part #1012335

This item is not returnable
$3.63
In Stock
