Reciprocating Saw

Model # DW937TY1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt DW937TY1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Craftsman Grease 283484-01
#801

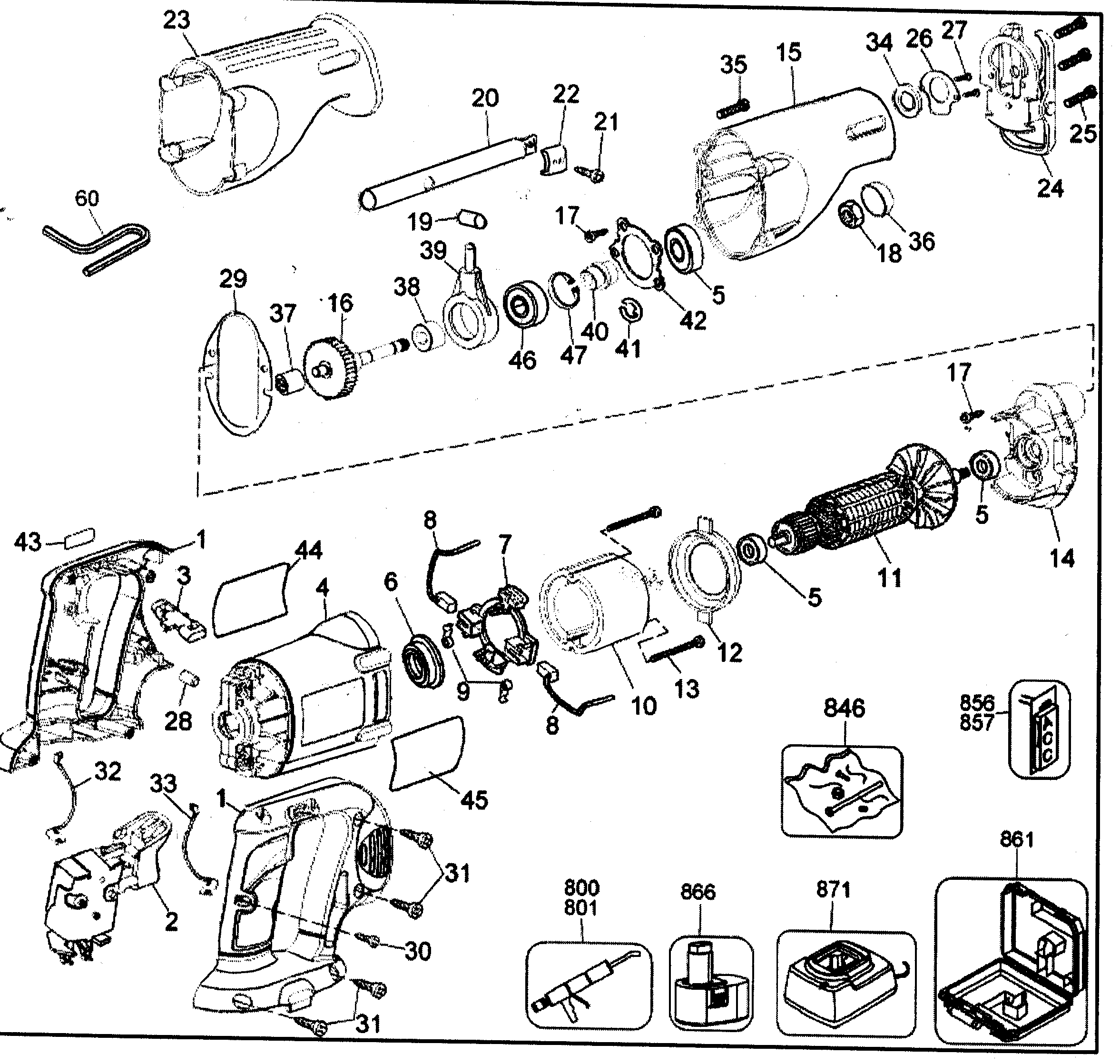

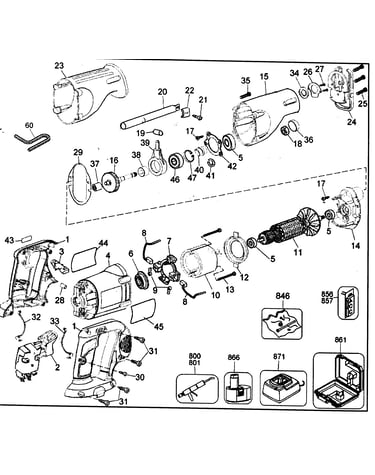

Saw diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush 387558-01
#8

Saw diagram

Reciprocating saw motor brush

Part #387558-01

The manufacturer no longer makes this part, and there's no substitute part

Wrist Pin 382187-00
#19

Saw diagram

Wrist pin

Part #382187-00

The manufacturer no longer makes this part, and there's no substitute part

Field Case 382177-00
#4

Saw diagram

Field case

Part #382177-00

The manufacturer no longer makes this part, and there's no substitute part

Wire 382630-00
#33

Saw diagram

Wire

Part #382630-00

The manufacturer no longer makes this part, and there's no substitute part

Label 382816-00
#43

Saw diagram

Label

Part #382816-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#9

Saw diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Boot 382194-00
#23

Saw diagram

Boot

Part #382194-00

The manufacturer no longer makes this part, and there's no substitute part

Retainer 383668-00
#42

Saw diagram

Retainer

Part #383668-00

The manufacturer no longer makes this part, and there's no substitute part

Retainer 382189-00
#26

Saw diagram

Retainer

Part #382189-00

The manufacturer no longer makes this part, and there's no substitute part
