Model # A27A11D Official Zenith color television receiver

Here are the diagrams and repair parts for Official Zenith A27A11D color television receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Ac Cord A-18588-01

#NI

All parts diagram

Ac cord

Part #A-18588-01

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 206-03370

#NI

All parts diagram

Owner's manual

Part #206-03370

The manufacturer no longer makes this part, and there's no substitute part

Module 009-01791

#NI

All parts diagram

Module

Part #009-01791

The manufacturer no longer makes this part, and there's no substitute part

Loc-9:picture Tube Crt A68AGD02X

#NI

All parts diagram

Loc-9:picture tube crt

Part #A68AGD02X

The manufacturer no longer makes this part, and there's no substitute part

Yoke Deflc 095-03797-05

#NI

All parts diagram

Yoke deflc

Part #095-03797-05

The manufacturer no longer makes this part, and there's no substitute part

Crt CA68ADT31X01
#NI

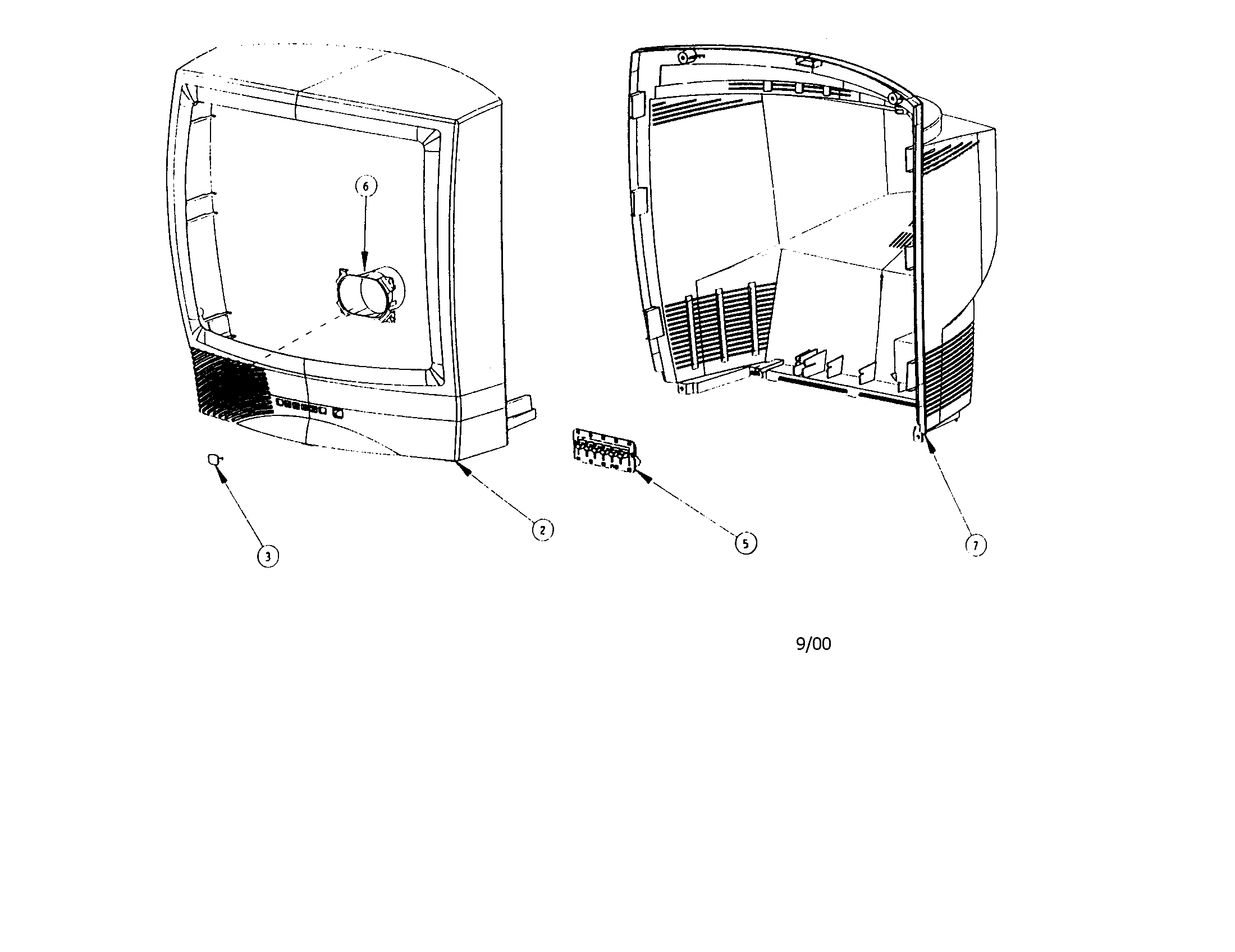

Tv diagram

Crt

Part #CA68ADT31X01

The manufacturer no longer makes this part, and there's no substitute part

Knob 046-10578
#5

Tv diagram

Knob

Part #046-10578

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 923-3349

#NI

All parts diagram

Service manual

Part #923-3349

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front 014-12305-06
#2

Tv diagram

Cabinet front

Part #014-12305-06

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 014-12304-01
#7

Tv diagram

Cabinet

Part #014-12304-01

The manufacturer no longer makes this part, and there's no substitute part
