Model # NTN5125BKC2 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTN5125BKC2 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Cap Rnrd 1094956
#8

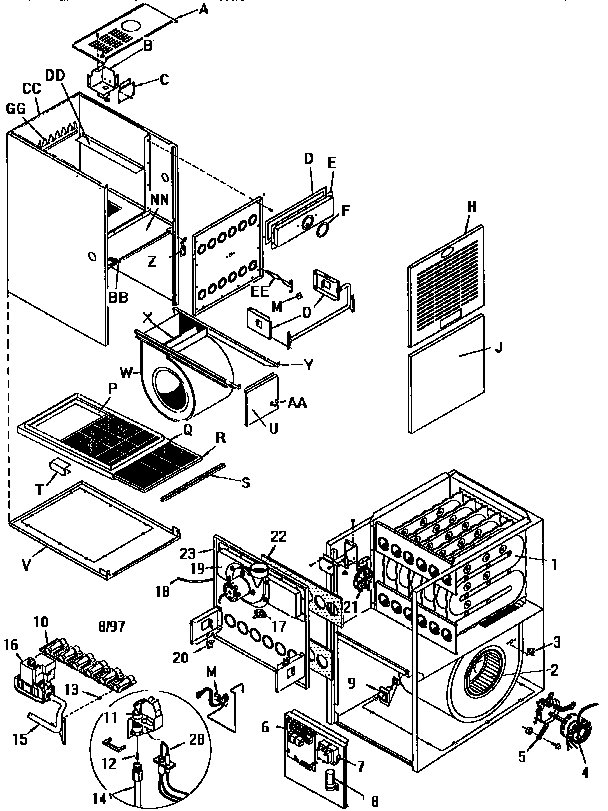

Unit parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Blower Assembly 1010975
#19

Unit parts diagram

Furnace blower assembly

Part #1010975

Replaced by #1013833

?
Manufacturer substitution
This part replaces 1010975. Substitute parts can look different from the original.
$237.41 |
5% OFF Phone Price : $249.41
In Stock
Blower Wheel 1009147
#2

Unit parts diagram

Blower wheel

Part #1009147

Replaced by #1011420

?
Manufacturer substitution
This part replaces 1009147. Substitute parts can look different from the original.
$160.43 |
7% OFF Phone Price : $172.43
In Stock
Limit Switch 1005549
#20

Unit parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Valve-nat 1011024
#16

Unit parts diagram

Valve-nat

Part #1011024

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1011024. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Arcoaire Door Blowe 1010192
#J

Unit parts diagram

Arcoaire door blowe

Part #1010192

$183.94
In Stock
Gskt Htx Bnr 2480907
#22

Unit parts diagram

Gskt htx bnr

Part #2480907

This item is not returnable
$7.46
In Stock
Rail Galv Bl 57059
#BB

Unit parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Clamp Capctr 1095020
#AA

Unit parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Conv Kit 1160992

#NI

All parts diagram

Conv kit

Part #1160992

$103.50
In Stock
