Hoover
Upright Vacuum

Model # U5167900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5167900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Carpet Cleaner Screw 21447269
Carpet cleaner screw

Part #21447269

The manufacturer no longer makes this part, and there's no substitute part

Ribbed Shoe 013261AY
#10

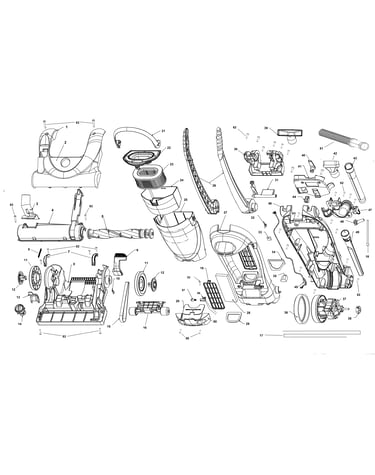

Complete assembly diagram

Ribbed shoe

Part #013261AY

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Door 37248005
#20

Complete assembly diagram

Vacuum door

Part #37248005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Trunnion Bracket 36131118
#7

Complete assembly diagram

Vacuum trunnion bracket

Part #36131118

The manufacturer no longer makes this part, and there's no substitute part

Spring 38335026
#6

Complete assembly diagram

Spring

Part #38335026

The manufacturer no longer makes this part, and there's no substitute part

Duct Seal 38783032
#34

Complete assembly diagram

Duct seal

Part #38783032

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 40130050
#23

Complete assembly diagram

Vacuum filter

Part #40130050

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 36215028
#48

Complete assembly diagram

Vacuum power cord strain relief

Part #36215028

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 48414127
#5

Complete assembly diagram

Vacuum beater bar

Part #48414127

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal 38785019
#29

Complete assembly diagram

Inlet seal

Part #38785019

The manufacturer no longer makes this part, and there's no substitute part
