Kenmore
Gas Water Heater

Model # 183337610 Official Kenmore 75 gas water heater

Here are the diagrams and repair parts for Official Kenmore 183337610 75 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Insulation Retainer 119519
#16

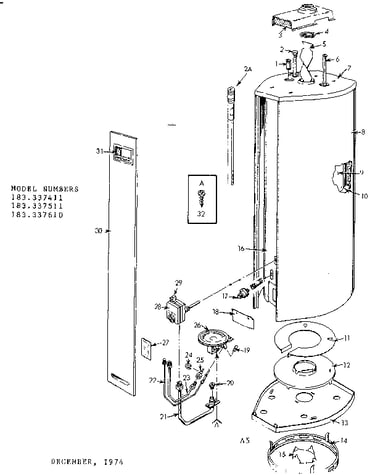

Replacement parts diagram

Insulation retainer

Part #119519

The manufacturer no longer makes this part, and there's no substitute part

Knob Pilot On-off F145-0086
#29

Replacement parts diagram

Knob pilot on-off

Part #F145-0086

The manufacturer no longer makes this part, and there's no substitute part

Restrictor, Flue 055016
#4

Replacement parts diagram

Restrictor, flue

Part #055016

The manufacturer no longer makes this part, and there's no substitute part

F/153.333610 013138
#10B

Replacement parts diagram

F/153.333610

Part #013138

The manufacturer no longer makes this part, and there's no substitute part

F/183.334710 008054
#11B

Replacement parts diagram

F/183.334710

Part #008054

The manufacturer no longer makes this part, and there's no substitute part

F/183.337610 119590
#8C

Replacement parts diagram

F/183.337610

Part #119590

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 119582
#30

Replacement parts diagram

Access panel

Part #119582

The manufacturer no longer makes this part, and there's no substitute part

Anode, Mag Primary 016010
#2

Replacement parts diagram

Anode, mag primary

Part #016010

The manufacturer no longer makes this part, and there's no substitute part

F/183.330913 051003
#23A

Replacement parts diagram

F/183.330913

Part #051003

The manufacturer no longer makes this part, and there's no substitute part

F/183.332210 & 183.333210 008030
#12

Replacement parts diagram

F/183.332210 & 183.333210

Part #008030

The manufacturer no longer makes this part, and there's no substitute part
