Model # MC2000MPP-P1154603M Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana MC2000MPP-P1154603M commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Kep Nut M0282010
#14

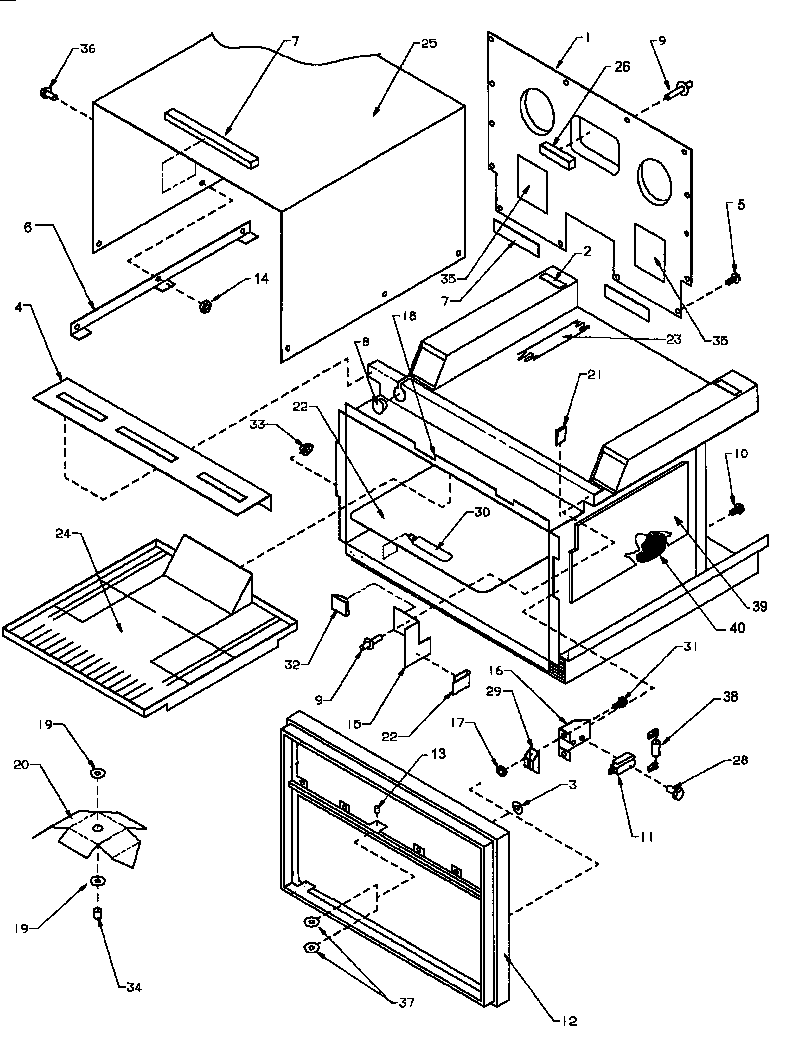

Cavity assembly & electrical components diagram

Kep nut

Part #M0282010

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces M0282010. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Head Screw M0211217
#10

Cavity assembly & electrical components diagram

Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Diode B8383102
#10

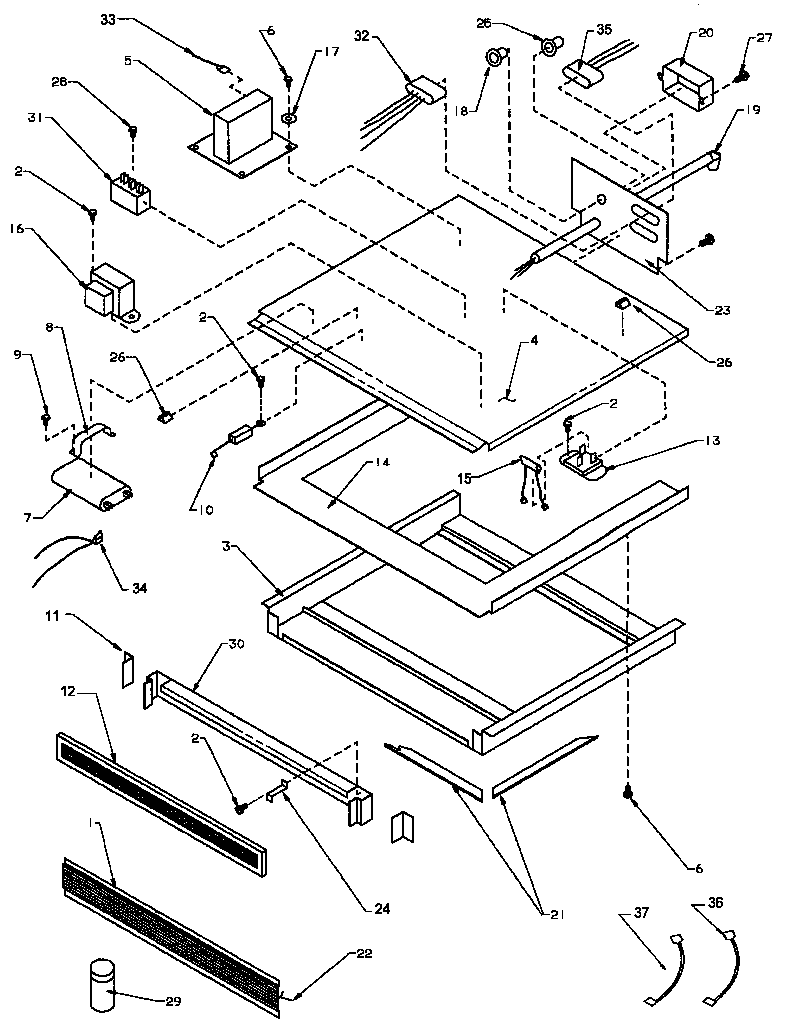

Chassis assembly & electrical components diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0211030
#24

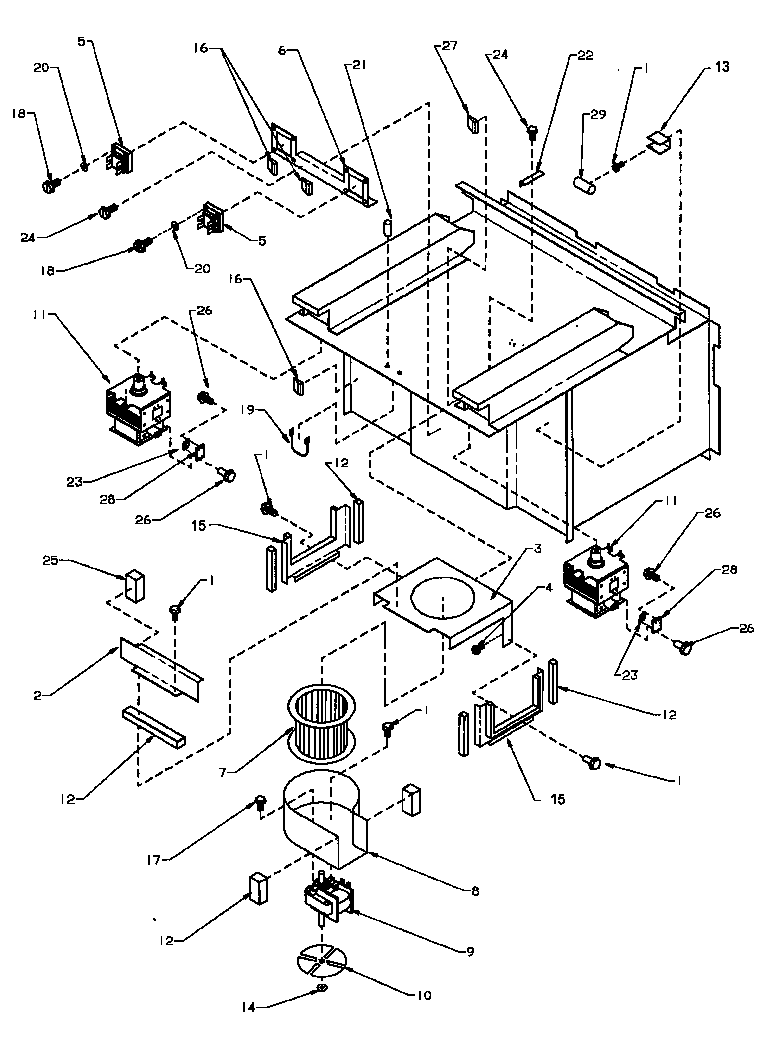

Cavity & chassis assembly & electrical components diagram

Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0234029
#7

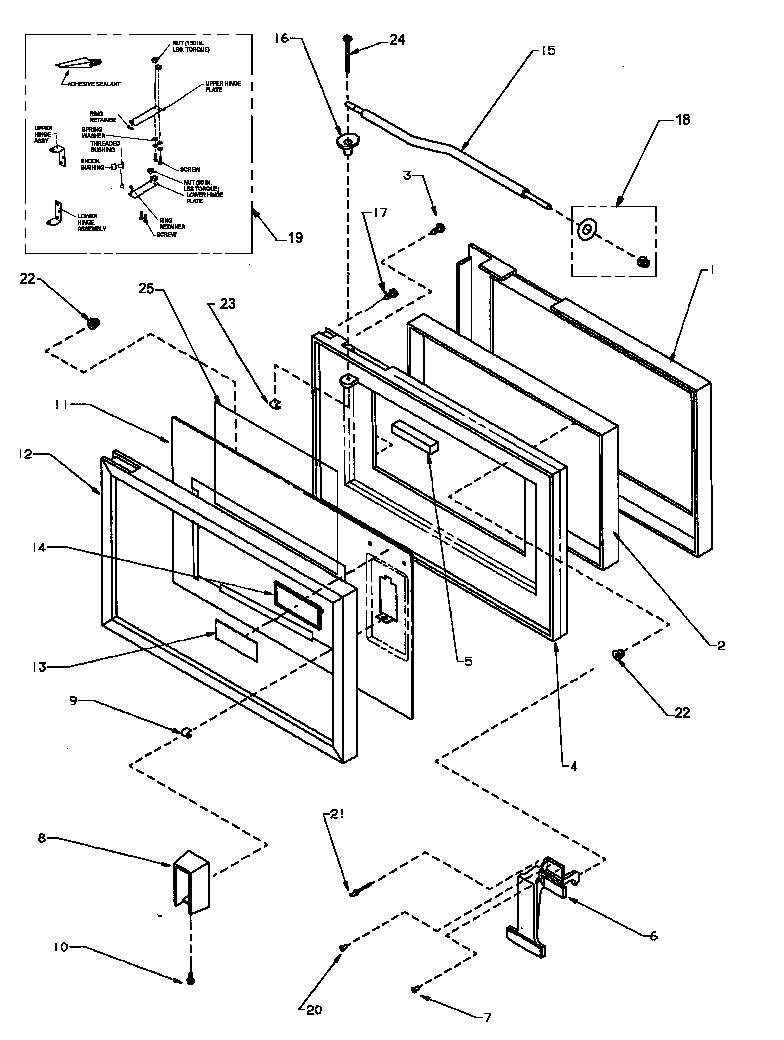

Door assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw M0234030
#20

Door assembly diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Terminal Block B5677203
#31

Chassis assembly & electrical components diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
#10

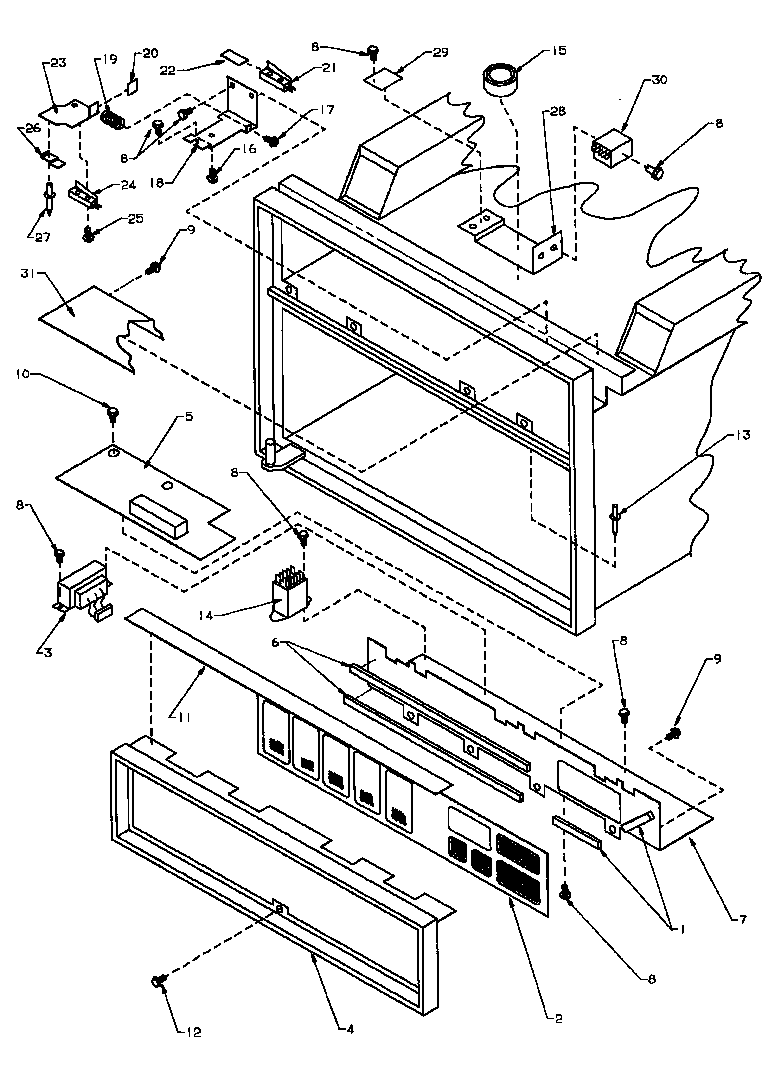

Control panel assembly diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
