Sharp
Countertop Microwave

Model # R-404FK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-404FK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Lcd RLCDSA107DRZZ
#3-5

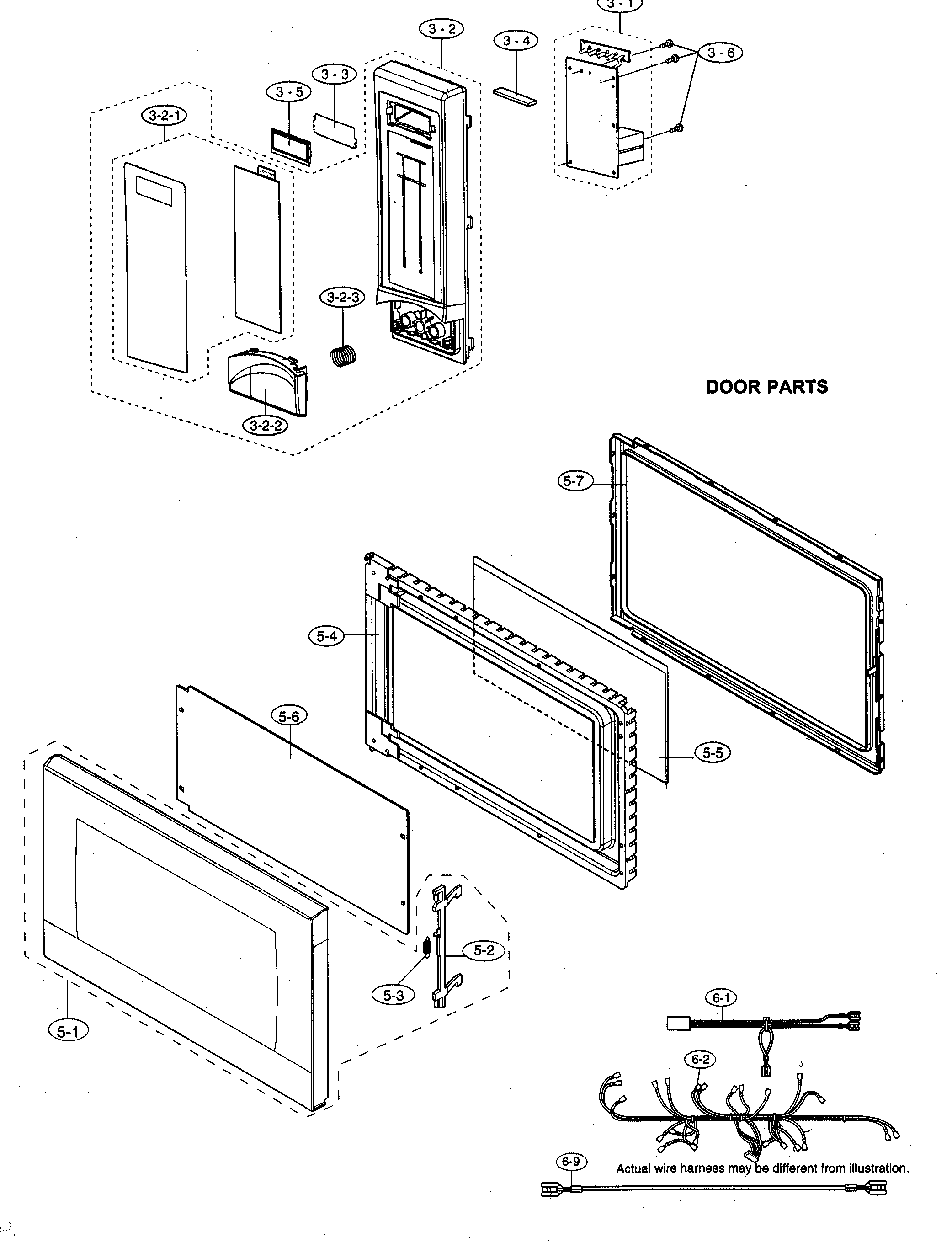

Control panel parts/door parts diagram

Lcd

Part #RLCDSA107DRZZ

The manufacturer no longer makes this part, and there's no substitute part

Lcd Sheet PSHEPA798WREZ
#3-3

Control panel parts/door parts diagram

Lcd sheet

Part #PSHEPA798WREZ

The manufacturer no longer makes this part, and there's no substitute part

Fuse QFS-TA050WRZZ
#1-8

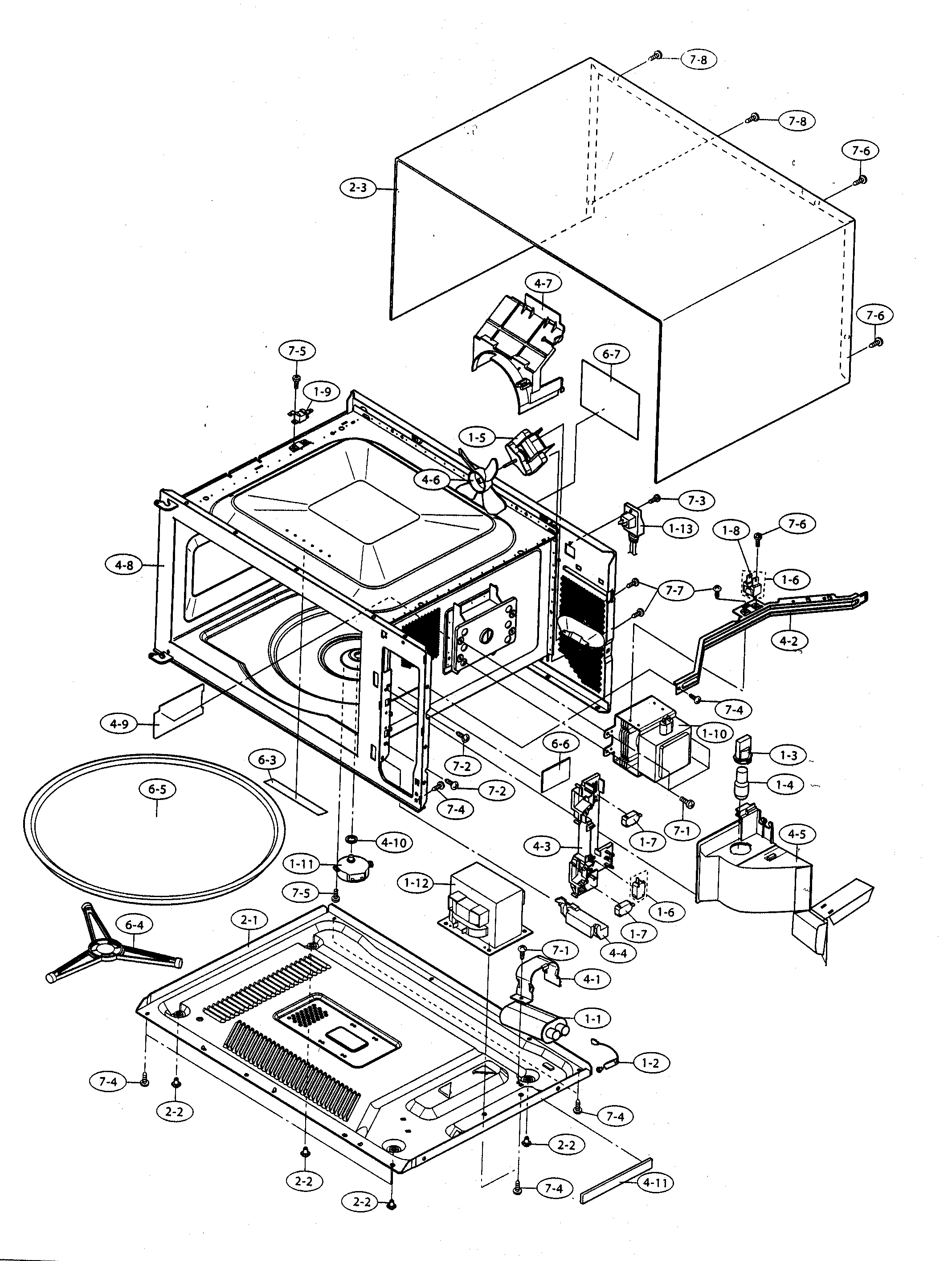

Oven cabinet parts diagram

Fuse

Part #QFS-TA050WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch And Fuse FFS-BA019/KIT
#1-6

Oven cabinet parts diagram

Microwave door interlock switch and fuse

Part #FFS-BA019/KIT

The manufacturer no longer makes this part, and there's no substitute part

Microwave Electronic Control Board CPWBFB063MRU0
#3-1

Control panel parts/door parts diagram

Microwave electronic control board

Part #CPWBFB063MRU0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNC-B001MRE0
#3-4

Control panel parts/door parts diagram

Connector

Part #QCNC-B001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Duct PDUC-B120MRF0A
#4-5

Oven cabinet parts diagram

Duct

Part #PDUC-B120MRF0A

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB006MRE0
#4-6

Oven cabinet parts diagram

Fan blade

Part #NFANPB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#1-11

Oven cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Latch LSTPPB021MRF0
#5-2

Control panel parts/door parts diagram

Latch

Part #LSTPPB021MRF0

The manufacturer no longer makes this part, and there's no substitute part
