Craftsman
Hedge Trimmer

Model # 31585710 Official Craftsman 22" hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 31585710 22" hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Blade Assembly 2-616047-01
#29

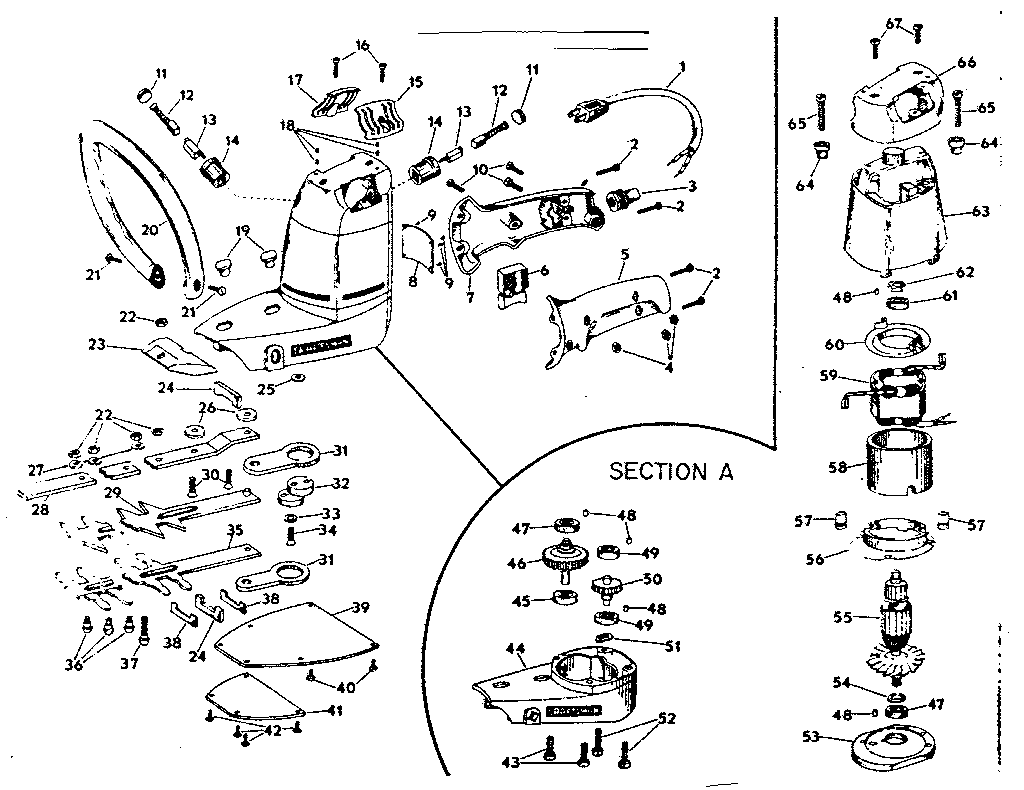

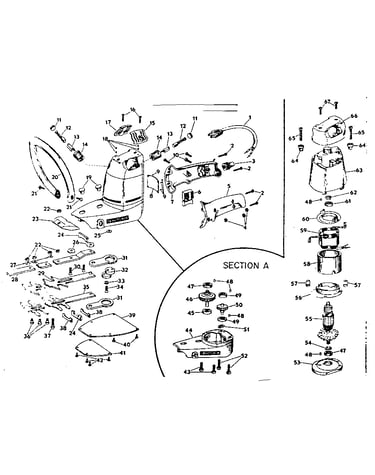

Unit parts diagram

Blade assembly

Part #2-616047-01

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 2-616046-01
#35

Unit parts diagram

Blade assembly

Part #2-616046-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-622931-03
#16

Unit parts diagram

Screw

Part #1-622931-03

The manufacturer no longer makes this part, and there's no substitute part

Cover 4-613847-05
#53

Unit parts diagram

Cover

Part #4-613847-05

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 1-615538-01
#61

Unit parts diagram

Ball brg

Part #1-615538-01

The manufacturer no longer makes this part, and there's no substitute part

Access Cover 3-614034-03
#15

Unit parts diagram

Access cover

Part #3-614034-03

The manufacturer no longer makes this part, and there's no substitute part

Support Bar 3-616071-02
#28

Unit parts diagram

Support bar

Part #3-616071-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-703432-11
#65

Unit parts diagram

Screw

Part #1-703432-11

The manufacturer no longer makes this part, and there's no substitute part

Drive Screw 1-795247-06
#9

Unit parts diagram

Drive screw

Part #1-795247-06

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1-930687-02
#18

Unit parts diagram

Set screw

Part #1-930687-02

The manufacturer no longer makes this part, and there's no substitute part
