Model # 11321371 Official Craftsman 15-1 drill press

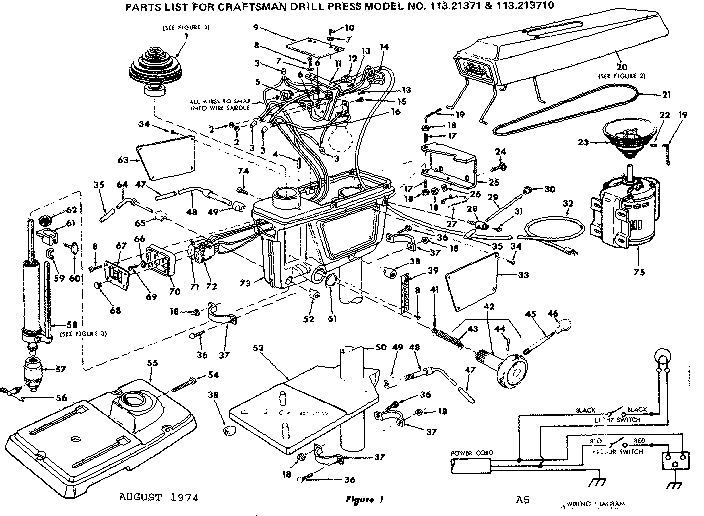

Here are the diagrams and repair parts for Official Craftsman 11321371 15-1 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Thumb Screw 60191
#60

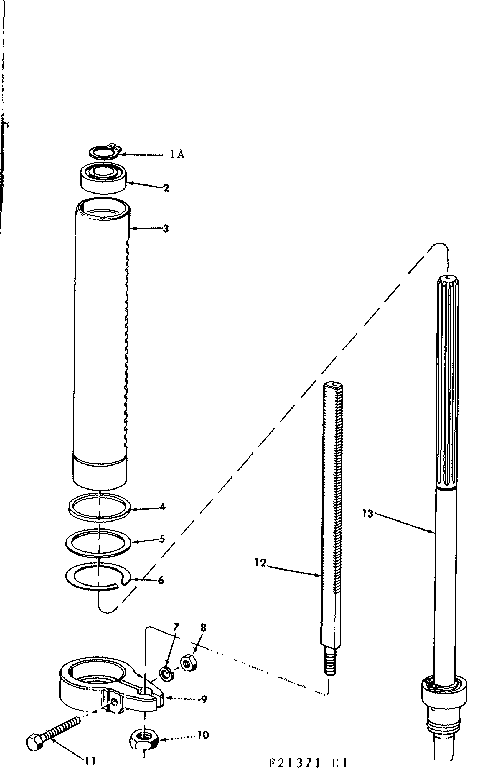

2 inch drill press diagram

Thumb screw

Part #60191

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Spindle 71077
#13

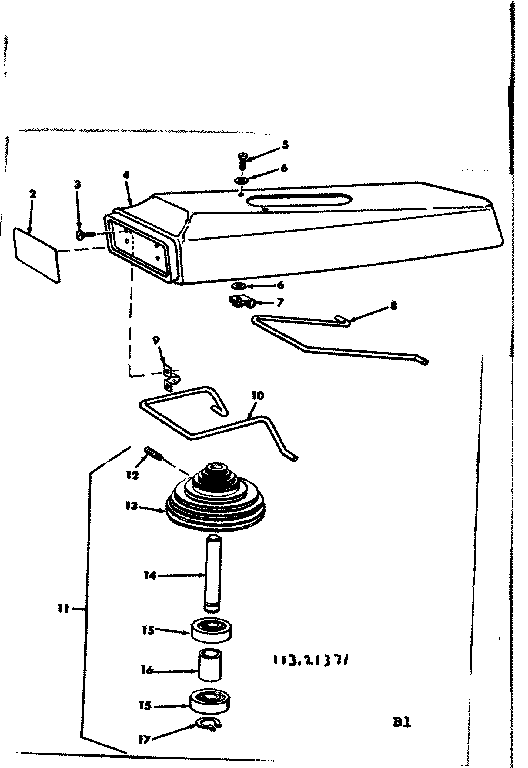

2 inch drill press diagram

Drill press spindle

Part #71077

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Feed Return Spring (replaces 38939) 38989
#43

2 inch drill press diagram

Drill press feed return spring (replaces 38939)

Part #38989

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Knob 38546
#46

2 inch drill press diagram

Power tool knob

Part #38546

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 3509
#2

2 inch drill press diagram

Power tool bearing

Part #3509

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD610805
#10

2 inch drill press diagram

Machine screw

Part #STD610805

This item is not returnable
$2.16
In Stock
Screw 60192
#12

2 inch drill press diagram

Screw

Part #60192

The manufacturer no longer makes this part, and there's no substitute part

Motor 70047
#75

2 inch drill press diagram

Motor

Part #70047

The manufacturer no longer makes this part, and there's no substitute part

Connector 71046
#3

2 inch drill press diagram

Connector

Part #71046

The manufacturer no longer makes this part, and there's no substitute part

Relief Str 37818
#12

2 inch drill press diagram

Relief str

Part #37818

The manufacturer no longer makes this part, and there's no substitute part
