Craftsman
Lawn & Garden Engine

Model # 143641022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143641022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Lawn Mower O-ring 631028
#25

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Bowl 631025
#16

Carburetor diagram

Fuel bowl

Part #631025

Replaced by #631867

?
Manufacturer substitution
This part replaces 631025. Substitute parts can look different from the original.
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
Back Order
Plug 27625
#25

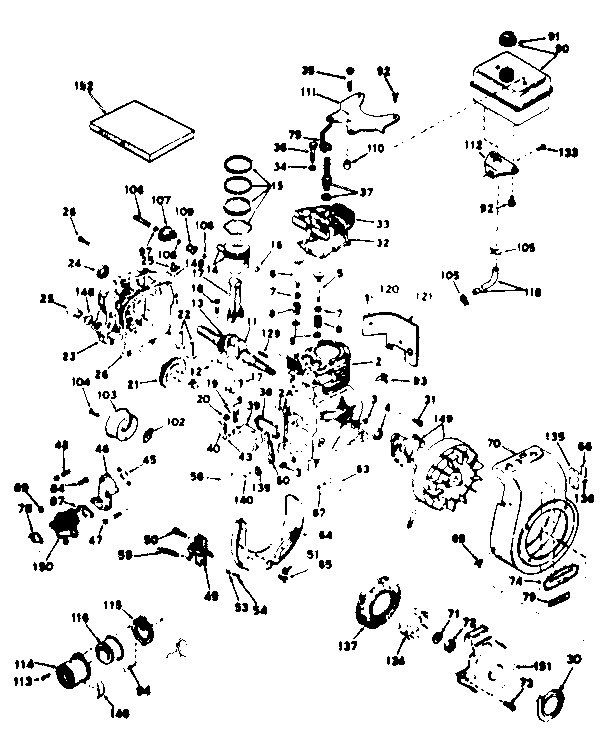

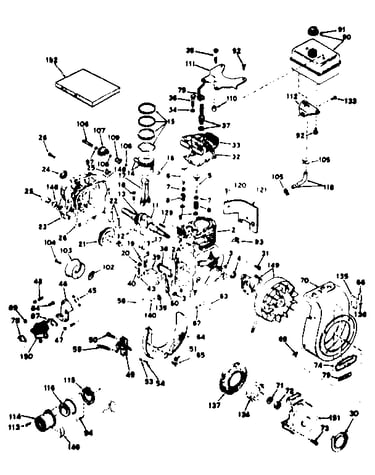

Unit parts diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Control Assembly 33858
#49

Unit parts diagram

Control assembly

Part #33858

The manufacturer no longer makes this part, and there's no substitute part

Throttle Spring 631279
#2

Carburetor diagram

Throttle spring

Part #631279

Replaced by #631767

?
Manufacturer substitution
This part replaces 631279. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
/gvnr Clamp 31335
#139

Unit parts diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Stem Assembly 27136
#17

Carburetor diagram

Stem assembly

Part #27136

Replaced by #27136A

?
Manufacturer substitution
This part replaces 27136. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Screw 30564
#28

Unit parts diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part
