Model # 917351452 Official Craftsman 3.7 chainsaw

Here are the diagrams and repair parts for Official Craftsman 917351452 3.7 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

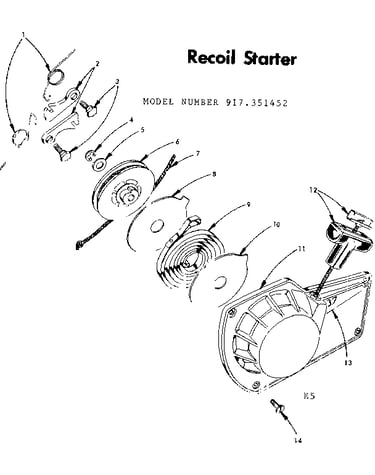

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |

File Holder 7028R
#5

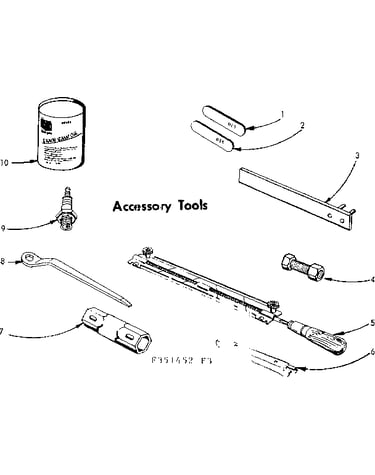

Accessory tools diagram

File holder

Part #7028R

The manufacturer no longer makes this part, and there's no substitute part

Pin 013210
#18

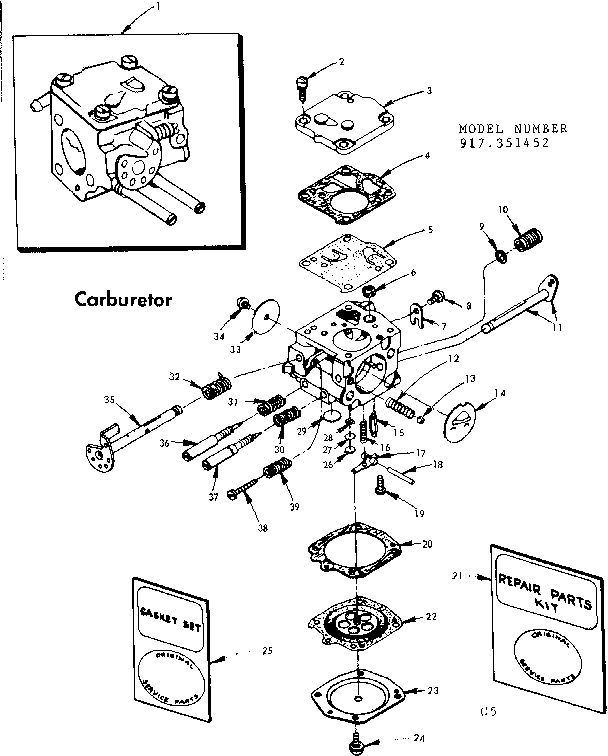

Carburetor diagram

Pin

Part #013210

The manufacturer no longer makes this part, and there's no substitute part

Throttle Link 9169H
#23

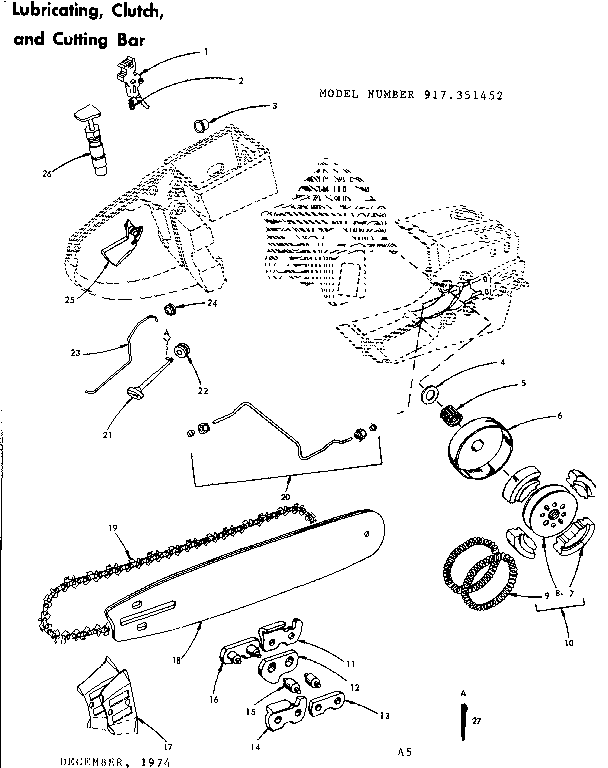

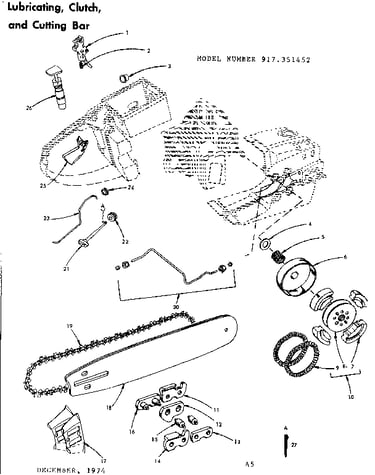

Lubricating, clutch and cutting bar diagram

Throttle link

Part #9169H

The manufacturer no longer makes this part, and there's no substitute part

Grip 9167H
#5

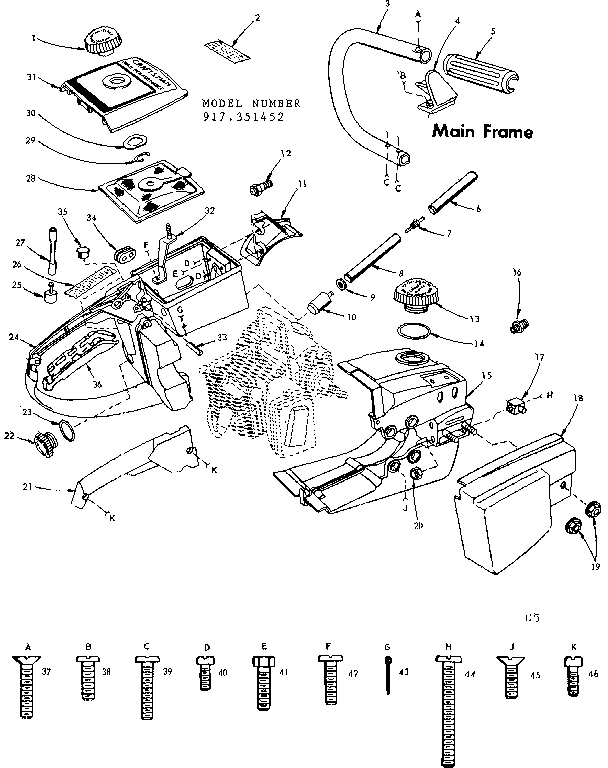

Main frame diagram

Grip

Part #9167H

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 3248P
#46

Main frame diagram

Machine screw

Part #3248P

The manufacturer no longer makes this part, and there's no substitute part

Handle Support 9139H
#4

Main frame diagram

Handle support

Part #9139H

The manufacturer no longer makes this part, and there's no substitute part

Screw Retainer 014887
#19

Carburetor diagram

Screw retainer

Part #014887

The manufacturer no longer makes this part, and there's no substitute part

Bearing 2593R
#16

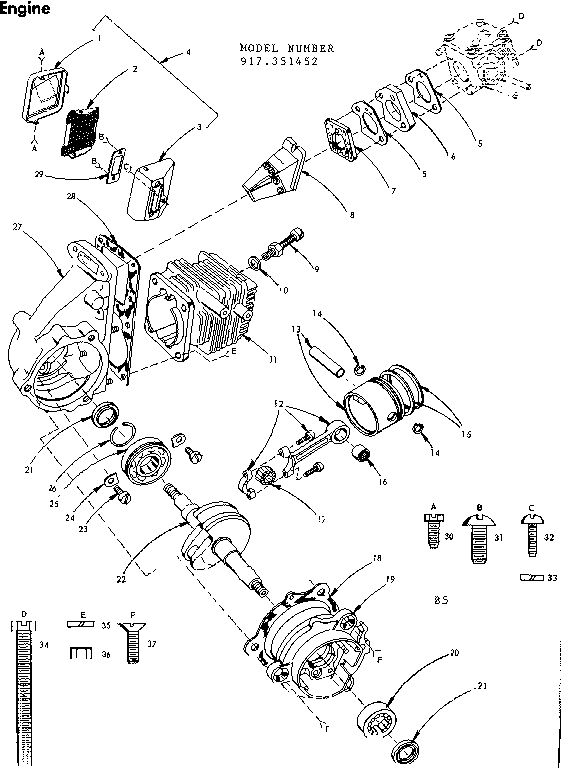

Engine diagram

Bearing

Part #2593R

The manufacturer no longer makes this part, and there's no substitute part

Hose 4736R
#8

Main frame diagram

Hose

Part #4736R

The manufacturer no longer makes this part, and there's no substitute part

Cover 643A17
#14

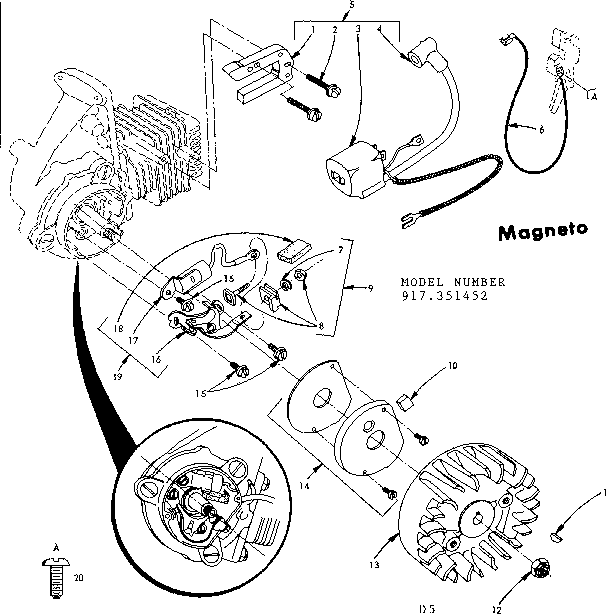

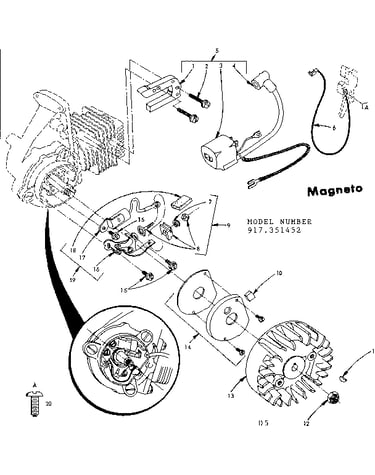

Magneto diagram

Cover

Part #643A17

The manufacturer no longer makes this part, and there's no substitute part
