Model # ACQ058PS2 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACQ058PS2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Nameplate 8209738
#2

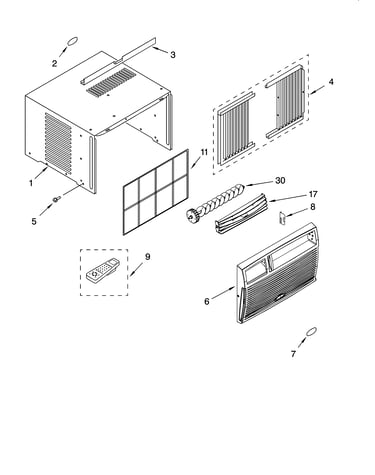

Cabinet parts diagram

Nameplate

Part #8209738

$28.42
In Stock
Grille 8209728
#6

Cabinet parts diagram

Grille

Part #8209728

$89.69
In Stock
Power Cord 8209817
#16

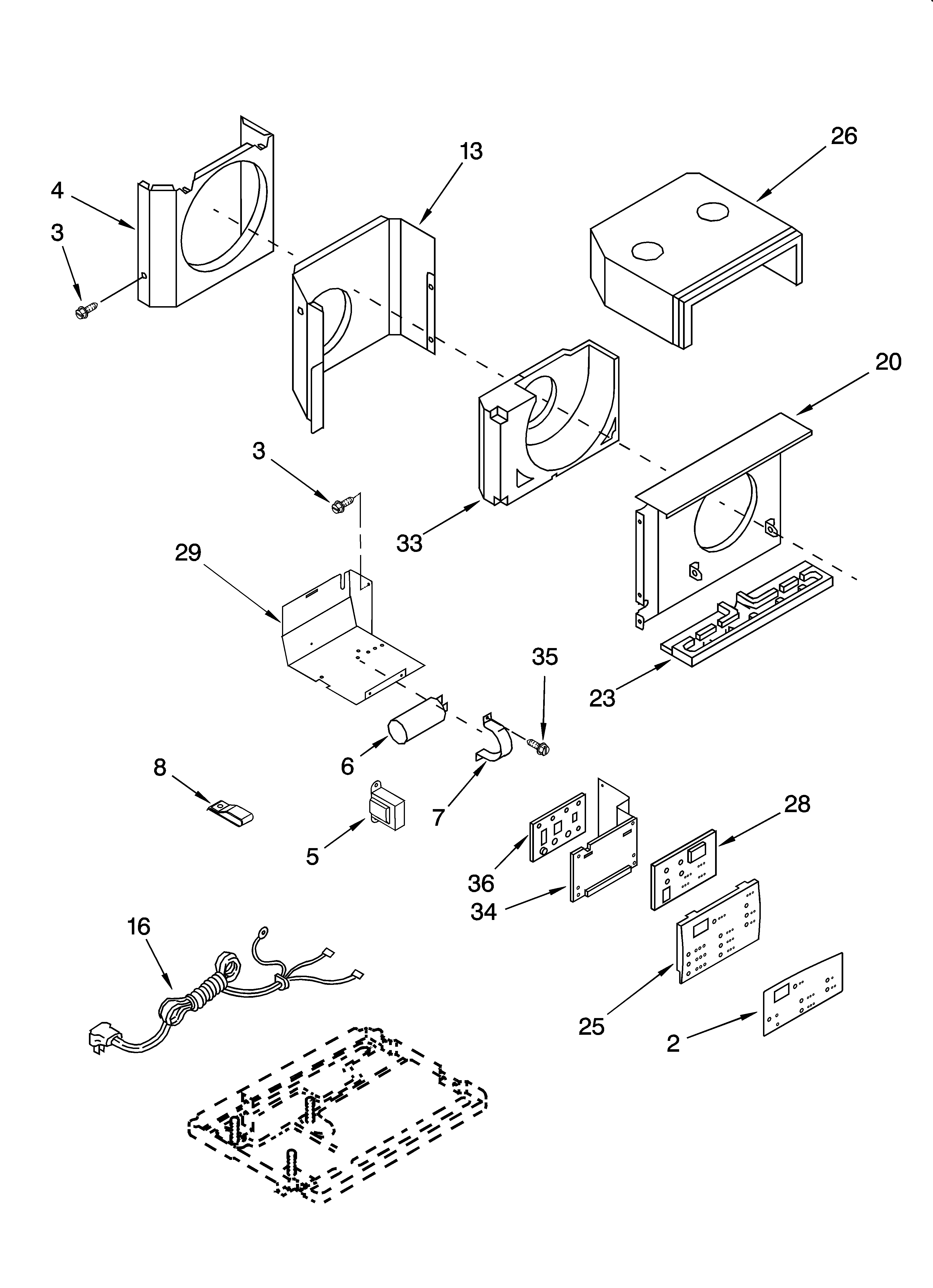

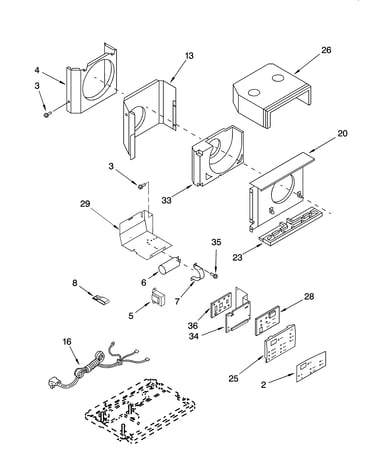

Air flow and control parts diagram

Power cord

Part #8209817

$50.07
In Stock
Energy Guide 8209819
#1B

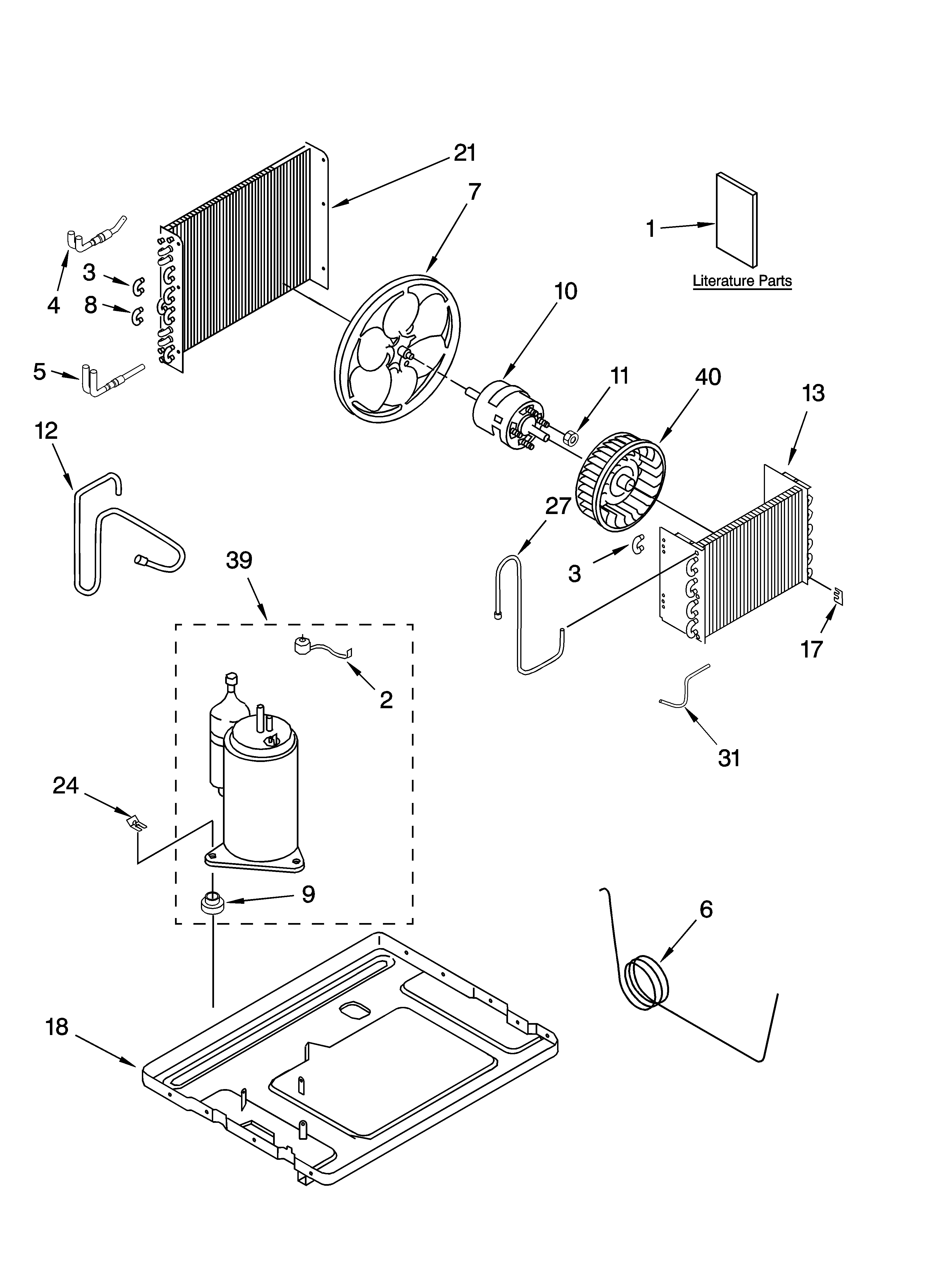

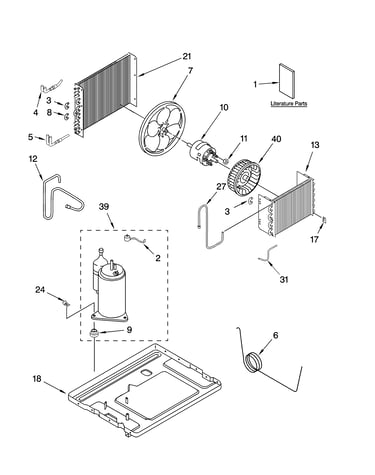

Unit parts diagram

Energy guide

Part #8209819

This item is not returnable
$4.55
In Stock
Screw 8209688
#35

Air flow and control parts diagram

Screw

Part #8209688

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Control Panel 8209791
#34

Air flow and control parts diagram

Control panel

Part #8209791

The manufacturer no longer makes this part, and there's no substitute part

Grommet 8209829
#9

Unit parts diagram

Grommet

Part #8209829

The manufacturer no longer makes this part, and there's no substitute part

Housing-hd 8209682
#26

Air flow and control parts diagram

Housing-hd

Part #8209682

The manufacturer no longer makes this part, and there's no substitute part

Louver 8209706
#17

Cabinet parts diagram

Louver

Part #8209706

The manufacturer no longer makes this part, and there's no substitute part

Outlet Tube 8209731
#5

Unit parts diagram

Outlet tube

Part #8209731

The manufacturer no longer makes this part, and there's no substitute part
