Schwinn
Exercise Cycle

Model # 3710014 Official Schwinn cycle

Here are the diagrams and repair parts for Official Schwinn 3710014 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

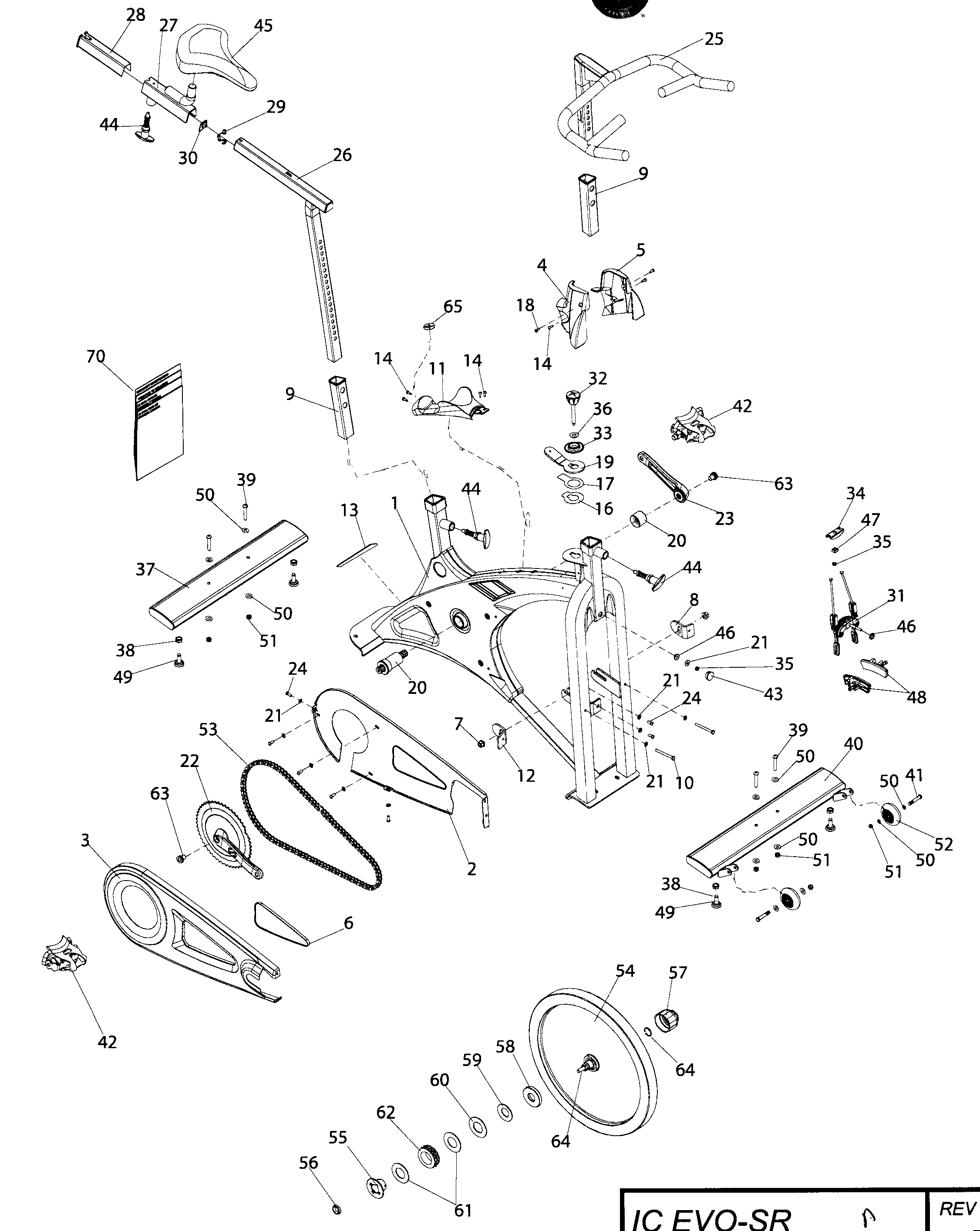

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Brake Pad 92874
#48

Cycle diagram

Brake pad

Part #92874

The manufacturer no longer makes this part, and there's no substitute part

Selt-tapping Screw 80040
#14

Cycle diagram

Selt-tapping screw

Part #80040

The manufacturer no longer makes this part, and there's no substitute part

Badge Schwinn Logo 80047
#65

Cycle diagram

Badge schwinn logo

Part #80047

The manufacturer no longer makes this part, and there's no substitute part

Conical Spring 92208
#59

Cycle diagram

Conical spring

Part #92208

The manufacturer no longer makes this part, and there's no substitute part

Frame Plug 92206
#43

Cycle diagram

Frame plug

Part #92206

The manufacturer no longer makes this part, and there's no substitute part

Overdrive W/bolt 003-1508
#20

Cycle diagram

Overdrive w/bolt

Part #003-1508

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 84492
#26

Cycle diagram

Seat post

Part #84492

The manufacturer no longer makes this part, and there's no substitute part

Bottle Cage 84998
#NI

Cycle diagram

Bottle cage

Part #84998

The manufacturer no longer makes this part, and there's no substitute part

Chain Adj.bracket-l 84987
#8

Cycle diagram

Chain adj.bracket-l

Part #84987

The manufacturer no longer makes this part, and there's no substitute part

Rubber Ring 80003
#6

Cycle diagram

Rubber ring

Part #80003

The manufacturer no longer makes this part, and there's no substitute part
