Countertop Microwave

Model # R-305AK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-305AK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

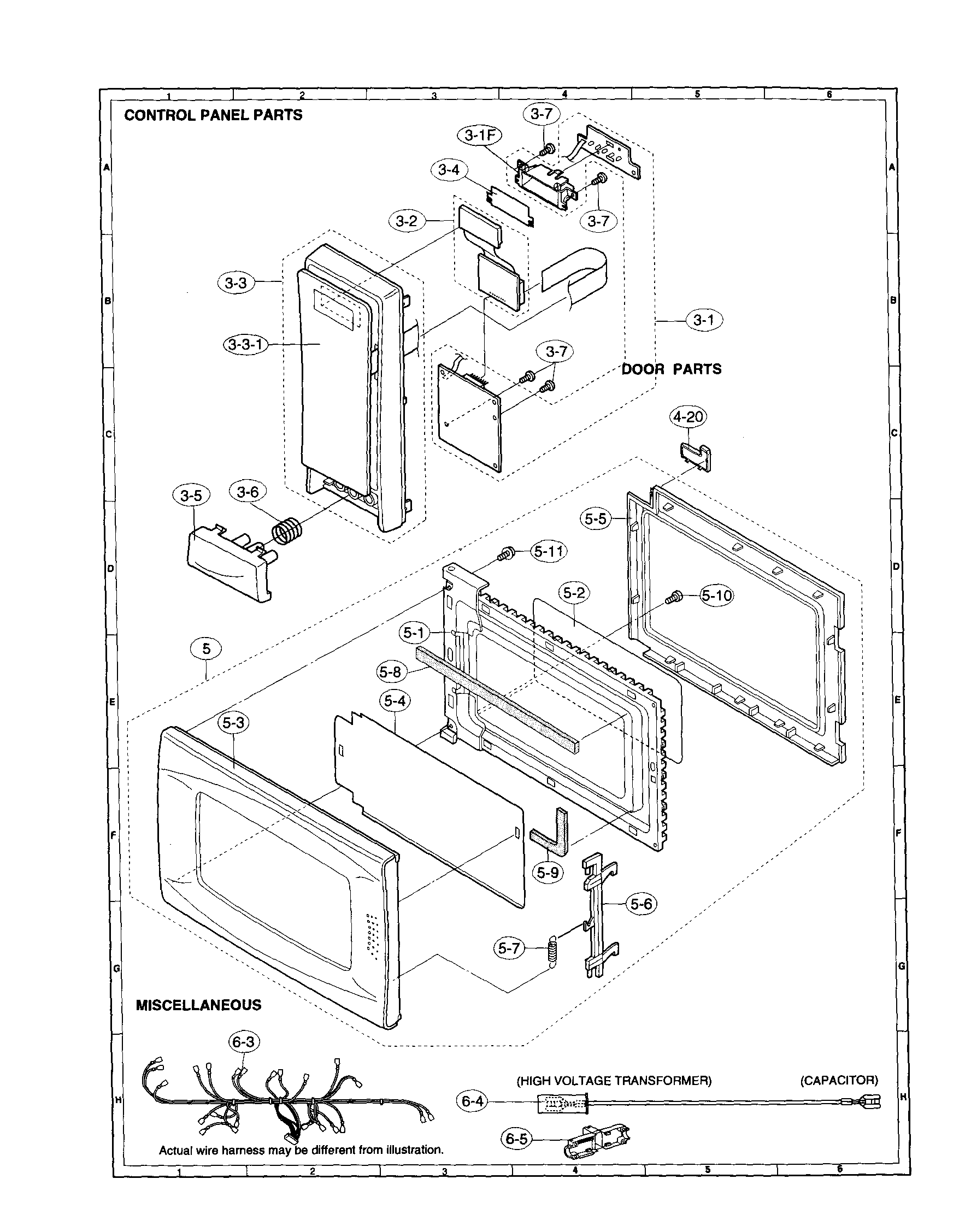

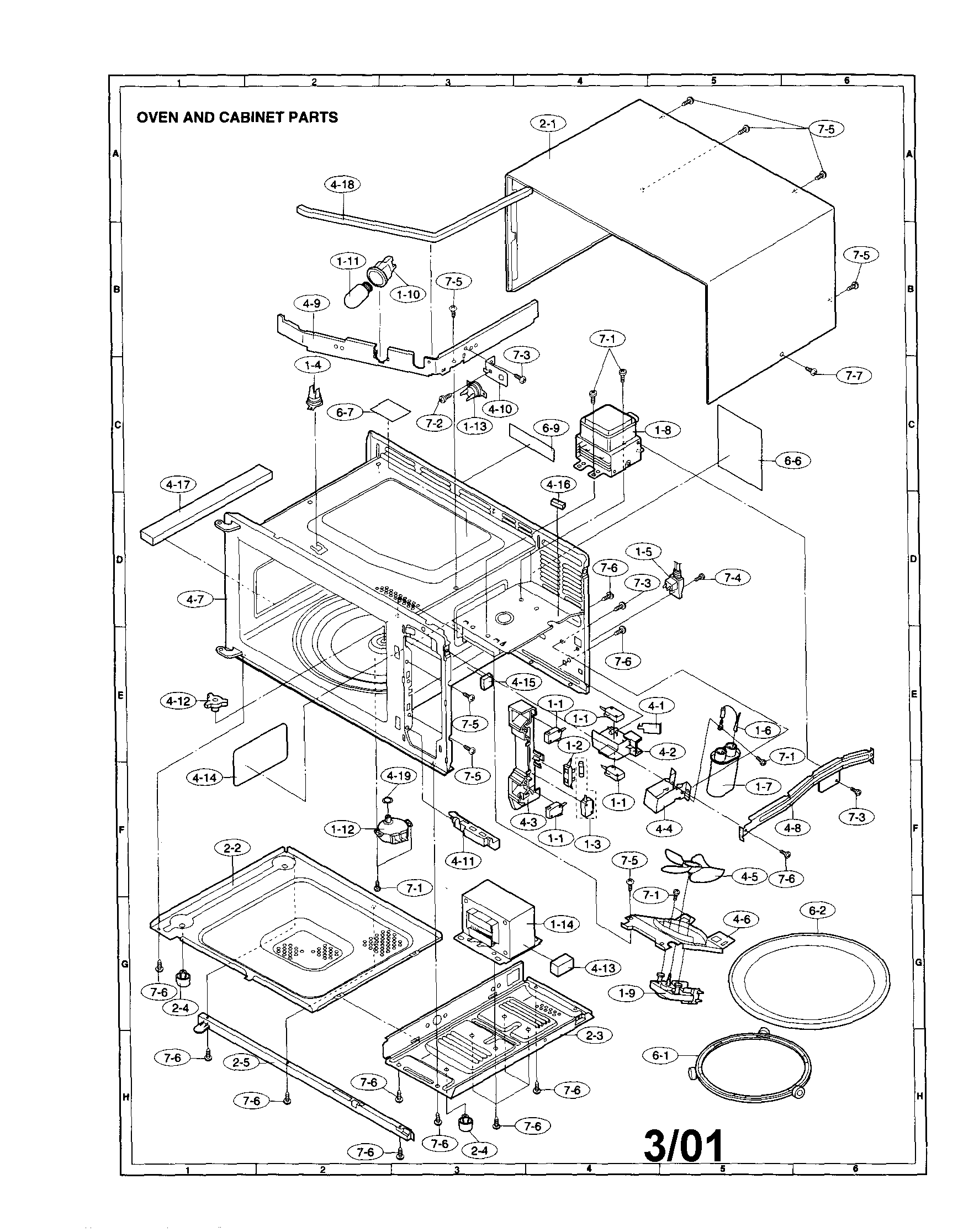

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

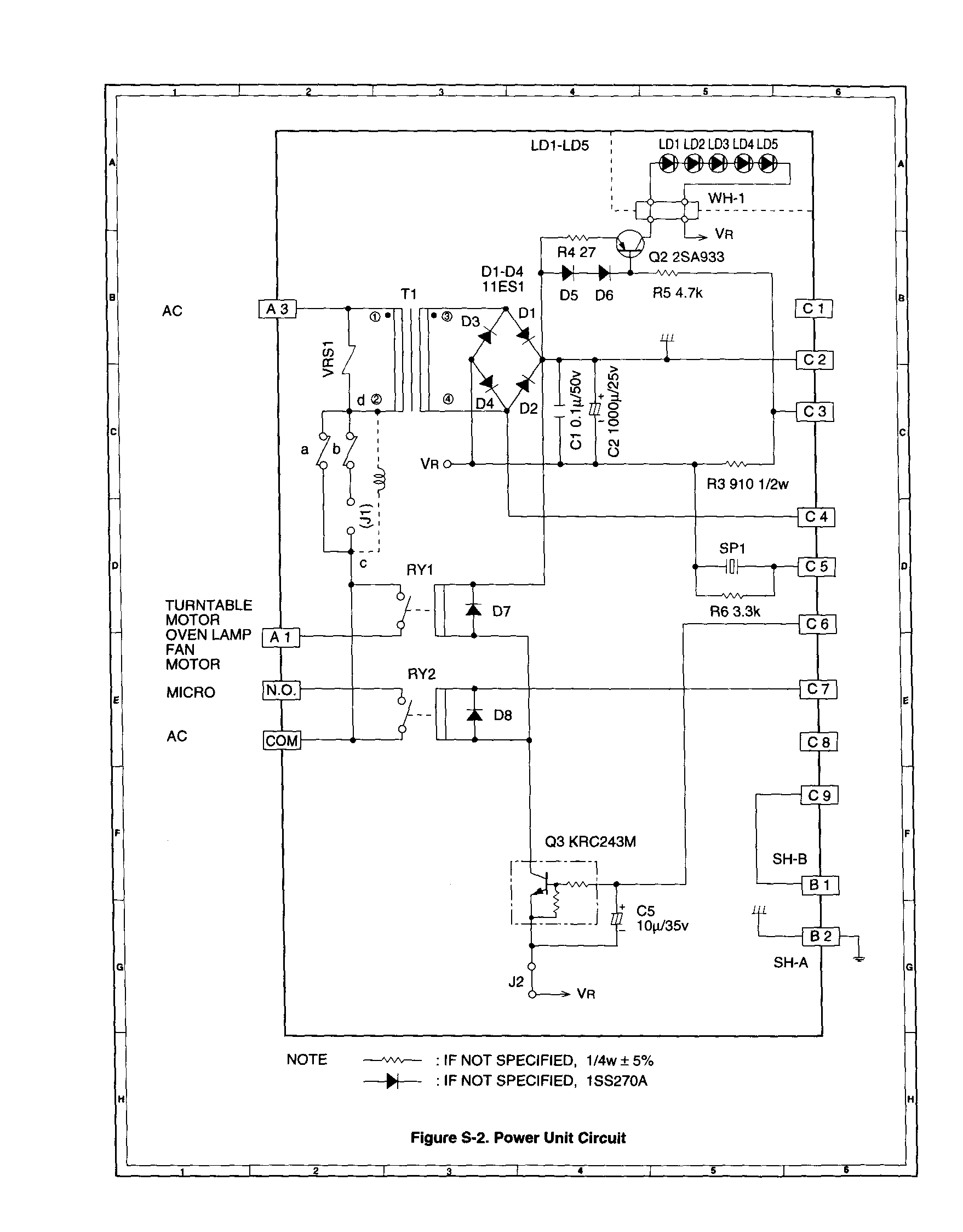

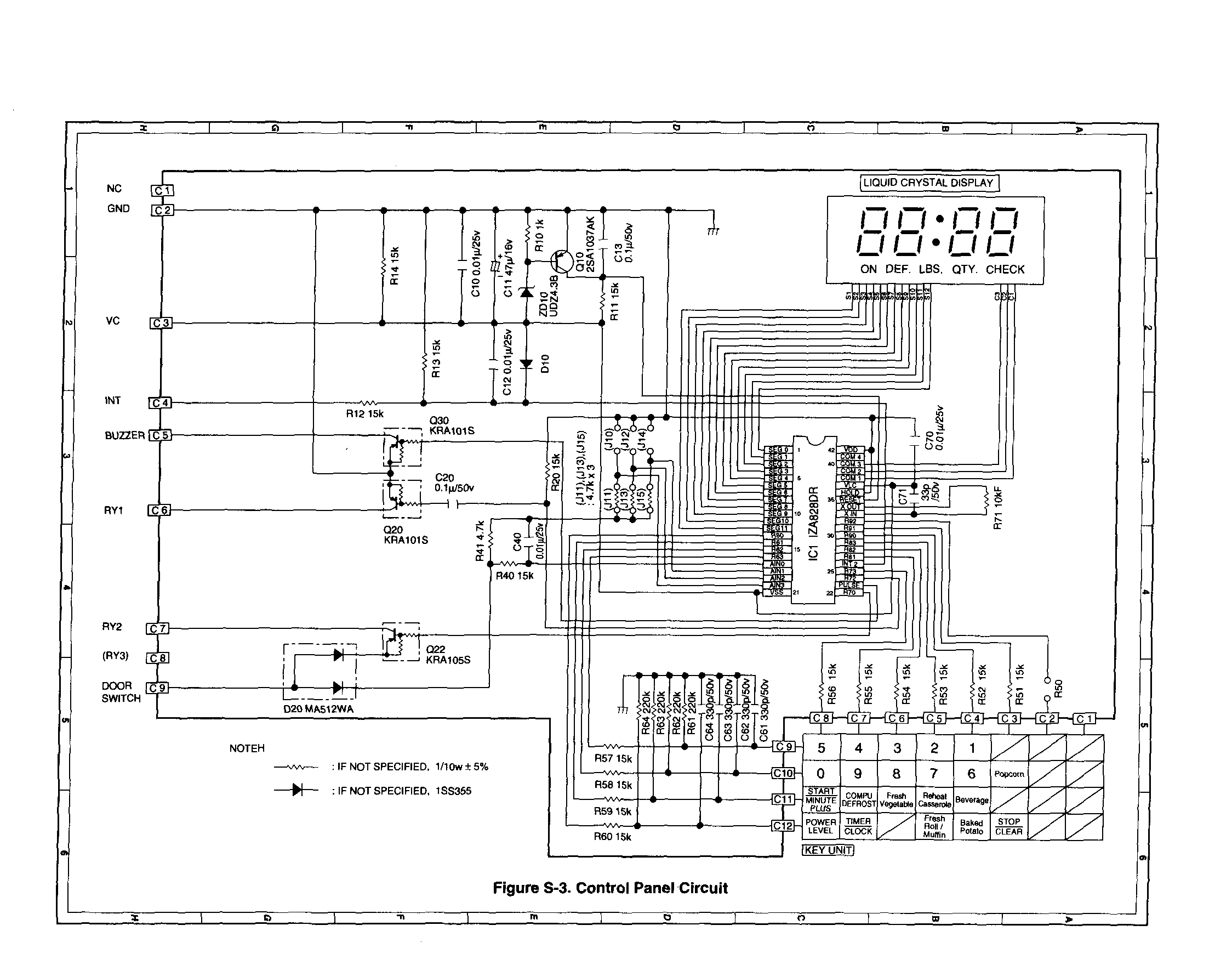

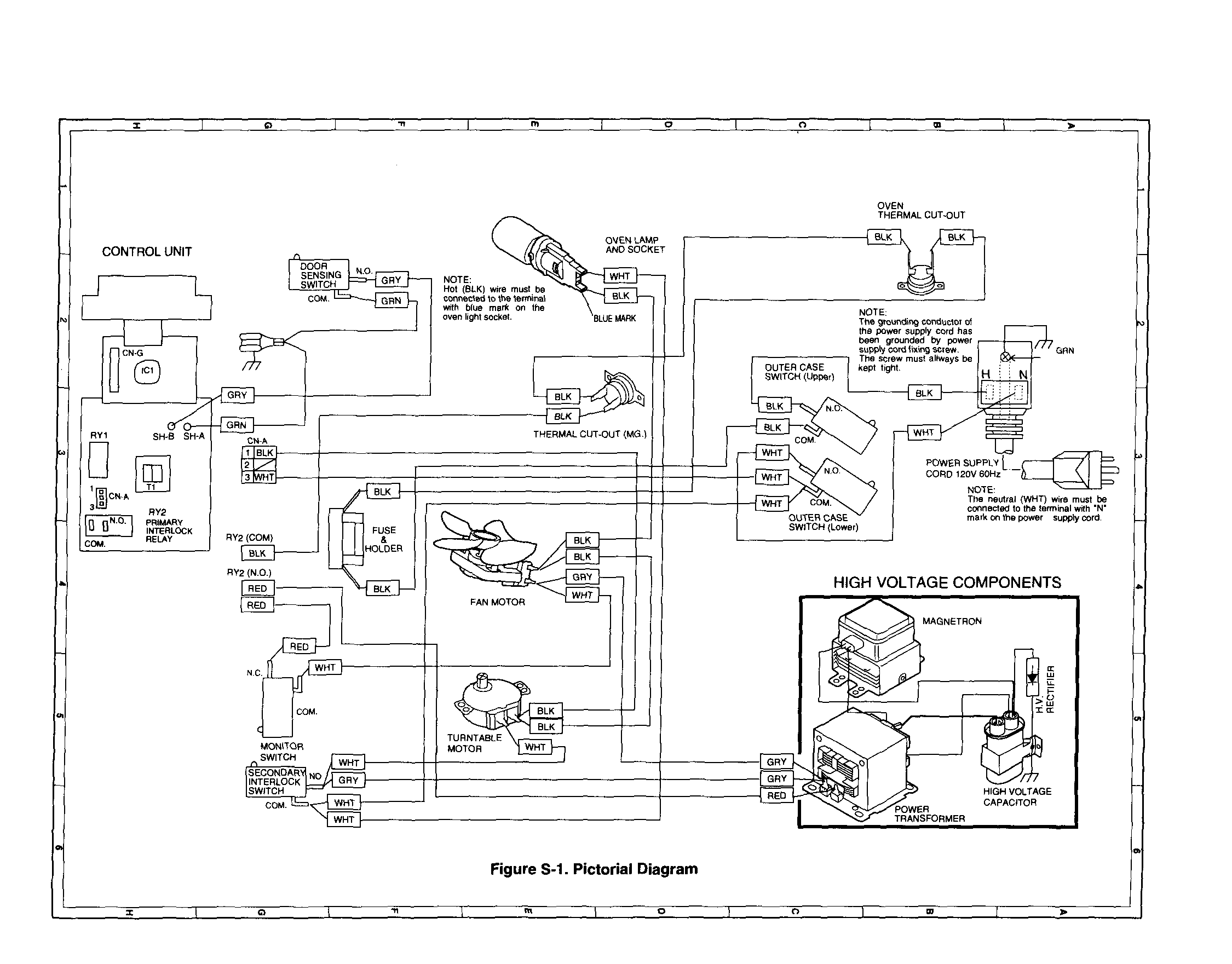

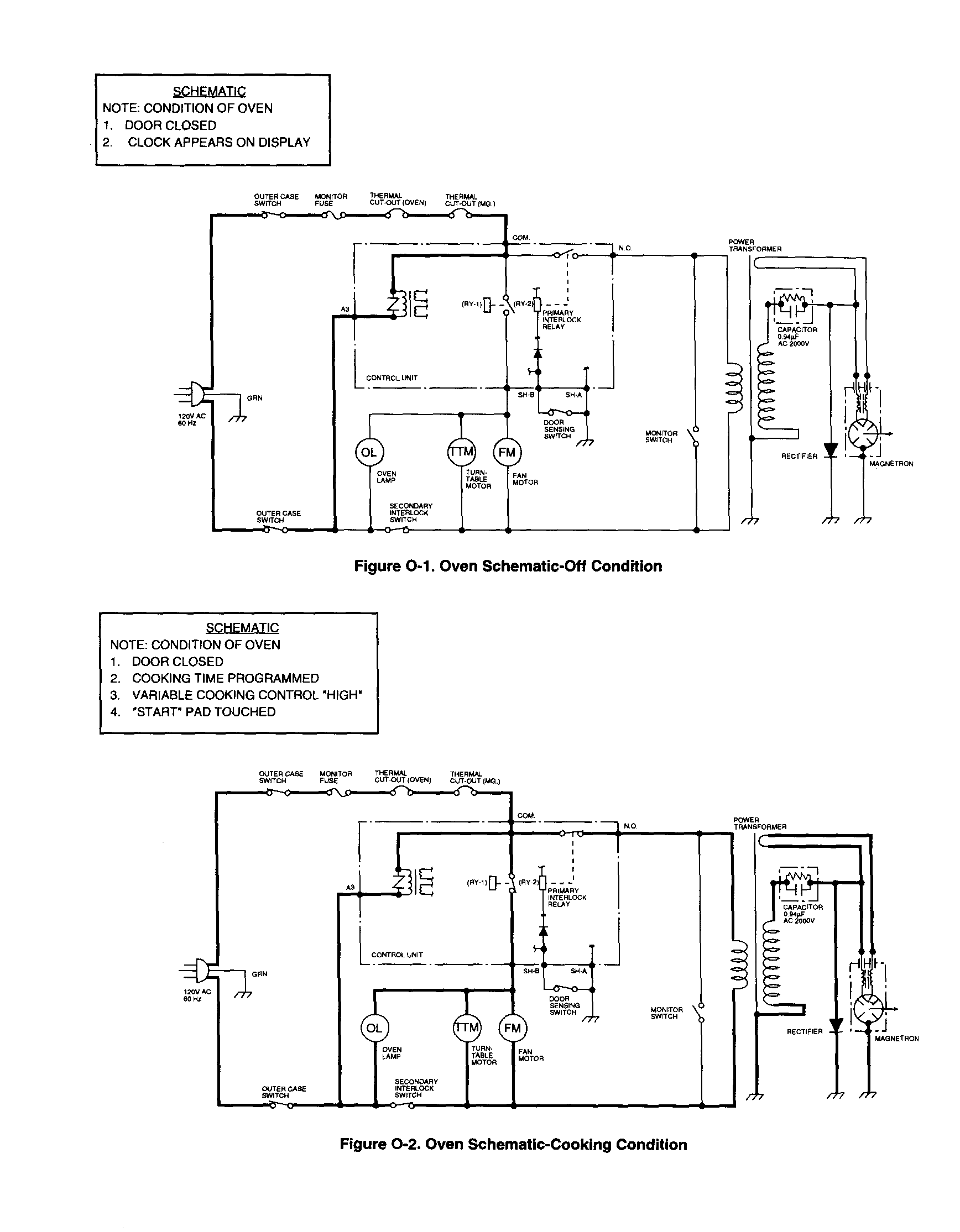

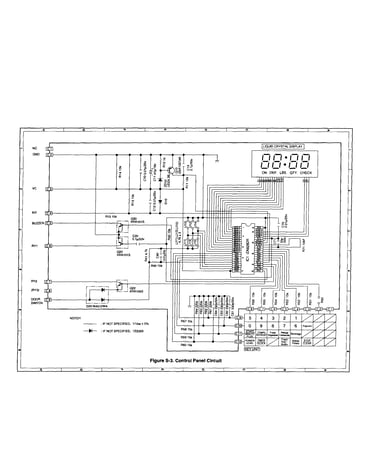

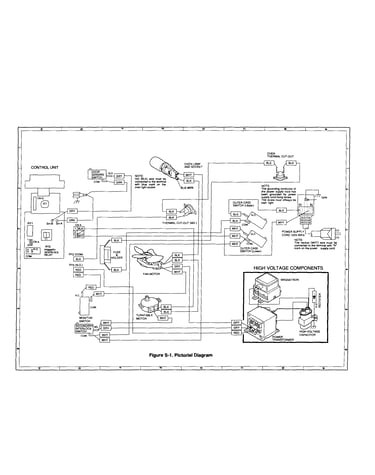

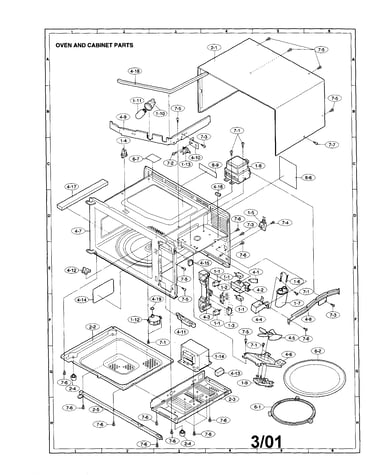

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Diode FH-DZA075WRK0

#1-06

All parts diagram

Diode

Part #FH-DZA075WRK0

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12EF472J

#NI

All parts diagram

Resistor

Part #VRD-B12EF472J

The manufacturer no longer makes this part, and there's no substitute part

Diode VHD11ES1///-1

#NI

All parts diagram

Diode

Part #VHD11ES1///-1

The manufacturer no longer makes this part, and there's no substitute part

Transistor VS2SA933S//-3

#NI

All parts diagram

Transistor

Part #VS2SA933S//-3

The manufacturer no longer makes this part, and there's no substitute part

Pcb DPWBFB695WRK0

#3-02

All parts diagram

Pcb

Part #DPWBFB695WRK0

The manufacturer no longer makes this part, and there's no substitute part

Relay RRLY-A094DRE0

#NI

All parts diagram

Relay

Part #RRLY-A094DRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0

#1-04

All parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Latch MLEVPA194WRF0

#4-11

All parts diagram

Latch

Part #MLEVPA194WRF0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0

#1-02

All parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Hook PHOK-A095WRF0

#4-03

All parts diagram

Hook

Part #PHOK-A095WRF0

The manufacturer no longer makes this part, and there's no substitute part
