Maytag
Electric Water Heater

Model # HR640DJT4W Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HR640DJT4W electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Thermostat 66001254
#16

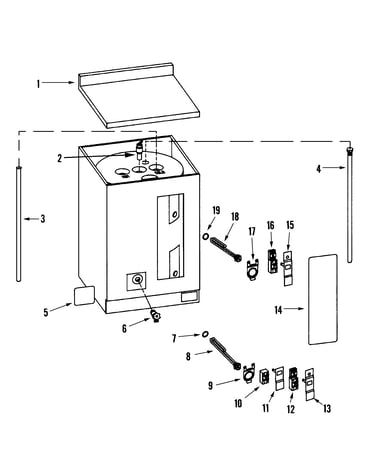

Body diagram

Thermostat

Part #66001254

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 66001254. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Anode Rod 66001248
#4

Body diagram

Anode rod

Part #66001248

The manufacturer no longer makes this part, and there's no substitute part

Element 66001182
Element

Part #66001182

The manufacturer no longer makes this part, and there's no substitute part

Element Gasket 66001053
Element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001268
#11

Body diagram

Terminal cover

Part #66001268

The manufacturer no longer makes this part, and there's no substitute part

Cover, Drain Valve 66001389
#5

Body diagram

Cover, drain valve

Part #66001389

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 66001390
#14

Body diagram

Access panel

Part #66001390

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 66001201
#10

Body diagram

Thermostat

Part #66001201

The manufacturer no longer makes this part, and there's no substitute part

Manual, Performa Table Top (non-illus) 66001697
#20

Body diagram

Manual, performa table top (non-illus)

Part #66001697

The manufacturer no longer makes this part, and there's no substitute part

Temperature Valve 66001079
#2

Body diagram

Temperature valve

Part #66001079

The manufacturer no longer makes this part, and there's no substitute part
