Model # DCR-TRV203 Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-TRV203 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

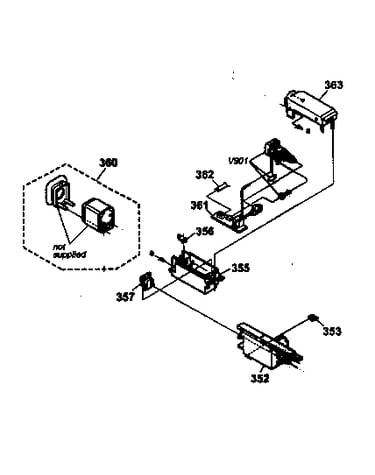

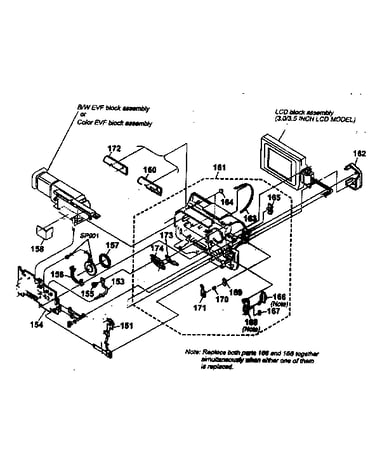

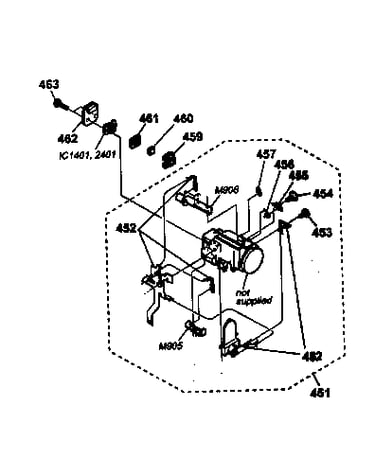

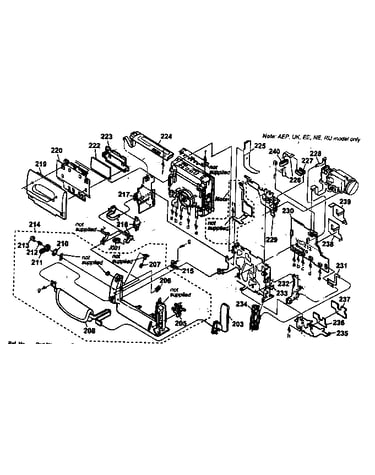

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Integrated Circuit 875952958
#NI

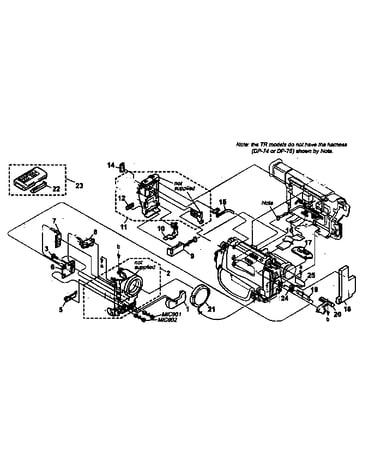

Front panel/battery panel diagram

Integrated circuit

Part #875952958

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875919581
#NI

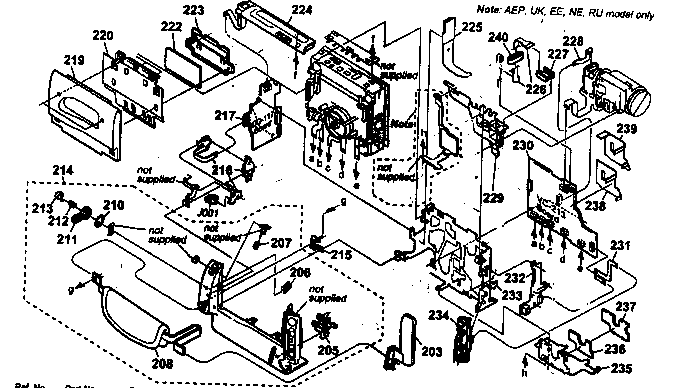

Front panel/battery panel diagram

Integrated circuit

Part #875919581

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875239736
#NI

Front panel/battery panel diagram

Integrated circuit

Part #875239736

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875953425
#NI

Front panel/battery panel diagram

Integrated circuit

Part #875953425

The manufacturer no longer makes this part, and there's no substitute part

Cover X39493731
#5

Front panel/battery panel diagram

Cover

Part #X39493731

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875957629
#NI

Front panel/battery panel diagram

Integrated circuit

Part #875957629

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875953672
#NI

Front panel/battery panel diagram

Integrated circuit

Part #875953672

The manufacturer no longer makes this part, and there's no substitute part

Cassette Compartment X39491532
#NI

Front panel/battery panel diagram

Cassette compartment

Part #X39491532

The manufacturer no longer makes this part, and there's no substitute part

Ic S-8423y 875942479
#NI

Front panel/battery panel diagram

Ic s-8423y

Part #875942479

The manufacturer no longer makes this part, and there's no substitute part

Tube 151785611
#NI

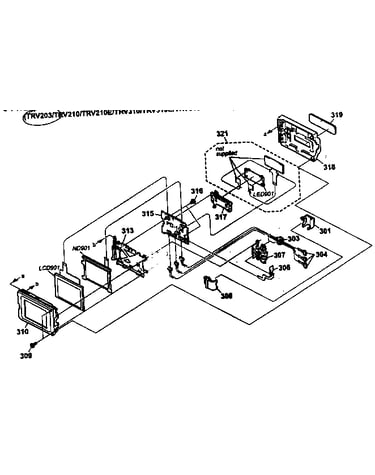

Lcd block diagram

Tube

Part #151785611

The manufacturer no longer makes this part, and there's no substitute part
