Sony
Digital Camcorder

Model # HDR-CX160L Official Sony digital camera

Here are the diagrams and repair parts for Official Sony HDR-CX160L digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

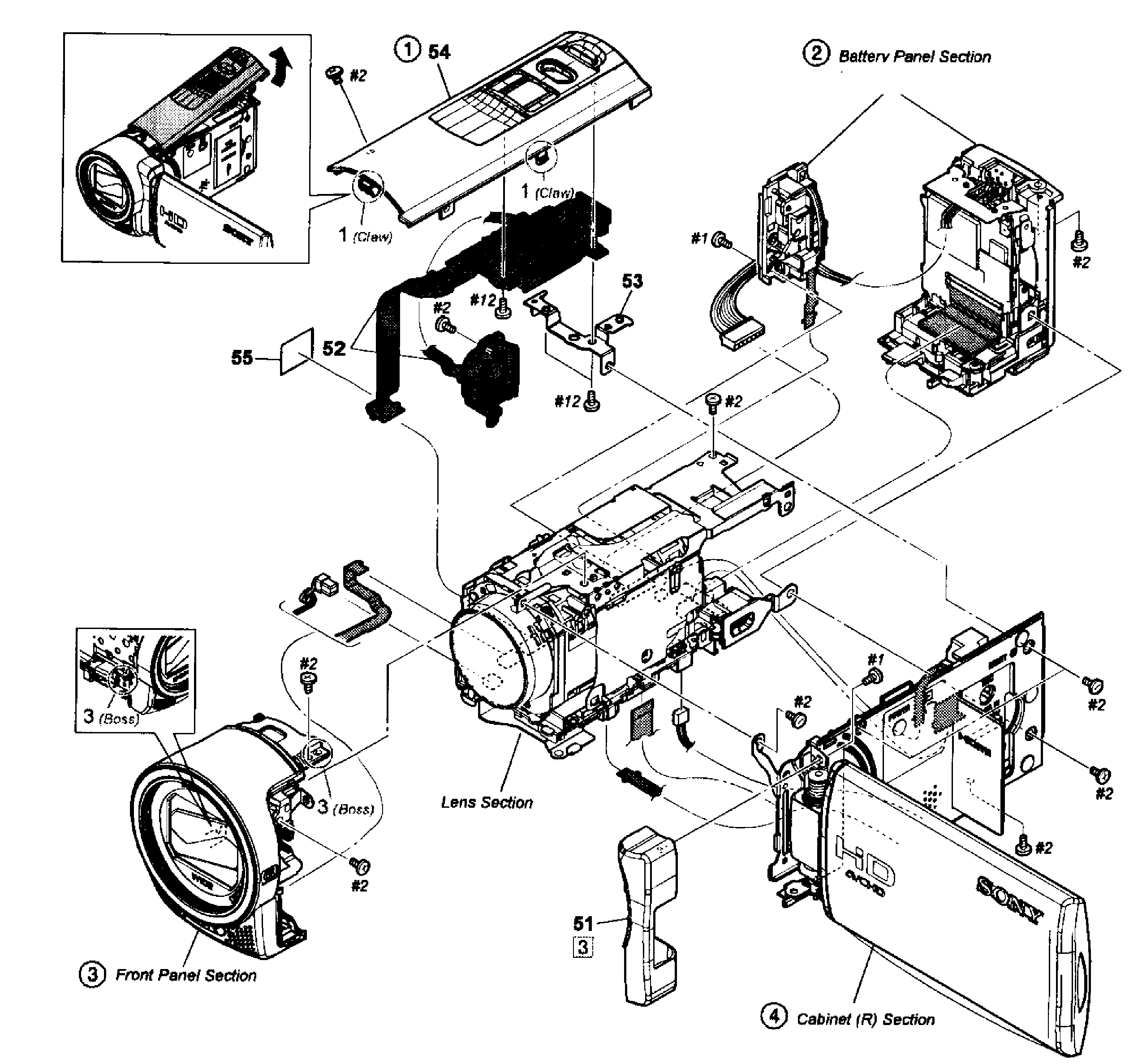

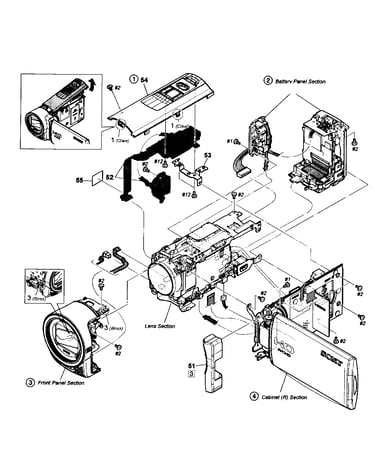

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Cushion 426559801
#205

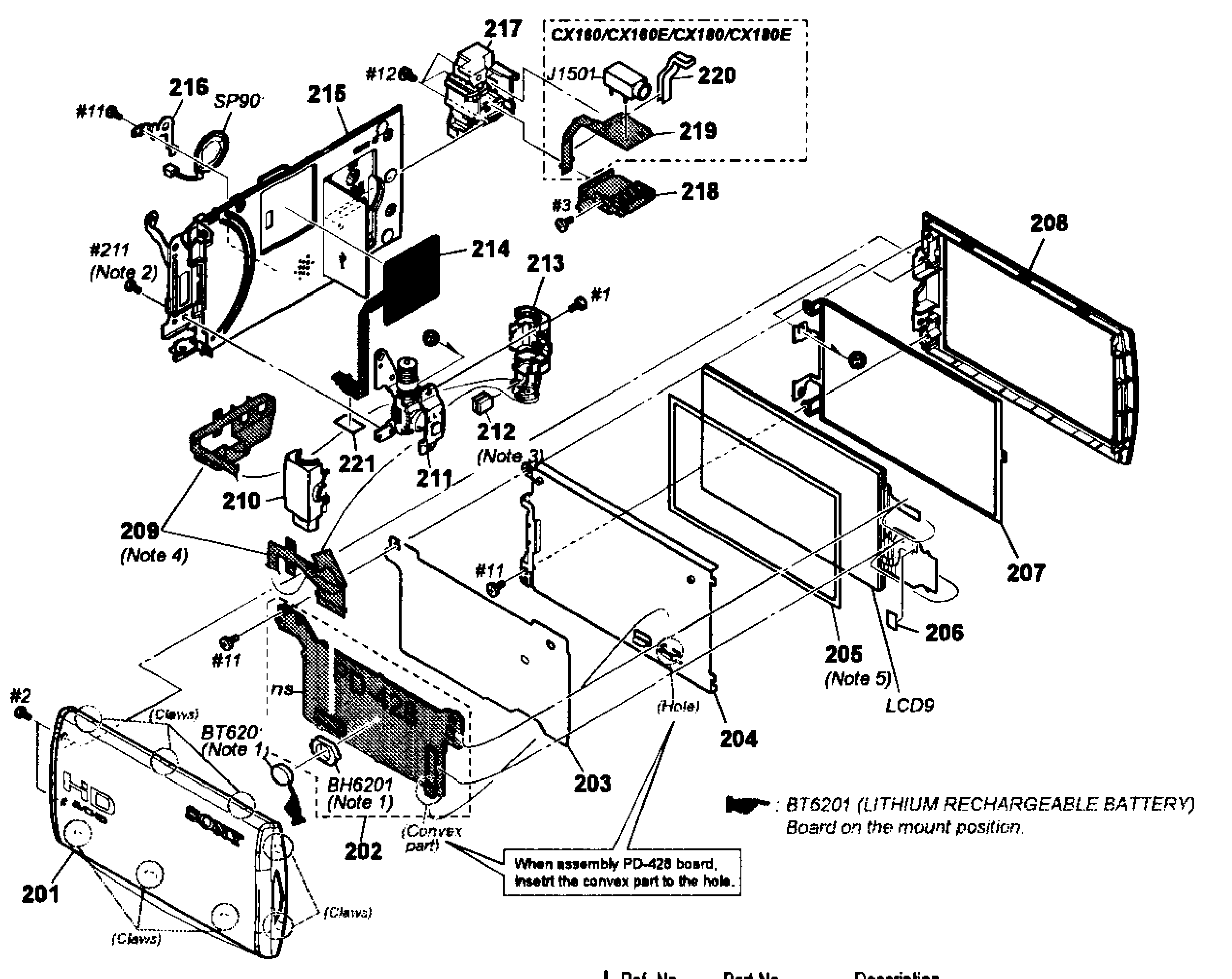

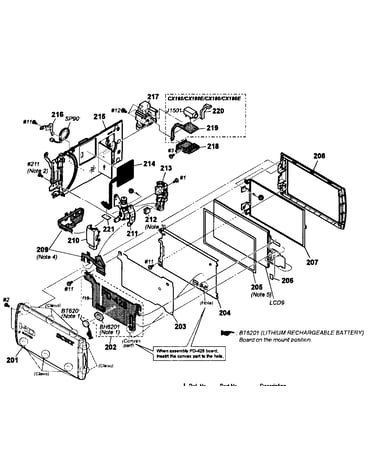

Lcd assy diagram

Cushion

Part #426559801

The manufacturer no longer makes this part, and there's no substitute part

Ring Name 426988601
#263

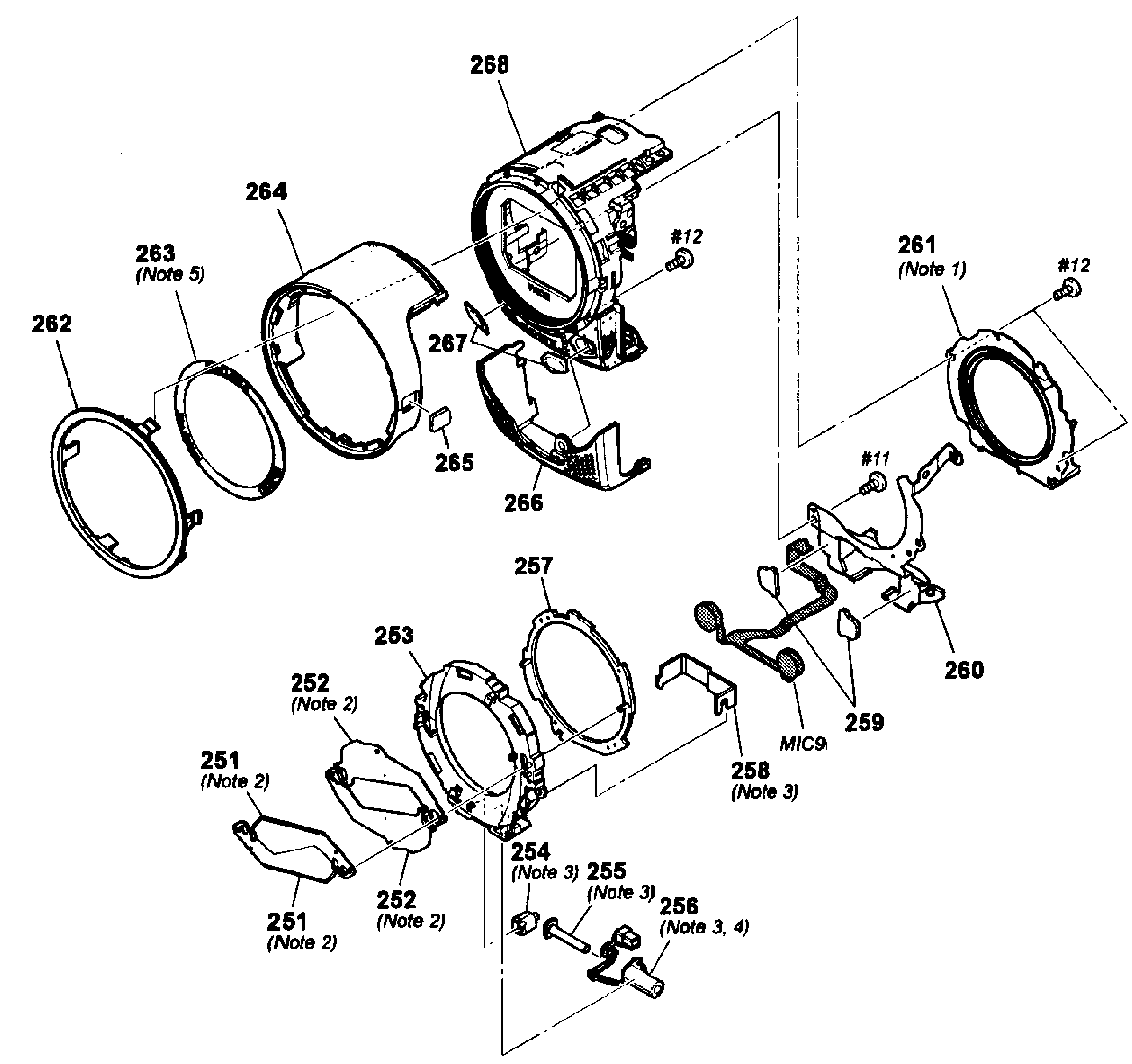

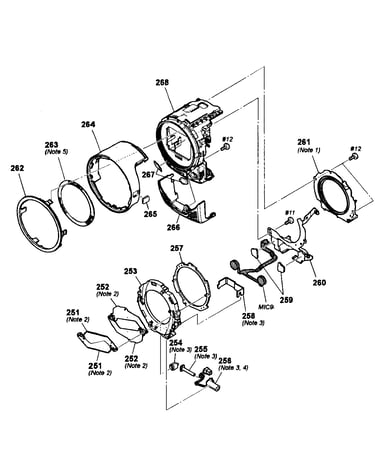

Front assy diagram

Ring name

Part #426988601

The manufacturer no longer makes this part, and there's no substitute part

Pcb Mm098 A1817421A
#159

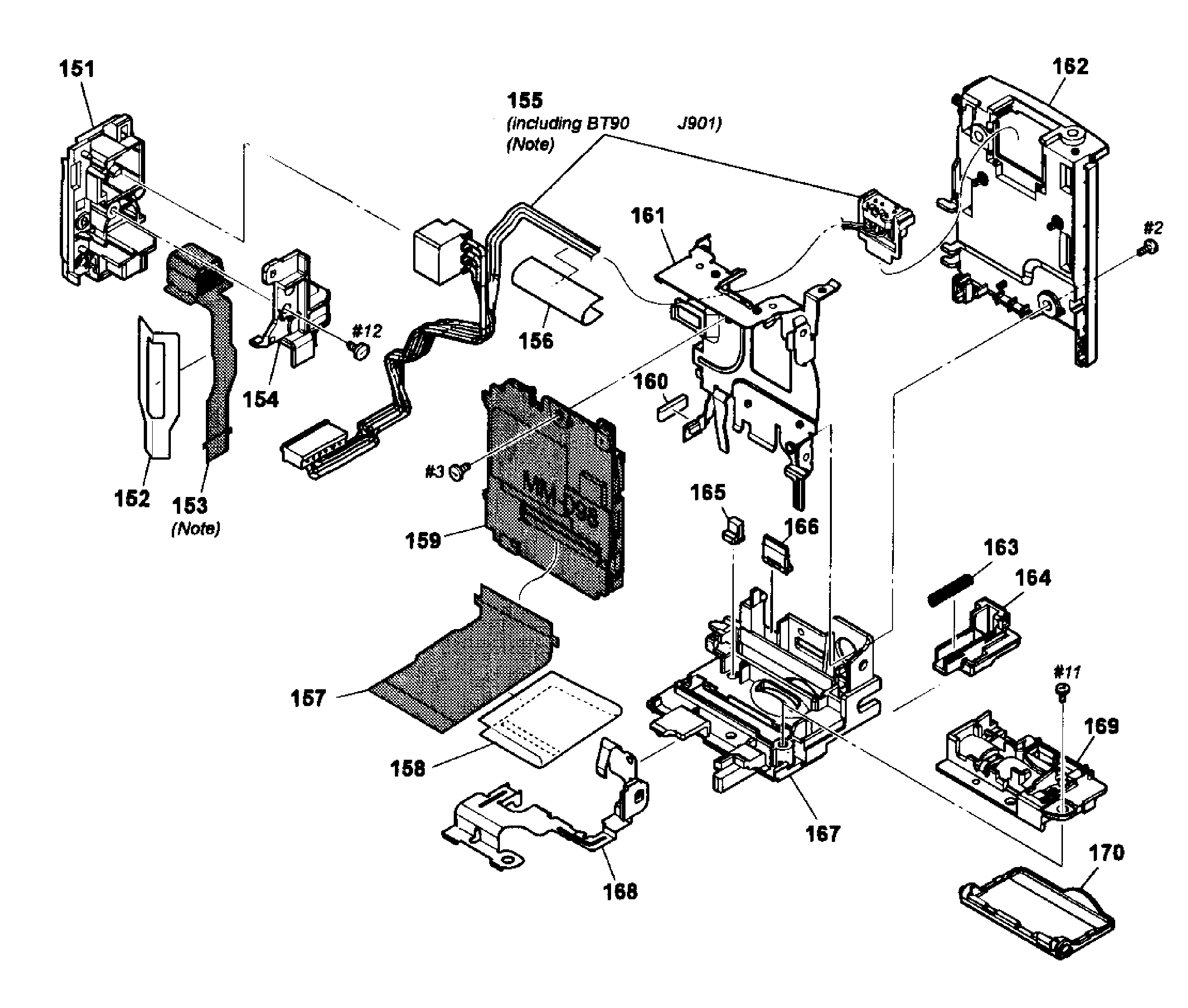

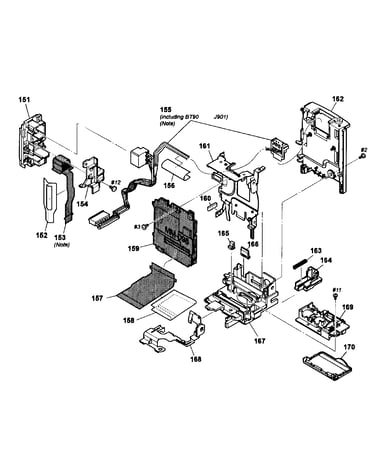

Battery panel diagram

Pcb mm098

Part #A1817421A

The manufacturer no longer makes this part, and there's no substitute part

Plate 426561101
#168

Battery panel diagram

Plate

Part #426561101

The manufacturer no longer makes this part, and there's no substitute part

Spring 426560601
#163

Battery panel diagram

Spring

Part #426560601

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Battery Panel Lock 426560501
#164

Battery panel diagram

Camcorder battery panel lock

Part #426560501

The manufacturer no longer makes this part, and there's no substitute part

Retaining 427205801
#217

Lcd assy diagram

Retaining

Part #427205801

The manufacturer no longer makes this part, and there's no substitute part

Pcb Fp1314 188273711
#109

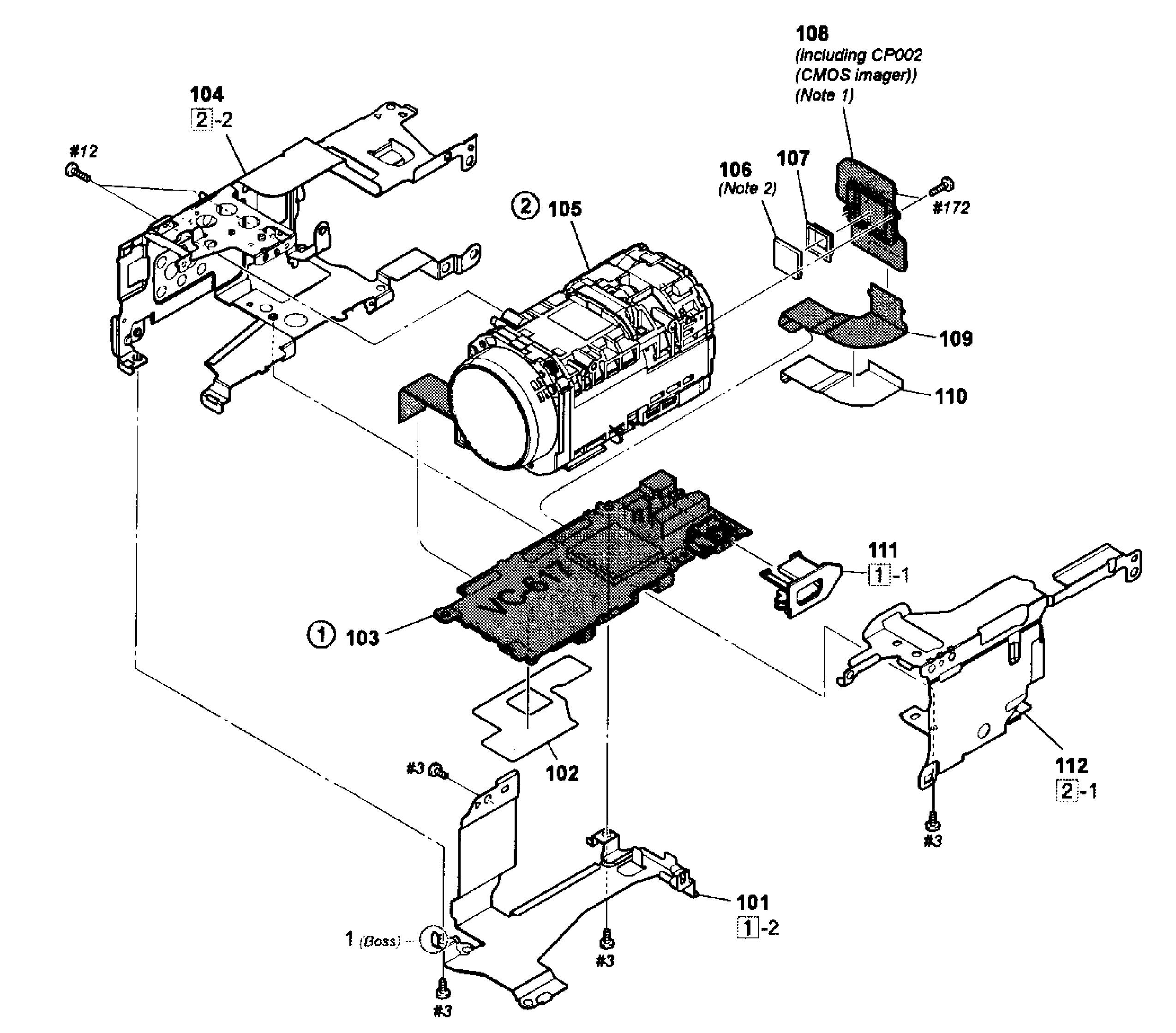

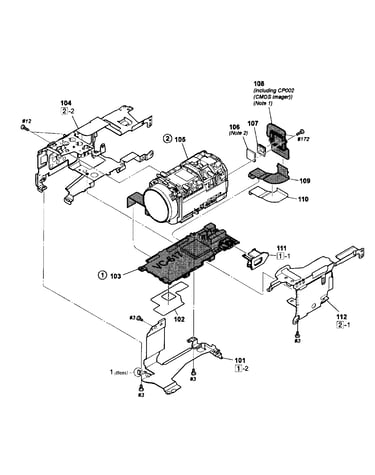

Lens assy diagram

Pcb fp1314

Part #188273711

The manufacturer no longer makes this part, and there's no substitute part

Retaining 426559501
#204

Lcd assy diagram

Retaining

Part #426559501

The manufacturer no longer makes this part, and there's no substitute part

Belt 426554811
#5

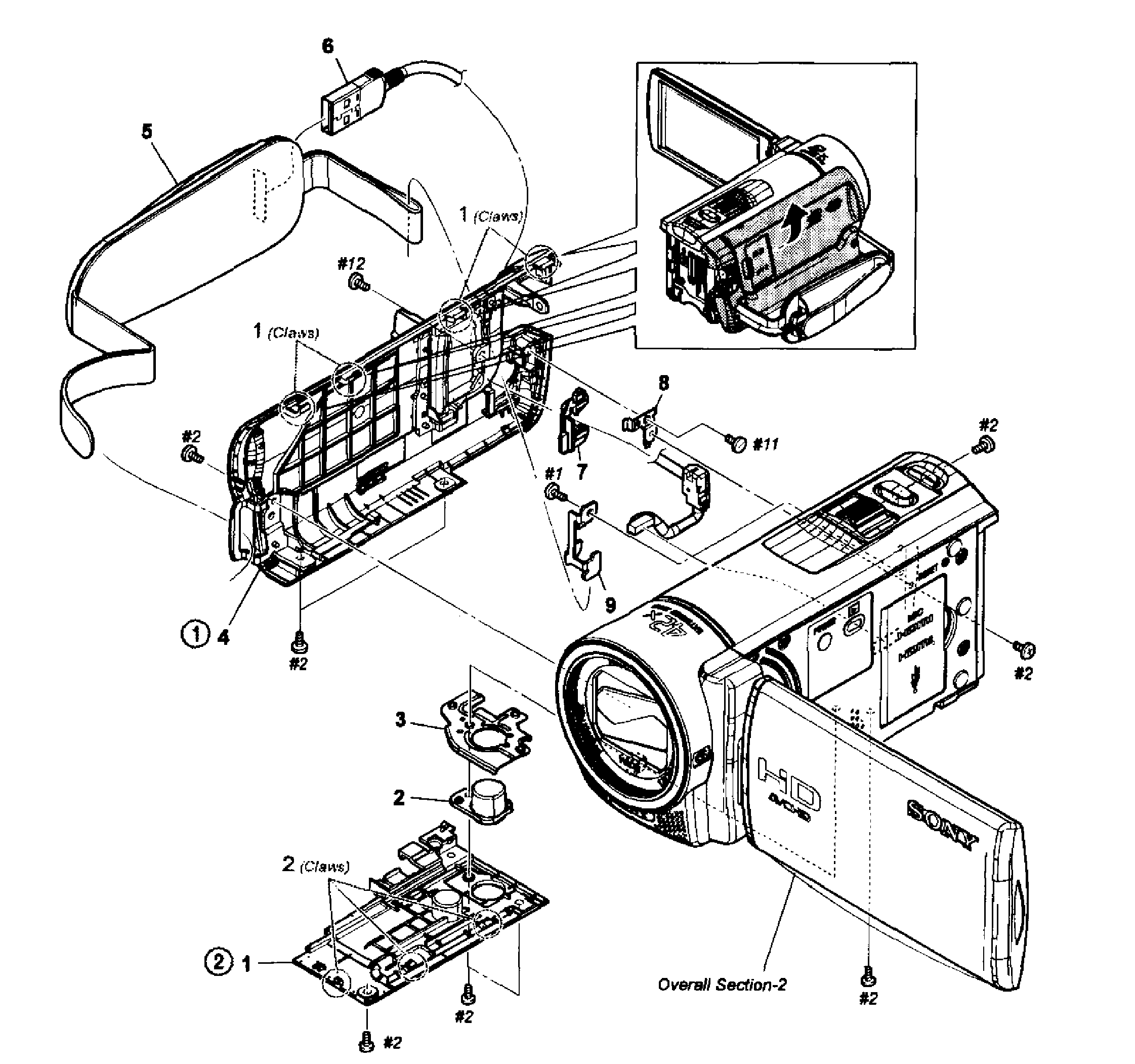

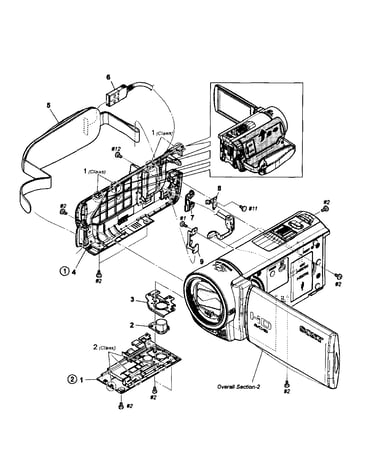

Left assy diagram

Belt

Part #426554811

The manufacturer no longer makes this part, and there's no substitute part
