Model # 29637 Official Proform proform 2005 exl treadmill

Here are the diagrams and repair parts for Official Proform 29637 proform 2005 exl treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Cb,15 Amp,sl 031103
#23

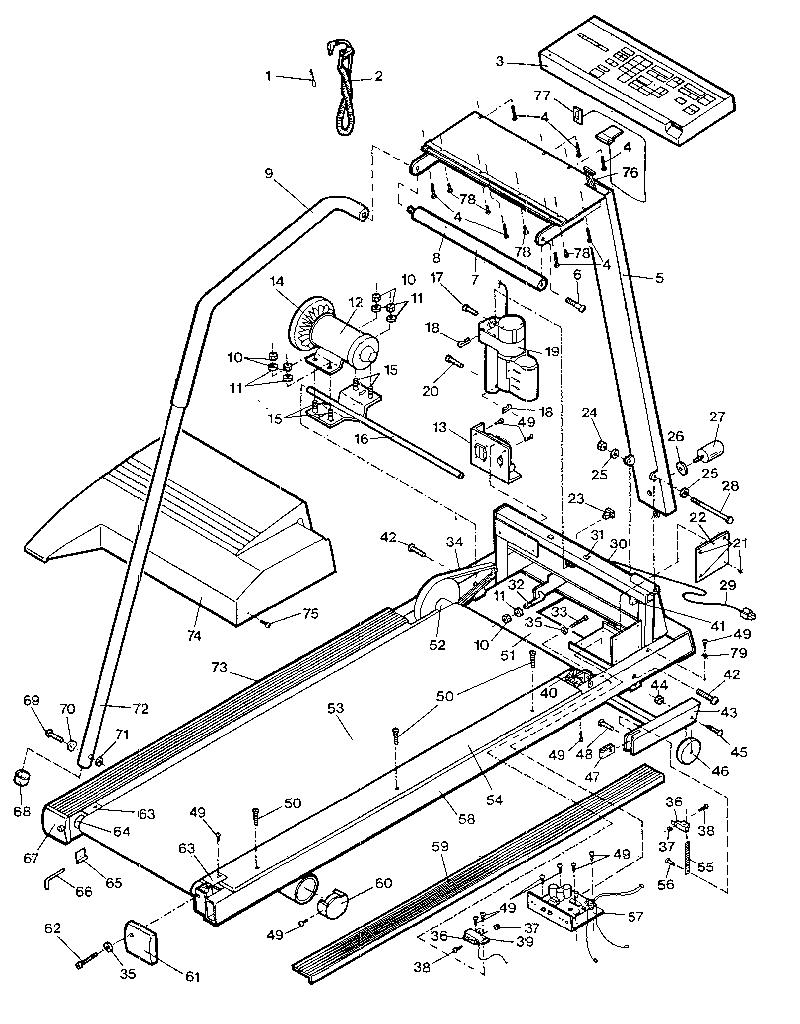

Unit parts diagram

Cb,15 amp,sl

Part #031103

Replaced by #109382

?
Manufacturer substitution
This part replaces 031103. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Assy,clip/ro 104452
#77

Unit parts diagram

Assy,clip/ro

Part #104452

Replaced by #106337

?
Manufacturer substitution
This part replaces 104452. Substitute parts can look different from the original.
This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
Nut,hex Nyl 012082
#10

Unit parts diagram

Nut,hex nyl

Part #012082

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Nut 012179
#47

Unit parts diagram

Exercise equipment nut

Part #012179

This item is not returnable
$2.16
In Stock
Screw 102959
#38

Unit parts diagram

Screw

Part #102959

This item is not returnable
$2.16
In Stock
Nordictrack Carriage Bolt 013445
#15

Unit parts diagram

Nordictrack carriage bolt

Part #013445

This item is not returnable
$2.16
In Stock
Nordictrack Nut,hex Nyl 012041
#24

Unit parts diagram

Nordictrack nut,hex nyl

Part #012041

This item is not returnable
$2.16
In Stock
Exercise Equipment Bolt 013303
#48

Unit parts diagram

Exercise equipment bolt

Part #013303

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Screw 013275
#33

Unit parts diagram

Weider exercise equipment screw

Part #013275

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#29

Unit parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
