Model # 415.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 415000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Exhaust Duct, Cavity M65D105
#21

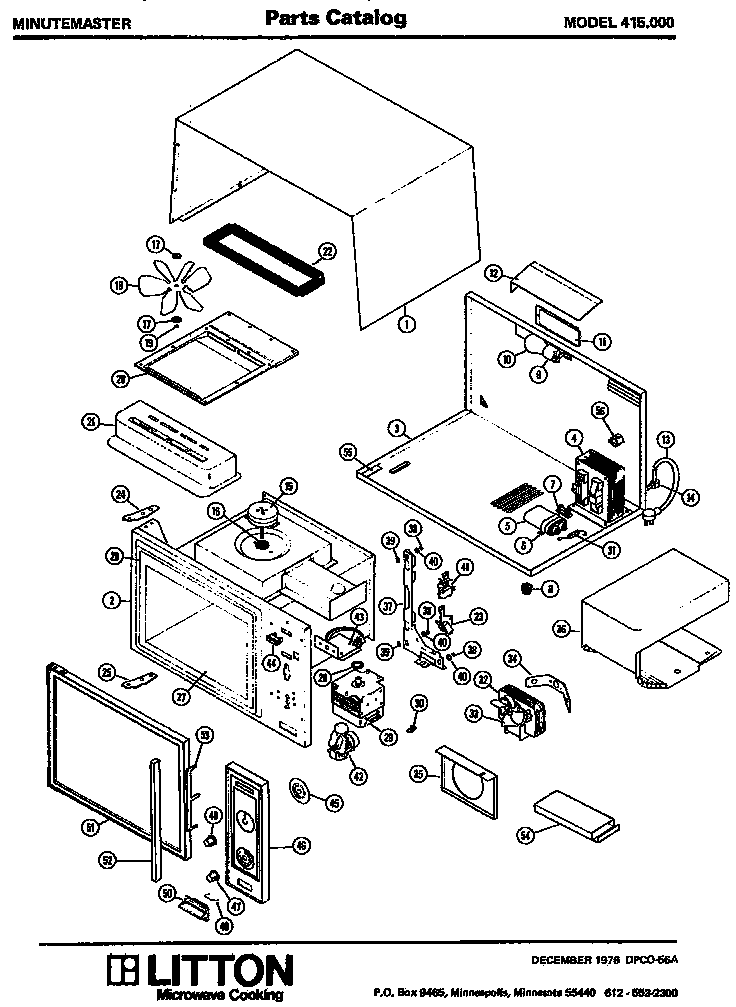

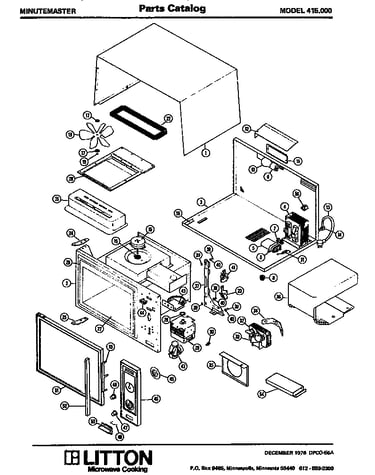

Microwave parts diagram

Exhaust duct, cavity

Part #M65D105

The manufacturer no longer makes this part, and there's no substitute part

Screw - Bracket Mtg. M1D9
#31B

Microwave parts diagram

Screw - bracket mtg.

Part #M1D9

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer - Capacitor Grounding M1D56
#13C

Microwave parts diagram

Flat washer - capacitor grounding

Part #M1D56

The manufacturer no longer makes this part, and there's no substitute part

Knob, Controller M6D144
#48

Microwave parts diagram

Knob, controller

Part #M6D144

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D9
#20A

Microwave parts diagram

Stirrer cover

Part #M45D9

The manufacturer no longer makes this part, and there's no substitute part

Harness M27D133
#54A

Microwave parts diagram

Harness

Part #M27D133

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Light M1D380
#1B

Microwave parts diagram

Gasket, light

Part #M1D380

The manufacturer no longer makes this part, and there's no substitute part

Screw - Thermal Protector Mtg. M1D4
#30B

Microwave parts diagram

Screw - thermal protector mtg.

Part #M1D4

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket & Bracket Assembly M5D106
#9A

Microwave parts diagram

Lamp socket & bracket assembly

Part #M5D106

The manufacturer no longer makes this part, and there's no substitute part

Timer Mounting Screw M1D481
#42B

Microwave parts diagram

Timer mounting screw

Part #M1D481

The manufacturer no longer makes this part, and there's no substitute part
