Kenmore
Evaporative Cooler

Model # 758601500 Official Kenmore console evaporative cooler

Here are the diagrams and repair parts for Official Kenmore 758601500 console evaporative cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Knob 20254
#65

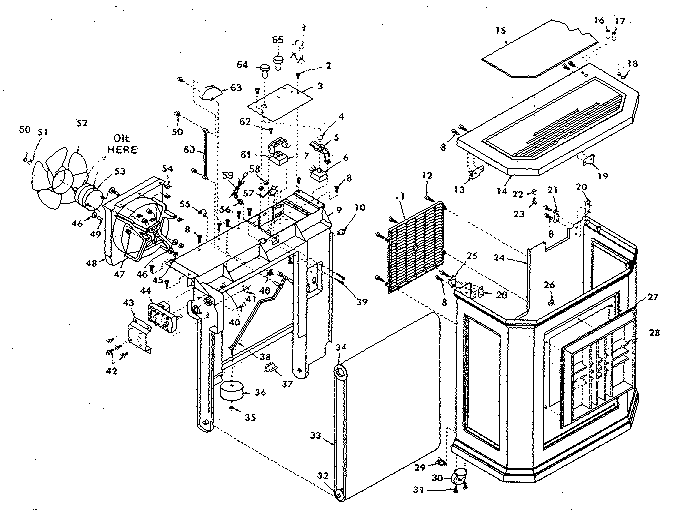

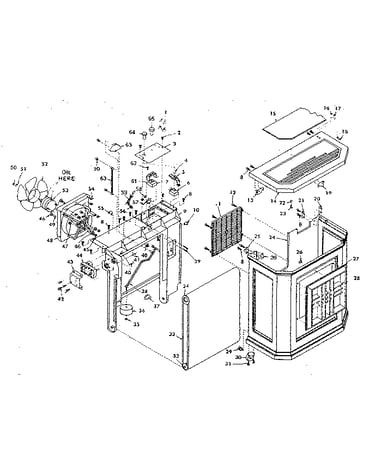

Unit parts diagram

Knob

Part #20254

The manufacturer no longer makes this part, and there's no substitute part

Bracket 27471
#61

Unit parts diagram

Bracket

Part #27471

The manufacturer no longer makes this part, and there's no substitute part

Switch 29306
#7

Unit parts diagram

Switch

Part #29306

The manufacturer no longer makes this part, and there's no substitute part

Media Pad 42-6292
#33

Unit parts diagram

Media pad

Part #42-6292

The manufacturer no longer makes this part, and there's no substitute part

Indicator 29381-10
#63

Unit parts diagram

Indicator

Part #29381-10

The manufacturer no longer makes this part, and there's no substitute part

Nut 25229
#20

Unit parts diagram

Nut

Part #25229

The manufacturer no longer makes this part, and there's no substitute part

Strain Relie 29537
#56

Unit parts diagram

Strain relie

Part #29537

The manufacturer no longer makes this part, and there's no substitute part

Washer 27218
#46

Unit parts diagram

Washer

Part #27218

The manufacturer no longer makes this part, and there's no substitute part

Cordkit 22079
#59

Unit parts diagram

Cordkit

Part #22079

The manufacturer no longer makes this part, and there's no substitute part

Motor 29623
#53

Unit parts diagram

Motor

Part #29623

The manufacturer no longer makes this part, and there's no substitute part
