Model # LC-52LC6400U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-52LC6400U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Tray Shaft NSFTZA459WJF7
#19

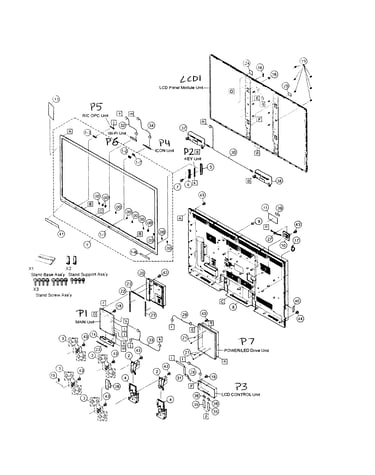

Cabinet parts diagram

Tray shaft

Part #NSFTZA459WJF7

The manufacturer no longer makes this part, and there's no substitute part

Speaker,r RSP-ZA539WJQZ
#37

Cabinet parts diagram

Speaker,r

Part #RSP-ZA539WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Key Pcb DUNTKF800FM53
#P2

Cabinet parts diagram

Key pcb

Part #DUNTKF800FM53

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord QACCDA084WJPZ
#26

Cabinet parts diagram

Television power cord

Part #QACCDA084WJPZ

The manufacturer no longer makes this part, and there's no substitute part

Spacer PSPAZC691WJZZ
#23

Cabinet parts diagram

Spacer

Part #PSPAZC691WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Icon Pcb DUNTKG014FM01
#P4

Cabinet parts diagram

Icon pcb

Part #DUNTKG014FM01

The manufacturer no longer makes this part, and there's no substitute part

Terminal Angle LANGKD146WJFW
#13

Cabinet parts diagram

Terminal angle

Part #LANGKD146WJFW

The manufacturer no longer makes this part, and there's no substitute part

Television Screw And Washer XBPS830P06WS0
Television screw and washer

Part #XBPS830P06WS0

The manufacturer no longer makes this part, and there's no substitute part

Wifi Label TLABZD048WJZZ
#1-7

Cabinet parts diagram

Wifi label

Part #TLABZD048WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Television Remote Control Electronic Control Board DUNTKG015FM01
#P5

Cabinet parts diagram

Television remote control electronic control board

Part #DUNTKG015FM01

The manufacturer no longer makes this part, and there's no substitute part
